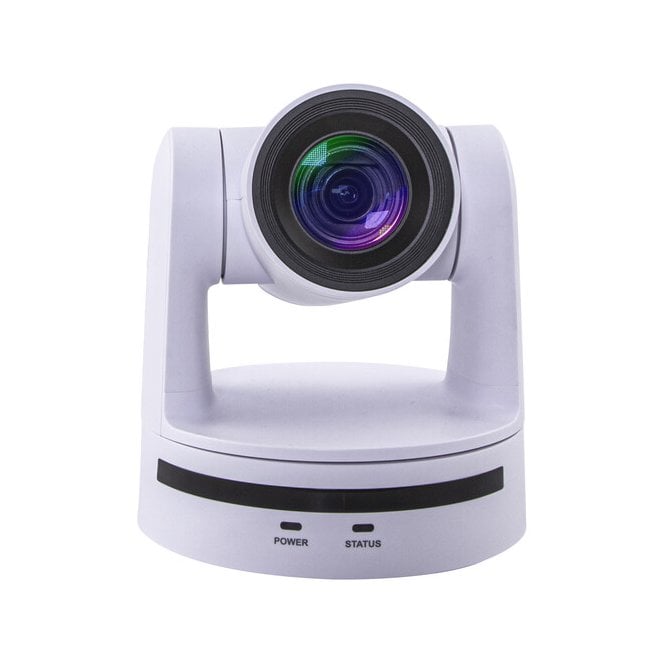

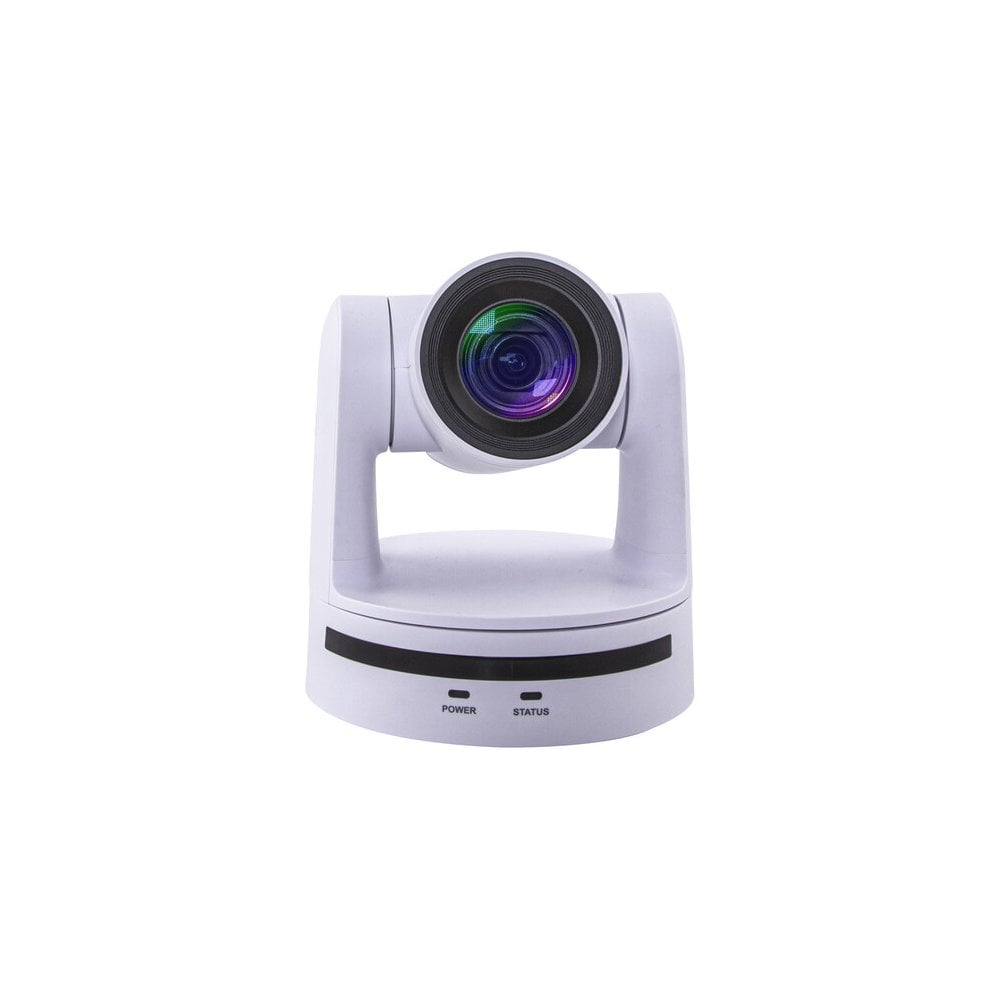

Marshall HD PTZ Camera with 3mm-15mm 5x Zoom Lens - White

Marshall CV605-U3W (CV605/U3W, CV605_U3W, CV605U3W, CV605 U3W) HD PTZ Camera with 3mm-15mm 5x Zoom Lens - White

The CV605-U3 features a wide-angle 5x optical zoom lens with 10x digital zoom, and it incorporates a 1/2.8" 2.07MP CMOS sensor for clear HD output with superior low-light performance and video output up to 1080p60. The camera utilizes a high-speed, quiet motor with a ±135° pan range and a ±30° tilt range. Using IP or RS-232 control, you can program up to 255 preset positions which can also incorporate preset exposure, white balance, and picture style, and you can program up to 10 presets using the included IR remote.

The camera outputs video and embedded audio to USB Type-C, HDMI, and RJ45, and the Ethernet output supports RTSP/RTMP streaming, control, and PoE (Power-over-Ethernet) so you can connect to the camera with only a single cable. You can also input audio for embedding using the 3.5mm analog audio input.

Ultra-Wide 85° Horizontal Angle of View

• The wide-angle optical zoom lens offers an impressive 85° horizontal angle-of-view (wide open) with minimal distortion. The 5x optical zoom ranges from 3 to 15mm focal length (F1.8 to 2.8 aperture) and it features an additional 10x digital zoom.

Flexible USB Type-C + HDMI + IP options

• The CV605-U3 offers a USB Type-C connection for video conferencing, collaboration, and streaming via a computer connection. HDMI opens a wide range of options with HDMI workflows, and IP provides an easy one-cable to camera setup and operation.

Zoom Certified

• The CV605-U3 PTZ camera is certified by Zoom and operates within the Zoom Room infrastructure seamlessly providing a wide-angle, high-quality video source for any Zoom video conference.

Low-Light Sensitivity

• The CV605-U3 PTZ camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including video conference, live streaming, live podcast, and other applications with challenging light sources.

One Cable to Camera

• One cable to camera can provide video, audio, control, and power (PoE) over one cable with IP (H.265/H.264) and HDMI simultaneous outputs with audio embedding.

Privacy Standby Mode

• The CV605-U3 PTZ camera contains a standby mode for privacy between video calls. Managing what is being streamed over the Internet is paramount to protect intellectual properties and proprietary information while not in video meetings.

Image Sensor

• Image Sensor: 1-Chip 1/2.8" CMOS Sensor
• Sensor Resolution: Effective: 2.07 Megapixel
• Signal-to-Noise Ratio: 55 dB
• Minimum Illumination: 0.5 Lux

Camera

• Max Digital Zoom: 10x
• Built-In Speaker: No
• IR Cut Filter: No
• Built-In ND Filter: None
• Flip / Mirror Support: Image Flip, Mirror (Vertical)

Lens

• Optical Zoom Ratio: 5x
• Focal Length: 3.1 to 15.5mm
• Field of View: Horizontal: 16.43 to 83.7°
• Maximum Aperture: f/1.8 to 11
• Focus Control: Autofocus, Manual Focus

Video Output

• Output Formats: HDMI: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps, 1280 x 720p at 50, 59.94, 60 fps, RJ45: 1920 x 1080p1600 x 896p1280 x 720p1024 x 768p1024 x 576p960 x 540p800 x 600p800 x 448p720 x 576p720 x 480p640 x 360p640 x 480p480 x 270p320 x 180p, USB: 1920 x 1080p1280 x 720p1024 x 576p800 x 600p800 x 448p640 x 480p640 x 360p480 x 270p320 x 180p
• Embedded Audio: HDMI/USB Type-C
• IP Streaming: H.264, MJPEG, ONVIF, RTMP, RTSP: 1080p, 720p, 480p, 360p

Control

• Presets: 255 via IP, RS-232, VISCA 10 via IR
• Move Speed: Pan: 0.1 to 60°/sec, Tilt: 0.1 to 30°/sec
• Movement Range: Pan: 270° (-135 to 135°), Tilt: 60° (-30 to 30°)
• Tally Light: No
• Supported Control Protocols: IP
• IR: Pelco-D, Pelco-P, RS-232, VISCA

Interfaces

• Video Output Connectors: 1 x HDMI Type A (HDMI 1.0) Female, 1 x USB 3.0 Type-C (USB Video) Female, 1 x RJ45 Female
• Audio I/O: 1 x 1/8" / 3.5 mm Stereo Mic Level Input
• Control Interface: 1 x RJ45 (RS-232) Input, 1 x RJ45 (IP Control, LAN) Input, 1 x USB 3.1 Type-C (UVC 1.5) Input

Power

• PoE Support: Yes
• Power Connectors: 1 x Barrel / Coaxial (12 VDC at 1 A)
• Power Consumption: Power Supply: 110 to 220 VAC at 1.5 A (12 W)

Environmental

• Operating Temperature: 14 to 122°F / -10 to 50°C
• Storage Temperature: 14 to 140°F / -10 to 60°C
• Operating Humidity: 20 to 80%
• Storage Humidity: 20 to 95%

General

• Dimensions: 6.1 x 5.8 x 5.7" / 154 x 147 x 145.4 mm
• Weight: 1.29 kg

In The Box

• 1x Marshall CV605-U3W Camera Body (White)
• 1x IR Remote Control
• 1x Power Adapter
• 1x USB Type-C Cable
