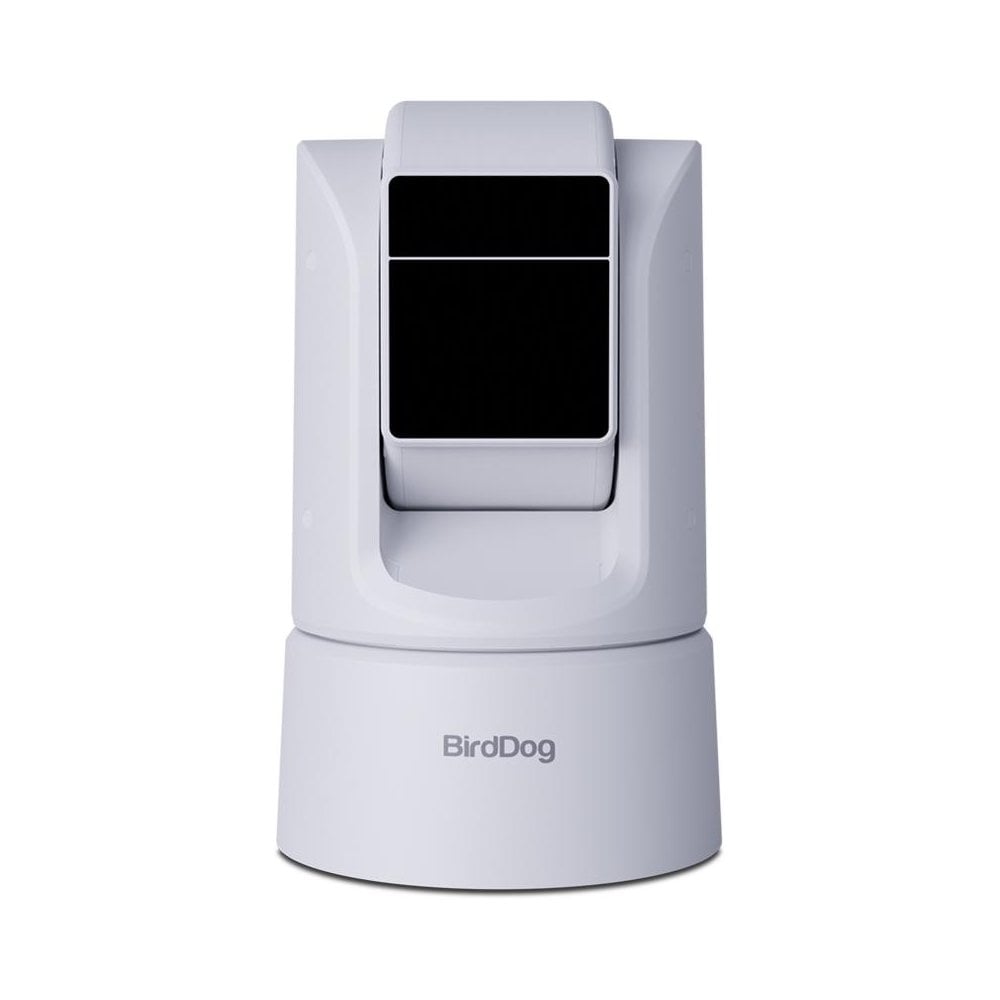

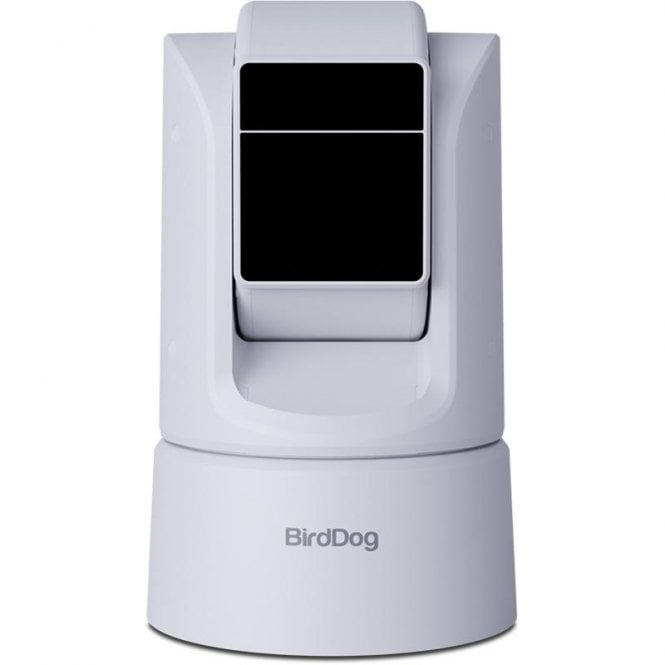

BirdDog O4 Outdoor 4K PTZ Camera - White

BirdDog BDO4W (BD-O4W, BD/O4W, BD_O4W, BD O4W) O4 Outdoor 4K PTZ Camera - White

The BirdDog O4 is a professional-grade outdoor PTZ camera built to deliver reliable performance where conventional systems fall short. Its rugged die-cast, IP66-rated housing is engineered for extreme environments, operating flawlessly between –40 °C and +60 °C. A built-in heater prevents condensation, while hydrophobic, smudge-resistant lens coatings ensure clear optics without the need for wipers—guaranteeing uninterrupted operation in rain, dust, snow, or heat.

Built for image excellence, the O4 features a 1/1.8" CMOS sensor capable of capturing 4K60 with exceptional color accuracy, flexible gamma, exposure, and wide dynamic range controls. A 30× optical zoom (extendable to 60× in HD) enables precise long-range coverage, while a 500 m infrared laser combined with automatic B/W night mode ensures visibility even in complete darkness.

Installation is streamlined with a sealed undercarriage design that conceals all cabling, incorporating built-in strain relief and three weatherproof flanges. Power options include PoE++ for simplified single-cable setups or external DC input. Connectivity is versatile, offering 12G-SDI, HDMI, and SFP+ fiber to accommodate IP, hybrid, and baseband workflows. The advanced streaming architecture supports simultaneous Full NDI® and NDI® HX3, alongside dual streaming of NDI with SRT, RTMP, or RTSP for maximum workflow flexibility.

AI-powered autotracking provides customizable motion profiles—fast and responsive for sports or smooth and controlled for events and worship—delivering natural, human-like framing. Fully integrated into the BirdDog ecosystem, O4 works seamlessly with BirdUI, Central, Connect, and the BirdDog Keyboard (KBD), and is firmware-ready for NDI 6.2.

From stadiums and smart-city surveillance to perimeter security, outdoor worship, and large-scale live productions, the BirdDog O4 combines all-weather durability with broadcast-quality imaging and installer-friendly design. It is outdoor production, redefined.

Imaging

• Image Sensor: 1/1.8"-Type CMOS
• Horizontal Resolution (TV Lines): 2160 TV Lines
• Sensor Resolution: Effective: 8.4 Megapixel
• IR Cut Filter: No
• Focus Control: Autofocus, Manual Focus

Exposure Control

• Precise Scan Rate Control: No
• Signal-to-Noise Ratio: 50 dB
• White Balance: Presets: Auto, Color Temperature, Indoors, Manual, One Push, Outdoors

Lens

• Focal Length: 6.9 to 215mm
• Max Optical Zoom: 30x
• Max Digital Zoom: 8x
• Field of View: Horizontal: 60 to 2°, Vertical: 34 to 1.1°, Diagonal: 67 to 2.3°
• Maximum Aperture: f/1.35 to 4.6

Video Capture

• Video Output: HDMI / RJ45 / SDI/BNC, 3840 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps, 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps, 1920 x 1080i at 50/59.94/60.00 fps, 1280 x 720 at 25/29.97/30.00 fps
• Broadcast Output: NTSC/PAL
• Supported Protocols: Camera Control Protocol IP/NDI/VISCA
• IP Streaming: Dante AV-H/NDI/NDI HX2/NDI HX3/RTMP/RTSP/SRT, 3840 x 2160

Control

• Presets: 255
• Pan/Tilt: Pan: 170° (-30 to 90°) at 0.05 to 90°/s , Tilt: 170° (-30 to 90°) at 0.05 to 90°/s

Interface

• Video I/O: 1x BNC (12G-SDI) Output, 1x RJ45 Output
• Audio I/O: 1x 1/4" TRS Unbalanced Stereo Input/Output
• Other I/O: 1x SFP (Gigabit Ethernet), 1x RJ45 (Gigabit Ethernet) (Shared with Power Input)
• Built-In Microphone: No
• Built-In Speaker: No

Power

• PoE Support: PoE++ 802.3bt
• Power I/O: 1x DC (24VDC at 2.1 A)
• Power Consumption: 40 W

Environmental

• Operating Conditions: -40 to 140°F / -40 to 60°C
• Impact Resistance: No
• Environmental Resistance: No

General

• Color: White
• Dimensions (W x H x D): 7.9 x 13 x 8.9" / 200 x 330 x 226 mm
• Weight: 7.6 kg (Body Only)

In The Box

• BirdDog O4 Outdoor 4K PTZ Camera - White
