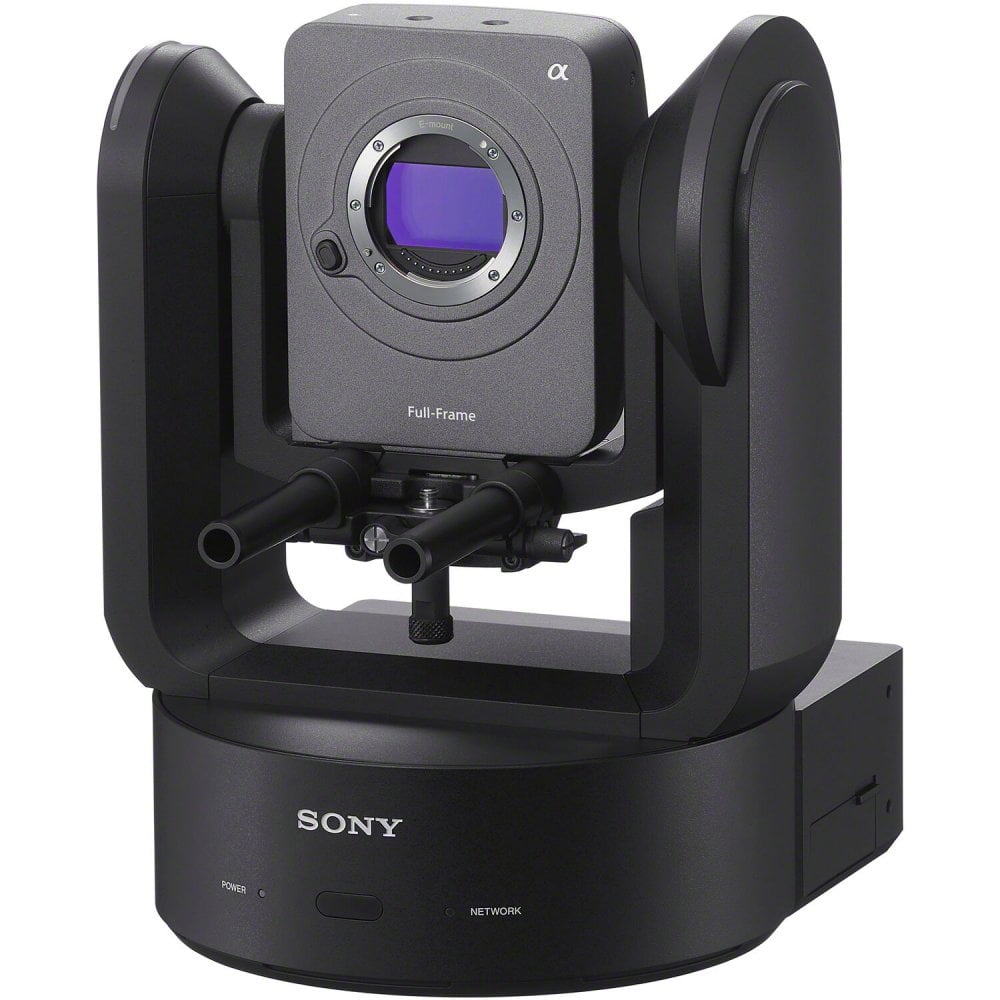

Sony FR7 Cinema Line Full-Frame PTZ camera

Sony ILME-FR7 (ILME/FR7, ILME_FR7, ILMEFR7, ILME FR7) FR7 Cinema Line Full-Frame PTZ camera

The FR7 provides smooth pan, tilt and zoom (PTZ) control coupled with a full-frame image sensor and a high-quality E-mount lens line-up. Focal length and shallow depth of field provide creative freedom and combine with remote PTZ control capability to open a new world of creative potential.

Remote control for creative camera placement

With its integrated, remotely controllable pan and tilt mechanism, the FR7 can be mounted on the ceiling or in other out-of-the-way locations. Follow your subjects or instantly recall pre-composed shot framings, for unprecedented creative potential.

Innovative remote control

With a newly developed Web App that enables easy access via QR code or URL input, you can set up the FR7 from a tablet or a PC through a web browser. You can also use the optional RM-IP500 for precise joystick-controlled pan, tilt and zoom operation.

Advanced technology for cinematic expression

Bearing the Cinema Line name, the FR7 incorporates key features that support cinematic expression. The FR7 features a back-illuminated 35 mm full-frame CMOS image sensor for the first time in a pan, tilt and zoom (PTZ) camera. Also the BIONZ XR™ contributes to superb image quality with high sensitivity, smooth gradations, and true-to-life colour.

Limitless creativity with E-mount lenses

The FR7 features Sony's E-mount and can be used with all E-mount lenses. These include the superlative G Master series, known for its stunning resolution and beautiful bokeh. A choice of focal lengths ranging from 12 mm to 1200 mm gives you comprehensive creative control.

Cinema Line image quality

The FR7's "Cinema Line" name identifies it as part of a renowned line-up of creative tools designed to unleash the true power of visual storytelling. It provides Custom and Cine EI modes that adjust camera operation to your workflow while maintaining consistency with other Cinema Line cameras.

Staggering latitude for powerful expression

The FR7 offers wide 15+ stop latitude to prevent blown highlights and crushed shadows. In Cine EI mode, base sensitivity can be set to either ISO 800 or 12800 for a consistent look regardless of lighting conditions.

Astounding image quality in low light

The FR7 offers cleaner images in low light by taking full advantage of the sensor’s size and high sensitivity. ISO can be expanded as far as ISO 409600 when shooting in extremely low light conditions such as live concerts.

Slow motion for extensive creative possibilities

Smooth 5x slow motion provides extensive creative possibilities, making every moment clearer and more dramatic. The FR7 allows internal slow-motion capture at up to 120 fps in 4K resolution, and up to 240 fps in full HD.

4K 60p 4:2:2 10-bit output

The FR7 supports clean, high-quality output via its HDMI and SDI OUT connectors. This makes it possible to record Apple ProRes 422 or Avid DNxHR® in 4K 60p 4:2:2 10-bit format with compatible external recorders via an HDMI or SDI cable.

Support for S-Log3/S-Gamut3

The optional S-Log3 gamma curve and S-Gamut3.Cine let you capture the full colour gamut and dynamic range available to the sensor. They enable the retention of information in both highlights and shadows for flexibility in post-production.

All-Intra recording for precise motion capture

The FR7 is capable of 4K internal recording with 10-bit depth and 4:2:2 colour sampling with All-Intra and Long-GOP compression. This makes it possible to push your colour grades further while still retaining natural gradation, for true editing freedom.

An instant cinematic look with S-Cinetone™

S-Cinetone produces the natural mid-tones essential to healthy-looking skin, plus soft colours and gorgeous highlights. Beautiful cinematic images can be created in-camera, without extra colour grading.

A wide variety of lenses to deliver your vision

The FR7 features Sony's E-mount and can be used with high-quality E-mount lenses, including the superlative G Master series, known for its stunning resolution and softly dissolving bokeh. A choice of focal lengths ranging from 12 mm to 1200 mm gives you full creative control.

Exquisite, impressive bokeh

Taking advantage of the camera's full-frame sensor and Sony’s extraordinary line-up of lenses, you can create expressive bokeh effects with a shallow depth of field – an impossibility with other PTZ cameras. Using a prime lens such as an F1.2 lens will help achieve cinematic-style visual effects where the subject stands out from the background dramatically.

The advantages of Sony’s lenses for video shooting

The best camera deserves the best lenses. Discover four unique advantages in using Sony’s E-mount lenses for video shooting. The combination of Sony's lenses and the FR7 will enhance your video creation experience.

Lens support rods

Two lens rods provided below the camera head allow attachment of standard 15 mm rod mountable accessories.

Capture the scene from any angle

The FR7 incorporates smooth pan, tilt and zoom functionality that can be remotely controlled, or recalled to preset positions. The pan angle range is from -170° to +170°, and the tilt angle range is from -30° to +195° when used in normal upright orientation.

A full-featured dedicated Web App

With a new dedicated Web App, you can use a tablet or a computer's web browser to pan, tilt, zoom, focus, record, and adjust all camera settings. You can access cameras in hard-to-reach locations with easy setup using each camera’s unique QR code. The Web App uses the same menu format as the FX6 for intuitive operation.

High-performance remote controller RM-IP500

The FR7 can be paired with Sony's RM-IP500 remote controller for PTZ cameras, providing precise joystick-controlled pan, tilt and zoom operation. Speed adjustment knobs let you set the speed of pan, tilt, zoom and focus operations suitable for the subject and setting. Zoom can be controlled either via the joystick or a seesaw lever.

Expand your creative options

The FR7 supports multi-camera production with just a small staff. It can be mounted on a tripod, on the ceiling, or in limited-access locations so that subjects can be unobtrusively followed and recorded from a range of viewpoints. A single RM-IP5002 remote control unit can be used for a setup of up to 100 FR7 cameras (10 groups of 10 cameras)

Fine-tuned control over camera movement

Pan and tilt speed can be continuously varied from 0.02 degrees per second to 60 degrees per second, for flexible subject tracking and production scenarios.

Up to 100 preset camera positions

The supplied remote controller, dedicated FR7 Web App and RM-IP500 can remember up to 100 camera presets (camera direction, zoom and focus). Presets can be recalled at the touch of a button.

Clear Image Zoom3 to refine your angle of view

The FR7 includes Sony's Clear Image Zoom function, giving you the option to zoom into your subject with minimal image degradation even when using a non-powered zoom lens or prime lens.

Reliable autofocus for remote shooting

For remote setting, the FR7 locks onto fast-moving subjects quickly and tracks them tenaciously even in low light, using 627 selectable phase-detection AF points and the powerful BIONZ XR processor.

Real-time Tracking for remote shooting

Concentrate on composition and leave focusing up to the camera. In the FR7’s Web App, Touch Tracking starts autofocus for your chosen subject, complete with Real-time Tracking for professional and efficient production

Real-time Eye AF for remote shooting

Underpinned by the BIONZ XR processor, the FR7 offers reliable AF performance, indispensable for remote shooting. Pinpoint eye focus tracks an eye even when subjects are looking up or down at a steep angle.

Electronic Variable ND Filter for smooth remote operation

Sony's built-in electronic variable ND (neutral density) filter allows exposure control at a distance, for smooth operation in a remote setup. It allows seamless ND adjustment from 1/4 to 1/128 to control exposure remotely, and depth of field can be conveniently controlled while maintaining a consistent exposure.

Breathing compensation

The FR7 includes a Breathing Compensation function that minimises unwanted changes in angle of view, for better looking focus transitions. With compatible lenses, the angle of view is automatically kept consistent even when focusing, making it possible to achieve smooth and dramatic focusing effects

Tally lights to facilitate multi-camera production

The FR7's red and green tally lights make it easy to identify which camera is currently active (on-air) in a multi-camera setup. A red tally light can identify the on-air camera while a green tally light indicates the preview camera.

Supplied infrared remote controller

The infrared remote controller included with the FR7 controls pan, tilt, zoom and focus (with presets available) as well as recording and playback.

Dedicated ceiling mount bracket CIB-PCM

The FR7 is compatible with the CIB-PCM ceiling mount bracket2 for easy overhead setup. The "Ceiling" option in the Web App flips the control directions, for natural operation even with the camera mounted upside down.

Interfaces and IP transmission methods for a wide range of use cases

The FR7 provides excellent connectivity for video output, IP streaming, and synchronisation with other devices. HDMI video output can be used for real-time monitoring, while SDI video output delivers a RAW signal to an external recording device. Camera control, video and audio transfer, and power supply can be carried out via a single LAN cable.

Connecting to external devices

Easily connect to external devices to provide timecode synchronisation, control tally light signals, and coordinate synchronisation signals in multi-camera setups.

TC IN connector

Receives timecode from an external device to be used for synchronisation.

"Option" connector

Connects tally light signals to an external device.

GENLOCK connector

Receives synchronisation signals from an external device for use in multi-camera setups.

LAN and PoE++ connector

The FR7 can be powered with an external PoE++ (Power over Ethernet Plus Plus) device via a standard network cable (CAT5e or higher), eliminating the need for separate power supply cabling.

DC IN connector

If not using PoE++, the supplied AC adaptor connects to the FR7's "DC IN" connector to power the unit. The cord clamp on the rear panel of the FR7 can be used to prevent the power cable from being accidentally unplugged.

Support for multiple protocols to meet your streaming needs

RTSP streaming allows video output from one camera to be simultaneously distributed to up to five viewers. SRT enables high-quality, low-latency video transfer even in unstable network conditions. And NDI|HX connects to NDI compatible devices such as switchers and media servers, supporting efficient live video production using Internet protocols.

General

• LENS MOUNT: E-mount
• Size & Weight
• WEIGHT (MAIN UNIT ONLY) (APPROX.): Approx. 4.6 kg (10 lb 2.3 oz.) (body only)
• DIMENSIONS (W X H X D) (BODY WITHOUT PROTRUSIONS) (APPROX.): Approx. 227 x 289 x 233 mm (9 x 11 1/2 x 9 1/4 inch) (body without protrusions)

Power

• POWER REQUIREMENTS: DC 19.5 V, PoE++ (IEEE802.3bt Type 4 Class 8 comliant) 41.1 V～57.0 V
• POWER CONSUMPTION: ≦80 W (DC 19.5 V) / ≦71.3 W (PoE++)

Operation

• OPERATING TEMPERATURE: 0 °C to 40 °C (32 °F to 104 °F)
• STORAGE TEMPERATURE: -20 °C to +60 °C (-4 °F to +140 °F)
• CEILING MOUNT: Yes (with Ceiling Bracket option)
• TALLY LAMP: Left (x1)/Right (x1), Red/Green

Recording Format(Video)

• XAVC INTRA: XAVC-I DCI4K 59.94p mode: VBR, MAX bit rate 600 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 50p mode:VBR, MAX bit rate 500 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 29.97p mode:VBR, MAX bit rate 300 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 25p mode:VBR, MAX bit rate 250 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 24p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 23.98p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 59.94p mode:VBR, MAX bit rate 600 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 50p mode:VBR, MAX bit rate 500 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 29.97p mode:VBR, MAX bit rate 300 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 25p mode:VBR, MAX bit rate 250 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 23.98p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 59.94p mode:CBG, MAX bit rate 222 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 50p mode:CBG, MAX bit rate 223 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 29.97p mode:CBG, MAX bit rate 111 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 25p mode:CBG, MAX bit rate 112 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 23.98p mode:CBG, MAX bit rate 89 Mbps, MPEG-4 AVC/H.264
• XAVC LONG: XAVC-L QFHD 29.97p/25p/23.98p mode:VBR, MAX bit rate 100 Mbps, MPEG-4 H.264/AVC, XAVC-L QFHD 59.94p/50p mode:VBR, MAX bit rate 150 Mbps, MPEG-4 H.264/AVC, XAVC-L HD 29.97p/25p/23.98p/59.94p/50p mode:VBR, MAX bit rate 50 Mbps, MPEG-4 H.264/AVC, XAVC-L HD 29.97p/25p/23.98p/59.94p/50p mode:VBR, MAX bit rate 35 Mbps, MPEG-4 H.264/AVC

Recording Format (Audio)

• RECORDING FORMAT (AUDIO): LPCM 24 bits, 48 kHz, 4 channels

Recording Frame Rate

• XAVC INTRA: XAVC-I DCI4K mode:4096 x 2160/59.94p, 50p, 29.97p, 23.98p, 25p, 24p, XAVC-I QFHD mode:3840 x 2160/59.94p, 50P, 29.97p, 23.98p, 25p, XAVC-I HD mode:1920 x 1080/59.94p, 50p, 29.97p, 23.98p, 25p
• XAVC LONG: XAVC-L QFHD mode:3840 x 2160/59.94p, 50p, 29.97p, 23.98p, 25p, XAVC-L HD 50 mode:1920 x 1080/59.94p, 50p, 29.97p, 23.98p, 25p, XAVC-L HD 35 mode:1920 x 1080/59.94p, 50p, 29.97p, 23.98p, 25p

Recording/Playback Time

• XAVC INTRA: XAVC-I DCI4K/QFHD 59.94p When using CEA-G160T (160 GB) Approx. 30 minutes When using CEA-G80T (80 GB) Approx. 15 minutes, XAVC-I DCI4K/QFHD 50p When using CEA-G160T (160 GB) Approx. 36 minutes When using CEA-G80T (80 GB) Approx. 17 minutes, XAVC-I DCI4K/QFHD 29.97p When using CEA-G160T (160 GB): Approx. 60 minutes When using CEA-G80T (80 GB) Approx. 29 minutes, XAVC-I DCI4K/QFHD 25p When using CEA-G160T (160 GB): Approx. 71 minutes When using CEA-G80T (80 GB) Approx. 35 minutes, XAVC-I DCI4K 24p When using CEA-G160T (160 GB): Approx. 74 minutes When using CEA-G80T (80 GB) Approx. 36 minutes, XAVC-I DCI4K/QFHD 23.98p When using CEA-G160T (160 GB): Approx. 74 minutes When using CEA-G80T (80 GB) Approx. 36 minutes, XAVC-I HD 59.94p When using CEA-G160T (160 GB): Approx. 78 minutes When using CEA-G80T (80 GB) Approx. 38 minutes, XAVC-I HD 50p When using CEA-G160T (160 GB): Approx. 78 minutes When using CEA-G80T (80 GB) Approx. 38 minutes, XAVC-I HD 29.97p When using CEA-G160T (160 GB): Approx. 150 minutes When using CEA-G80T (80 GB) Approx. 74 minutes, XAVC-I HD 25p When using CEA-G160T (160 GB): Approx. 150 minutes When using CEA-G80T (80 GB) Approx. 74 minutes, XAVC-I HD 23.98p When using CEA-G160T (160 GB): Approx. 185 minutes When using CEA-G80T (80 GB) Approx. 91 minutes
• PROXY AUDIO: XAVC Proxy: AAC-LC, 128 kbps, 2 channels
• PROXY VIDEO: XAVC Proxy: AVC/H.264 High Profile 4:2:0 Long GOP, VBR 1920 x 1080, 9 Mbps
• XAVC LONG: XAVC-L QFHD 29.97p/25p/23.98p When using CEA-G160T (160 GB): Approx. 170 minutes When using CEA-G80T (80 GB) Approx. 86 minutes, XAVC-L QFHD 59.94p/50p When using CEA-G160T (160 GB): Approx. 115 minutes When using CEA-G80T (80 GB) Approx. 57 minutes, XAVC-L HD 50 /29.97p/25p/23.98p/59.94p/50p When using CEA-G160T (160 GB): Approx. 320 minutes When using CEA-G80T (80 GB) Approx. 155 minutes, XAVC-L HD 35 29.97p/25p/23.98p/59.94p/50p When using CEA-G160T (160 GB): Approx. 430 minutes When using CEA-G80T (80 GB) Approx. 210 minutes

Camera Section

• SENSOR TYPE: 35mm full frame (35.6 x 23.8 mm), Exmor R CMOS sensor
• PIXELS: Approx. 12.9 megapixels (total), Approx. 10.3 megapixels (effective)
• BUILT-IN OPTICAL FILTERS: Clear, linear variable ND (1/4ND to 1/128ND)
• SENSITIVITY: ISO 800/12800 (Cine EI mode, D55 Light source)
• SHUTTER SPEED: 64 frame to 1/8000 sec.

Slow & Quick Motion

• XAVC-I: 4096 x 2160: 1 to 60 frames (59.94/50/29.97/25/24/23.98)
• XAVC-I/L: 3840 x 2160: 1 to 60, 100, 120 frames (59.94/50/29.97/25/23.98), 1920 x 1080: 1 to 60, 100, 120, 150, 180, 200, 240 frames (59.94/50/29.97/25/23.98)

White Balance

• WHITE BALANCE MODES: Preset, Memory A (2000K-15000K)/ATW

Exposure

• GAIN CONTROL: -3 to 30 dB (every 1dB), AGC

Gamma

• GAMMA CURVE: SDR Mode: S-Cinetone, Standard, Still, ITU709 / HDR mode : HLG_Live, HLG_Natural

Latitude

• LATITUDE: 15+ stop

Focus System

• TYPE: Fast Hybrid AF (phase-detection AF / contrast-detection AF)
• FOCUS POINT: 627 points
• FOCUS AREA: Wide / Zone / Flexible Spot
• OTHER FOCUS FEATURES: Eye AF (Human), Real-time Tracking AF, AF Subj. Shift Sensitivity, AF Transition Speed, Face detection (Face/Eye Priority, Face/Eye Only AF)

Pan/Tilt

• PAN/TILT ANGLE: Pan: -170 deg.~170 deg., Tilt: -30 deg.~195 deg.,
• PAN/TILT SPEED: Pan: 0.02 deg.~60 deg./s, Tilt: 0.02deg.~60 deg./s
• PAN/TILT OPERATION NOISE: NC35 or less

Other Features

• PRESET POSITION: 100
• CLEAR IMAGE ZOOM: QFHD/4K: 1.5x, HD: 2x

WebAPP

• SUPPORTED OPERATION SYSTEMS: Windows 10 or later, macOS 10.15 or later, iPadOS 15 or later, Android 12 or later
• SUPPORTED WEB BROWSERS: Windows: Google Chrome, Mac: Google Chrome/Safari, iPad: Google Chrome/Safari, Android: Google Chrome

Interface

• TC INPUT/TC OUTPUT: BNC (x1), TC IN only
• AUDIO INPUT: XLR-type 5-pin (female) (x1) line/mic/mic +48 V selectable, Mic Reference: -30 to -80 dBu
• SDI OUTPUT: BNC (x1), 12G-SDI, 6G-SDI, 3G-SDI(Level A/B), HD-SDI
• DC INPUT: DC jack (x1)
• HDMI OUTPUT: Type-A connector (x1)
• REMOTE: RJ-45(OPTION) (x1), Red Tally IO/Green Tally IO
• GENLOCK INPUT: BNC (x1), 1.0 Vp-p, 75 Ω
• OPTICAL OUTPUT: SFP+ comliant 1
• NETWORK: RJ-45(LAN) (x1), 1000BASE-T
• IR REMOTE CONTROL: Yes

Output Format

• SDI: 4096 x 2160: 59.94p, 50p, 29.97p, 25p, 24p, 23.98p / 3840 x 2160: 59.94p, 50p, 29.97p, 25p, 23.98p / 1920 x 1080 : 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 24p, 23.98p, 29.97PsF, 25PsF
• HDMI: 4096 x 2160: 59.94p, 50p, 29.97p, 25p, 24p, 23.98p / 3840 x 2160: 59.94p, 50p, 29.97p, 25p, 23.98p / 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 24p, 23.98p / 720 x 480: 59.94p / 720 x 576: 50p

Media

• MEDIA TYPE: CFexpress Type A / SD card (x2)

Network/IP Streaming

• PROTOCOLS (IPV6): TCP, UDP, ICMPv6, HTTP, HTTPS, DHCPv6, DNS, mDNS, RTP/RTCP, RTSP, SRT, FTP, FTPS
• PROTOCOLS (IPV4): TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, mDNS, RTP/RTCP, RTSP, VISCA over IP, SRT, NDI|HX, FTP, FTPS
• VIDEO RESOLUTION: 4096 x 2160, 3840 x 2160, 2048 x 1080, 1920 x 1080, 1280 x 720, 640 x 360
• COMPRESSION FORMAT: H.264: High/Main/Baseline Profile, H.265: Main/Main10 Profile
• MAXIMUM FRAME RATE: H.264/H.265: 59.94fps
• BITRATE CONTROL MODE: CBR/VBR
• BITRATE SETTING: 512 Kbps~80 Mbps
• NDI|HX CAPABILITY: Yes, optional

In The Box

• Sony FR7 Cinema Line Full-Frame PTZ camera
• Body cap
• HDMI cable fixing plate
• REMOTE COMMANDER (RMT-RC1)
• AC Adaptor
• Power cord
• Warranty booklet
