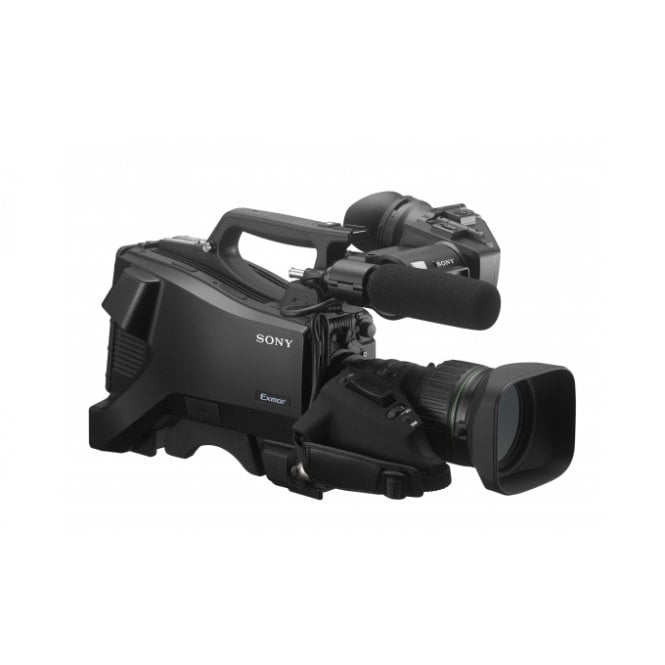

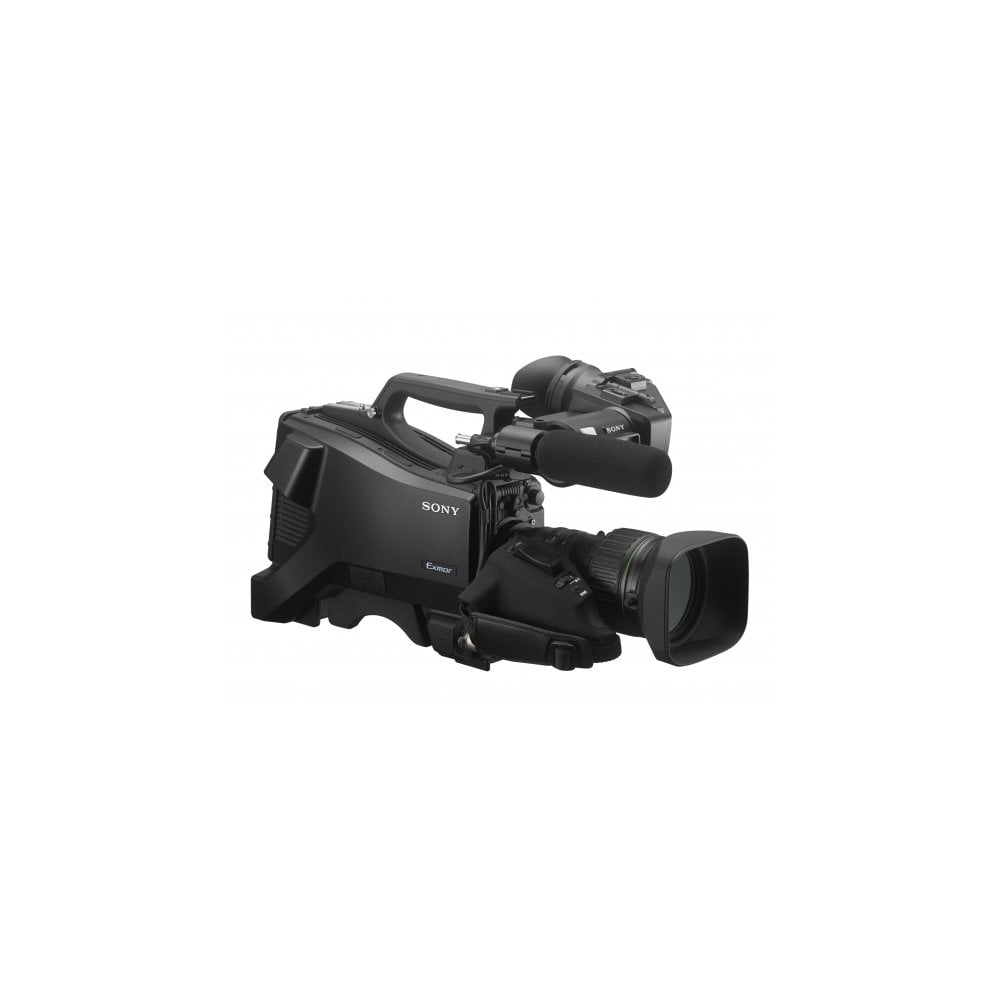

Sony HD Colour Studio Camera + Lemo Fibre Transmission with LCD Viewfinder, Microphone and Lens

Sony HXC-FB80KL//U (HXC_FB80KL//U, HXC/FB80KL//U, HXC FB80KL//U) HD Colour Studio Camera + Lemo Fibre Transmission with LCD Viewfinder, Microphone and Lens

The HXC-FB80 is a cost-effective high-performance HD portable camera with three Sony 2/3-inch Exmor CMOS sensors and a 3G-SDI platform capable of 1080/50p and 59.94p signal processing while achieving low power consumption.

In combination with the HXCU-FB80 4K/HD Camera Control Unit, it offers user-beneficial expandability including 4K upscale and HD HDR support (HLG, Hybrid Log-Gamma) for a future-proof solution. The optional PC-based HZC-RCP5 Remote Control Panel is available for a simpler application system.

Your future proofed 4K live production solution

• The HXC-FB80 gives you a future proofed entry point to the benefits of 4K production. Teamed with the HXCU-FB80 Camera Control Unit, detail-packed 4K resolution (3,840 x 2,160) images are available – making the HXC-FB80 system ideal for creating content in Ultra HD.

Ready for HDR

• Future-proof your content for viewers to enjoy on the fast-growing choice of High Dynamic Range TV sets and display devices. A free firmware update (scheduled summer 2018) enables HD HDR production, with support for HLG (Hybrid Log-Gamma).

Big on picture quality and performance

• The HXC-FB80 offers impressive imaging performance and functionality in a portable camera. It’s an ideal partner for our RCP-1000 series remote control panels – or team with our HZC-RCP5 remote control software for a highly convenient live 5-camera system. You’ll enjoy many advanced features like paint control that are familiar to users of our high-end HDC-series system cameras. And it’s also compatible with appealing options like our latest OLED viewfinders.

Great images in any light

• Incorporating three 2/3-inch Exmor CMOS sensors, the HXC-FB80 offers stunning Full HD picture quality, with a sensitivity of F13 at 1080/50i and a corresponding signal-to-noise ratio of just -60 dB. It’s great for shooting in low light environments, delivering extra detail with extremely low noise.

More format flexibility

• The camera head can comfortably output 3G-SDI signals in a range of formats right up to 1080/50p, with 4K available via the CCU’s 12G-SDI and Quad 3G-SDI interfaces. So you can enjoy maximum production convenience – and your viewers can enjoy the best Full HD picture quality.

General

• Power Consumption: Approx.19W (Camera body only), Approx. 32W (Camera body with supplied viewfinder)
• Operating Temperature: -10°C to +45°C, 14°F to +113°F,
• Storage Temperature: -20°C to +60°C, -4°F to +140°F
• Dimensions (W x H x D) *1: (Body) 160 x 266 x 314 mm, (Body) 6 3/8 x 10 1/2 x 12 3/8 inches, (with Lens&VF) *2 295 x 433 x 571 mm,(with Lens&VF) *2 11 5/8 x 17 1/8 x 22 1/2 inches
• Mass: (Body) Approx. 3.4 kg, (Body) Approx. 7 lb 8 oz, (with Lens&VF) Approx. 6.8 kg
• (with Lens&VF) Approx. 14 lb 16 oz

Camera Section

• Pickup Device: 3-chip 2/3-inch type CMOS
• Effective Picture Elements: 1920 x 1080 (H x V)
• Signal Format: HD: 1080/59.94p, 1080/59.94i, 1080/50p, 1080/50i, 1080/29.97PsF, 1080/25PsF, 1080/23.98PsF, 720/59.94p, 720/50p, SD: 480/59.94i, 576/50i
• Spectrum System: F1.4 prism system
• Lens Mount: Sony 2/3-inch type bayonet mount
• Built-in Filters: CC: Electrical, ND: 1; CLEAR, 2; 1/4ND, 3; 1/16ND, 4; 1/64ND
• Sensitivity (at 2000 lx, 3200K, 89.9% reflectance): F12 (59.94 Hz), F13 (50 Hz)
• Signal-to-noise Ratio: Typical 60dB *3 (1080/59.94i)
• Modulation Depth: HD : 45% or higher at 27.5 MHz (1080i)
• Horizontal Resolution: 1,000 TV lines or higher
• Gain: -3, 0, 3, 6, 9, 12 dB
• Shutter Speed: 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec (59.94i mode)
• Shutter Speed (Slow Shutter (SLS)): 2, 3, 4, 5, 6, 7, 8-frame accumulation (only in 1080 mode at 59.94i/p, 50i/p, 29.97PsF, 25PsF, 23.98PsF)

Input/Output

• Audio Input (CH1): XLR type: 3-pin, female (x1), MIC IN: -60dBu (Up to -20dBu can be set by using menu or HXCU-FB80), balanced, LINE IN: 0dBu, balanced
• Audio Input (CH2): XLR type: 3-pin, female (x1), MIC IN: -60dBu (Up to -20dBu can be set by using menu or HXCU-FB80), balanced, LINE IN: 0dBu, balanced
• Prompter/Genlock: BNC (x1); Gen-Lock In or Prompter Out
• Test Output: TEST Out (Analog output with/without characters), or HD/SD Sync Out
• SDI Input/Output: BNC (x1) SMPTE ST292-1, for HD Prompter Out or HD Video Trunk In
• SDI Output: BNC (x1) SMPTE ST425-1/ST292-1/259M; 3G/HD-SDI or SD- SDI selectable
• CCU: Optical Fiber (x1), CCFN Cable or Single Mode Fiber Cable (LC type)
• Distance of Power Supply: 600m (max.) by CCFN Sony Hybrid Type Fiber Cable (with Portable Lens and HXCU-FB80)
• Distance of Fiber Cable: 10km (max.) by Single Mode Fiber Cable (LC type) with Local Power Supply (with HXCU-FB80)
• Intercom: XLR type: 5-pin, female (x1)
• Earphone Output: Stereo mini jack (x1)
• Lens: 12-pin (x1)
• Viewfinder: 20-pin (1), for HDVF only
• Remote: 8-pin (x1)
• TRUNK Input/Output: TRUNK LINE D-sub 9-pin, female (x1) : RS-232C, or Remote 8pin : RS-422A
• EXT Input/Output: (in TRUNK I/O) D-sub 9-pin, female (x1)
• USB: USB 2.0 (x1)
• DC Input: XLR-type 4-pin (x1), DC 10.5 V to 17 V
• DC Output: 4-pin (x1), DC 10.5 V to 17 V, 1.5 A (max.)

Viewfinder Display

• Screen Size: 155.5 x 87.5mm (7 inch diagonal)
• Aspect Ratio: 16:09
• Picture Elements: 1920(H) x 1080(V) RGB stripe array

Lens

• Lens Mount: 2/3-inch type Sony Bayonet
• Focal Length: 8.2mm (11/32 inches) to 164mm (6 1/2 inches)
• Zoom: Servo/Manual selectable
• Zoom Ratio: 20 x
• Maximum Relative Aperture: 01:01.9
• Iris: Auto/Manual selectable F1.9 to F16 and C (Close)
• Focus: Full manual focus 900 mm to ∞ (MACRO OFF) 10 mm to ∞ (MACRO ON, Wide)
• Filter Thread: M82 mm, pitch 0.75 mm
• Macro: On/Off switchable

In the box

• 1x Sony HXC-FB80
• 1x LCD Viewfinder
• 1x Microphone
• 1x Lens
