Features

  • Three Sony 2/3" Exmor CMOS sensors
  • 3G-SDI output signals including 1080/50p and 59.94p
  • 4K up-scalable and capable of HD HDR (HLG, Hybrid Log-Gamma) if combined with the HXCU-FB80 CCU
  • Supports up to 24 units
  • Distance between the camera head and CCU can be extended up to 1968'
  • Transmission can be extended up to 10km using a local power supply with single-mode fiber cable (SMF)
  • Comes equipped with a number of creative image control features such as MultiMatrix, Skin Tone Detail, Low Key Saturation, Knee Saturation, and ALAC (Auto Lens Aberration Compensation)
  • ND filter can be remotely controlled either by external RCP/RM or via the CCU because of the adopted filter servo motor in the camera head

Sony HXC-FB80HN//U (HXC-FB80HN//U, HXC-FB80HN//U, HXC-FB80HN//U) HD Studio Camera + Neutrik Fibre Transmission

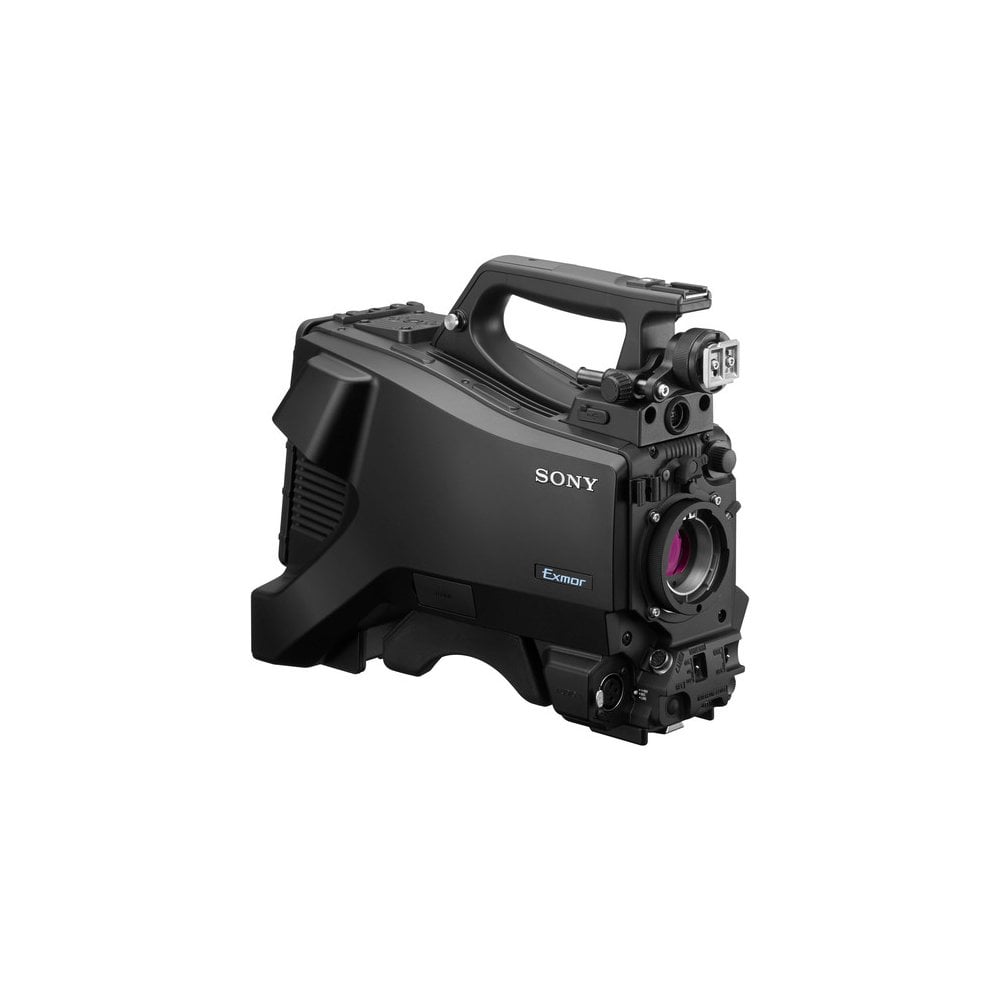

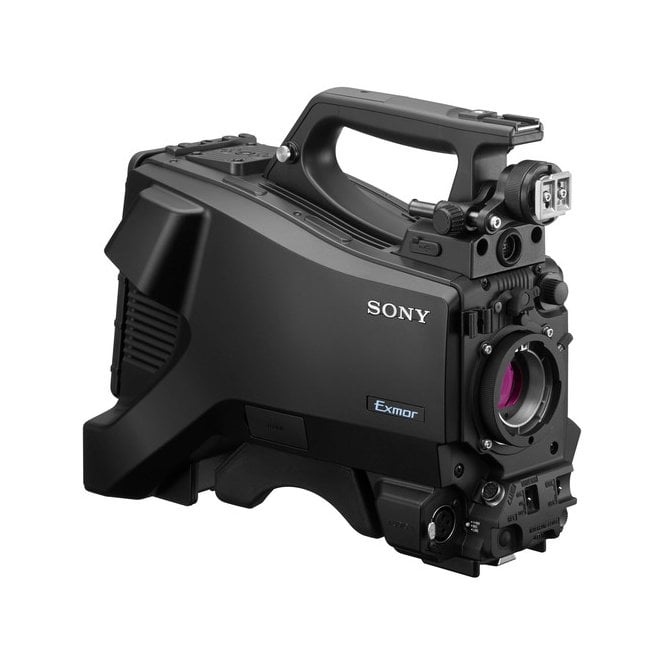

The HXC-FB80HN Studio Camera + Neutrik Fibre Transmission from Sony features three Sony 2/3" Exmor CMOS sensors offering full-HD picture quality. Built on a 3G-SDI platform, the HXC-FB80 is capable of 1080/50p, 59.94p signal processing while maintaining low power consumption. The HXC-FB80 also features 3G-SDI signals including 1080/50p and 59.94p. The processor supports 1080p/23.98sF in addition to 25psF and 29.97psF. Combined with the HXCU-FB80 CCU, the camera's output is 4K up-scalable and capable of HD HDR (HLG, Hybrid Log-Gamma). The HXCU-FB80 CCU provides support for up to 24 units, forming a complete multi camera system. The system design is based on a 3G-HD platform. The camera head can pass an additional 1080i/50, 59.94 signal to the HXCU-FB80 while operating at 1.5G (1080i/50,59.94).

Camera

  • Image Pickup Device: 3-chip 2/3" type CMOS
  • Effective Picture Elements: 1920 x 1080 (H x V)
  • Signal Format: HD: 1080p: 59.94, 50, 29.97sF, 25sF, 23.98sF, 1080i: 59.94, 50, 720p: 59.94, 50, SD: 480i: 59.94, 576i: 50
  • Lens Mount: Sony 2/3" type bayonet mount
  • Sensitivity: F12 (59.94 Hz), F13 (50 Hz) (at 2000 lux, 3200K, 89.9% reflectance)
  • Signal-to-Noise Ratio: Typical 60 dB (1080/59.94i)

Input/Output

  • Audio Input: 2 x XLR Type: 3-pin, female
  • Prompter Output/Genlock Input: 1 x BNC
  • SDI: Input/Output: 1 x BNC SMPTE ST292-1, for HD prompter output or HD video trunk input
  • Test Output: Test output (Analog output with/without characters), or HD/SD Sync Out)
  • SDI Output: 1 x BNC SMPTE ST425-1/ST292-1/259M; 3G/HD-SDI or SD-SDI selectable
  • CCU: (N): 1 x Optical fiber, CCFN cable or single mode fiber cable (LC type)
  • (L): 1 x Optical fiber, LEMO cable
  • Power Supply: Distance of Power Supply with Portable Lens and HXCU-FB80, (N): 1968' (600 m) maximum by CCFN Sony Hybrid Type Fiber Cable, (L): 1968' (600 m) maximum by LEMO cable, Distance of Fiber Cable by Local Power Supply (with HXCU-FB80), (N): 10 km maximum by Single Mode Fiber Cable (LC type)
  • Intercom: 1 x XLR type: 5-pin, female
  • Trunk: Input/Output, TRUNK LINE 1 x D-sub 9-pin, female, RS-232C, or Remote 8-pin, RS-422A
  • Input/Output: EXT 1 x D-sub 9-pin, female (in TRUNK I/O)

General

  • Power Consumption: Approximately 19 W
  • Dimensions (W x H x D): 6.4 x 10.5 x 12.4" (16.2 x 26.6 x 31.5 cm)
  • Weight: 7.5 lb (3.4 kg)


In the box

  • Sony HXC-FB80HN//U HD Studio Camera + Neutrik Fibre Transmission
