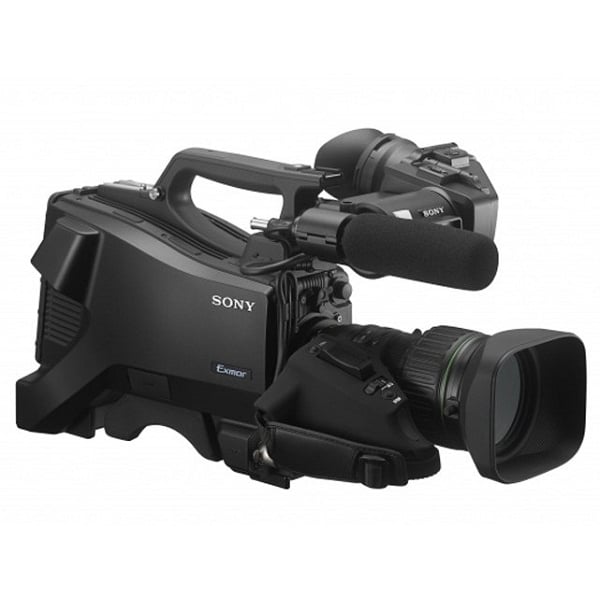

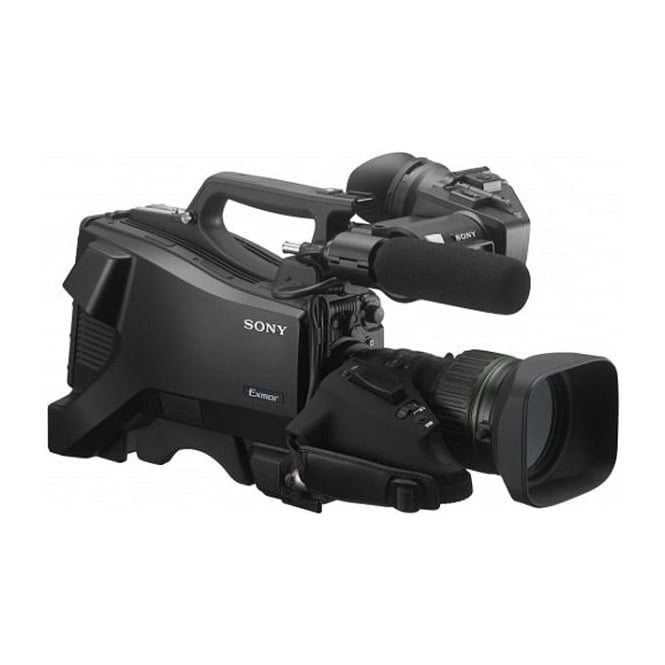

Sony HXC-FB75PK 2/3" Exmor SD/HD Studio Camera with a Fibre CCU

code: HXC-FB75PK
  • £16,665.00
  • RRP: £16,665.00
Status | Usually dispatched within 24 hours

Sony HXC-FB75PK (HXCFB75PK, HXC/FB75PK, hxc-fb75pk) 2/3" Exmor SD/HD Studio Camera with a Fibre CCU

Sony HXC-FB75KC//U 2/3" Exmor SD/HD Studio Camera

The HXC-FB75 is a high-performance, yet affordable, HD camera system that inherits Sony’s proven field-proven operability from the highly regarded DXC-D Series of system cameras. The camera is equipped with three 2/3-inch Full HD Exmor CMOS sensors to provide excellent sensitivity (F12 at 1080i/60) with a low noise ratio for clear images. Those sensors are common to the HXC-P70, HXC-D70 and PXW-X400, and enable perfect integration with those cameras which gives you more flexibility. In addition, a wide range of output formats are available, including 1080i/59.94,50, 1080PsF/29.97,25, 720p/59.94,50, 480i/59.94 and 576i/50. Smooth and precise focusing is enabled by focus assist function and the latest viewfinder options. Video/Audio and control signal transmission, with power, can extend up to 350m via Hybrid Type Optical Fibre Cable. The camera is also controllable from a CCU panel and remote controller.

The HXC-FB75KC camera package is supplied with the HDVF-L10 3.5-inch QHD colour LCD monocular viewfinder, portable HD 20x zoom lens and omni-directional monaural electret condenser microphone.
Full HDExmor CMOS sensors
The HXC-FB75 features three 2/3-inch Exmor CMOS sensors to produce excellent HD pictures.

Captures a variety of HD images
The HXC-FB75 produces a variety of selectable progressive and interlace HD signal formats, including 1080i/59.94,50, 1080PsF/29.97,25, 720p/59.94,50

SD down-converter
Down converted SD signal output from HXCU-FB70

Hybrid-type optical fibre cable connection to CCU extends signal transmission with power supply to 350m
Connected to the HXCU-FB70, hybrid type optical fibre cable with a Neutric connector can extend signal transmission with required power supply up to 350m. Full camera control is possible through a user-friendly operational panel designed specifically to work with the HXC series camera.

Long-distance transmission up to 10km with single-mode fibre cable
In the case of connection with a single-mode fibre cable (SMF), transmission can extend up to 10km, if you are using a local power supply. In many facilities the SMF already laid as infrastructure, it enables you to install the camera system quickly and easily.

HDVF interface for connecting a variety of viewfinders
The HXC-FB75 has an HDVF interface that allows the latest HD portable viewfinders to be used, as well as all types of large HDVF viewfinders.

Wide range of image control functions
The system camera is full of creative image control functions such as MultiMatrix, Skin Tone Detail, Low Key Saturation, Knee Saturation, and Auto Lens Aberration Compensation (ALAC).

Supplied with digital HD viewfinder HD lens and monaural microphone
The HXC-FB75KC camera package is supplied with the HDVF-L10 3.5-inch QHD colour LCD monocular viewfinder that offers better and easier focusing. The camera is also supplied with a portable HD 20x zoom lens and monaural electret condenser microphone.

Sony HXCU-FB70 Camera Control Unit
Sony's HXCU-FB70 optical fibre CCU for HXC-D70 and PMW-320/350/500 camcorders, allows connection to the CA-FB70 optical fibre camera adaptor. With the CCU, it is possible to control the HXC-D70 and PMW-320/350/500 up to a maximum distance of 250 meters, including the power and signals of Tally, Intercom, Video Return and also Prompter.
Optical fibre connection - The HXCU-FB70 helps ensure the best picture quality and easy integration using optical fibre connection for distances up to 250m with power supply or up to 10km with single mode fibre and local power supply.
Connection for all signals - The HXCU-FB70 provides flexible integration and the possibility to extend the operation with all signals (Tally, Intercom, Video Return and Prompter) in full HD.
Compatible with RCP-1xxx Series remote control panels and RCP software - The HXCU-FB70 allows you to use the popular RCP-1xxx Series remote control panels that well known on all HD system cameras. You are also able to lower the cost of the system by using HZC-RCP5 (PC-RCP) to network and display your parameters on a big screen.
Operates with CA-FB70 and HXCE-FB70 for greater flexibility - The HXCU-FB70 works seamlessly withthe CA-FB70 optical fibre adaptor and HXCE-FB70 power extension unit when power supply is required for the CA-FB70 attached to theHXC-D70 camera or PMW-320/350/500camcorders, or when the long distance signal transmission is requiredbetween the CA-FB20 and HXCU-FB70.
Connector options - The HXCU-FB70 is supplied with an optical Neutrikoptical CON DUO connector, which accepts either a LC-Duplex connector for a cost effective single mode fibre cable, or a rugged Neutrik optical CON connector for a SMPTE-type power and fibre composite cable.
Selectable outputs - The HXCU-FB70 features 4x selectable SD/HD-SDI outputs plus analogue VBS and component, HDMI and S-Video outputs.


  • 3x 2/3" Type Exmor Full-HD CMOS Sensors
  • 1080i/PsF, 720p, 480i, 576i
  • High Sensitivity, S/N Ratio, and TVL
  • Variety of Picture Adjustment Functions
  • Simple and Efficient Interface Design
  • Supplied with Viewfinder, Mic & Lens


Sony HXC-FB75KC//U 2/3" Exmor SD/HD Studio Camera
Power requirements:

  • CCU: DC48V, 2.8A (max.)
  • Ext.DC In: DC12V, 5.4A (max.)

Power Consumption:

  • Approx.18W (Camera body only)
  • Approx. 21W (Camera body with supplied viewfinder)


  • Operating temperature: -10°C to +45°C (14°F to +113°F)
  • Storage temperature: -20°C to +60°C (-4°F to +140°F)
  • Dimensions (W x H x D):
  • 162.5 x 265 x 322 mm
  • 6 1/2 x 10 1/2 x 12 3/4 inches

Mass: Main body only :

  • Approx. 3.3 kg
  • Approx. 7 lb 4.4 oz

Camera section

  • Pickup device: 3-chip 2/3-inch type CMOS
  • Effective Picture Elements: 1920 x 1080 (H x V)
  • Signal format:
  • HD: 1080/59.94i, 1080/50i, 1080/29.97PsF, 1080/25PsF, 720/59.94p, 720/50p
  • SD: 480/59.94i, 576/50i


  • Spectrum system: F1.4 prism system
  • Lens Mount: Sony 2/3"- type bayonet mount
  • Built-in filters:
  • CC: Electrical
  • ND: 1; CLEAR, 2; 1/4ND, 3; 1/16ND, 4; 1/64ND


  • Sensitivity (at 2000 lx, 3200K, 89.9% reflectance): F12 (59.94 Hz), F13 (50 Hz)
  • Signal-to-noise Ratio: Typical 60dB*2 (1080/59.94i)
  • Modulation Depth: HD : 45% or higher at 27.5 MHz (1080i)
  • Horizontal Resolution: 1,000 TV lines or higher
  • Gain: -3, 0, 3, 6, 9, 12 dB
  • Shutter Speed:
  • 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec (59.94i mode)
  • 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec (50i mode)


  • Shutter Speed (Slow Shutter (SLS)): 2, 3, 4, 5, 6, 7, 8-frame accumulation (Only for HD1080 mode)

Audio 1 IN/Audio 2 IN:

  • XLR type: 3-pin, female (1 each)
  • MIC IN: -60dBu (Up to -20dBu can be set by using menu or HXCU-FB70), balanced
  • LINE IN: 0dBu, balanced


  • Intercom: XLR type, 5-pin, female (1)
  • Earphone: Stereo minijack (1)
  • DC Input: XLR-type 4-pin (x1), DC 10.5 V to 17 V
  • DC Output: 4-pin (1), DC 10.5 V to 17 V, 1.5 A (max.)
  • Prompter/Genlock: BNC (x1); Gen-Lock In or Prompter Out
  • SDI Input: BNC type (1), for Return
  • SDI Output: BNC (x1), HD-SDI or SD-SDI selectable
  • Test Output: TEST Out (Analog output with/without characters), or HD/SD Sync Out
  • Trunk:
  • TRUNK LINE D-sub 9-pin, female (1)
  • RS-232C


  • CCU: Optical Fiber (x1), CCFN cable or Single Mode Fiber cable (LC type)
  • Distance of Power Supply (with HXCU-FB70):
  • 350m (max.)
  • by CCFN Sony Hybrid Type Fiber Cable with Portable Lens Installed


  • Distance of Single Mode Fiber Cable (with HXCU-FB70): 10km (max.)
  • by Single Mode Fiber Cable (LC type) with Local Power Supply


  • Remote: 8pin (x1)
  • USB: USB 2.0 (x1)
  • EXT Input/Output: D-Sub 9pin, female (x1)
  • Viewfinder: 20-pin (1), for HDVF only
  • Lens: 12-pin (x1)


  • Display (Viewfinder supplied)
  • Screen Size: 8.8 cm diagonal (3.5 inch)
  • Aspect Ratio: 16:9
  • Picture Elements: 960(H) x3x540(V) RGB stripe array


  • Focal Length: 8.2mm (11/32 inches) to 164mm (6 1/2 inches)
  • Zoom: Servo/Manual selectable
  • Zoom Ratio: 20 x
  • Maximum Relative Aperture: 1: 1.9
  • Iris: Auto/Manual selectable
  • F1.9 to F16 and C (Close)


  • Full manual focus
  • 900 mm to ∞ (MACRO OFF)
  • 10 mm to ∞ (MACRO ON, Wide)


  • Filter Thread: M82 mm, pitch 0.75 mm
  • Macro: On/Off switchable


  • Sony HXCU-FB70 Camera Control Unit
  • Power Requirements: AC 100 V to 240 V, 50/60 Hz
  • Operating Temperature: 5°C to 40°C (41°F to 104°F)
  • Mass: 6.5 Kg (14 lb 5.3 oz)

Includes In The Box:

  • 1 x Sony HXC-FB75PK 2/3" Exmor SD/HD Studio Camera
  • 1 x Sony HXCU-FB70 Camera Control Unit
  • 1 x Operation Guide
  • 1 xOperation Manual (CD-ROM 1), JP, GB, FR, DE, IT, ES, CS
  • 1 x Viewfinder
  • 1 x Microphone
  • 1 x Windscreen
  • 1 x Lens Mount Cap
  • 1 x Flange back adjustment chart
  • 1 x Cable clamp belt
