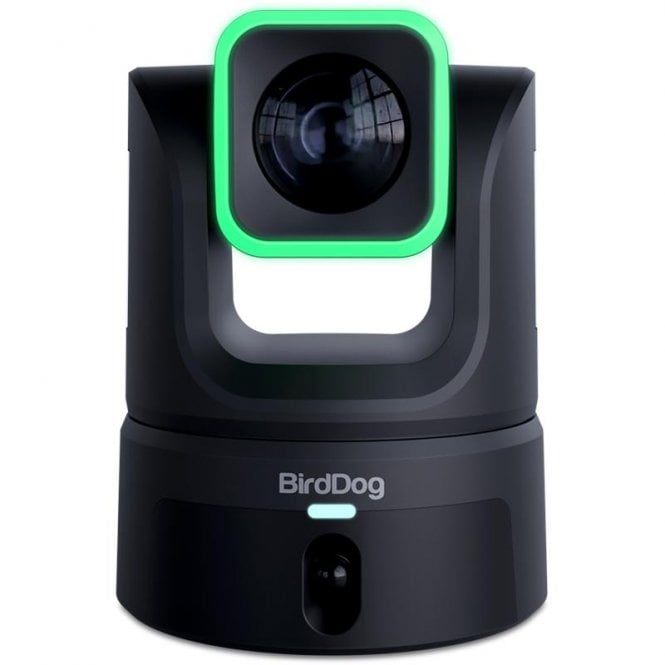

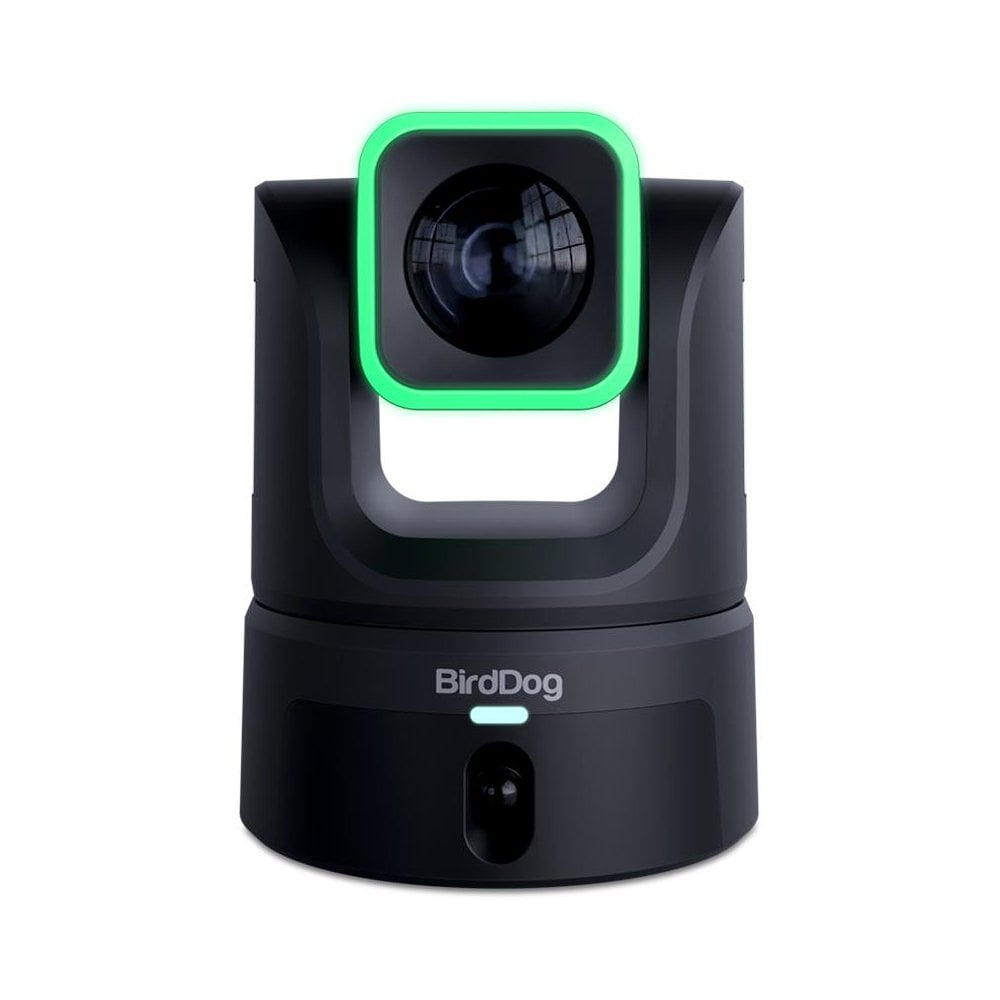

BirdDog XL Ultra 4K60 UHD PTZ Camera - Black

code: BDXLUB

$6,851.93
Secure yours with a deposit of
RRP: $7,547.19
|
|

Availability | Usually dispatched within 24 hours

Add to Compare

Features:

PTZ camera featuring a cinematic 4/3" CMOS sensor, 20× optical zoom, and dual 4K60 outputs
Large-format 4/3" CMOS sensor delivers cinematic depth of field and excellent low-light performance
20× optical zoom (extendable to 40× in HD) with OLPF and ND filters for sharp, precise imaging
AI-powered tracking with machine learning and dual-camera input for natural, human-like framing
Ultra-quiet motors and advanced thermal design enable distraction-free operation
Dual 4K60 outputs via 12G-SDI and HDMI ensure uncompromised image quality
FreeD and Genlock support make it ideal for XR stages, AR workflows, and multi-camera synchronization
SFP+ fiber connectivity supports large-scale and remote installations
Simultaneous Full NDI® and NDI® HX3 streaming for maximum workflow flexibility
Dual streaming capability with NDI plus SRT, RTMP, or RTSP at the same time
Firmware-ready for NDI 6.2, ensuring future-ready performance

Description
Specification
Included In Box
Reviews
(0)

BirdDog BDXLUB (BD-XLUB, BD/XLUB, BD_XLUB, BD XLUB) XL Ultra 4K60 UHD PTZ Camera - Black

This isn’t just another PTZ — it’s a powerhouse built around a massive 4/3" CMOS sensor, the kind typically reserved for high-end cinema and DSLR cameras. Combined with a 20× optical zoom (40× in HD), OLPF, and ND filters, the XL delivers true cinematic depth, exceptional low-light performance, and razor-sharp clarity that redefines what a PTZ can do.

But the XL goes beyond sensor size. Its innovative dual-camera design pairs a main PTZ with a 100° panoramic camera, both shooting in 4K60, both independently adjustable, and both capable of simultaneous output. One system, two perspectives, limitless creative freedom.

AI tracking is powered by an advanced neural processor, ensuring natural framing with human-like precision. Premium-grade motors and a next-generation thermal system guarantee whisper-smooth, near-silent movement — keeping the focus on your subject, not the hardware.

Connectivity leaves no compromises: 12G-SDI, HDMI, SFP+ fiber, PoE++, and balanced XLR audio. Simultaneous Full NDI® and NDI® HX3 streaming, plus dual-stream support with SRT, RTMP, or RTSP, make it ready for any workflow — broadcast, AV, XR, or virtual production.

Signature BirdDog details elevate the XL Ultra even further: customizable RGB Halo Tally, dual side e-ink displays, and a rear numbering tally system. It’s a PTZ that not only performs like cinema but looks the part too.

From studios and XR stages to houses of worship and arena productions — the XL Ultra is built to lead.

PRIMARY CAMERA

Image Sensor: 4/3" Sony CMOS 5K Sensor
Lens: 20x Optical Zoom Lens
Video Format: 2160p60
Additional Resolutions: 2160p60, 59.94, 50, 29.97, 25; 1080p60, 59.94, 50, 30, 29.97, 25; 1080i60, 59.94, 50; 720p60, 59.94, 50
Focal Length: 9.8mm – 186mm
Aperture: f2.8–f4.5
Focus: Auto, Manual
AF Method: PDAF (Phase Detection Auto Focus)
Horizontal Field of View: 77° – 4°
Exposure: Auto, Shutter Priority, Iris Priority, Manual, BLC, WDR
Shutter Speed: 1/1–1/10,000s
3D Noise Reduction: Yes
SNR: 300lux–600lux 45–50dB
Effective Pixels: 20.89 MP
Vertical Field of View: 40° – 2°
Diagonal Field of View: 79° – 4.5°
ND Filter: Yes, 1/4, 1/16, 1/62
Optical Low Pass Filter (OLPF): Yes
Image Stabilization: Digital
Digital Zoom: 16x Supersampling
Filter Ring: Yes
SECONDARY PANORAMIC CAMERA
Image Sensor: 1/1.8" Sony CMOS 4K Sensor
Lens: Fixed
Focal Length: 4.4mm
Aperture: f2.0
Horizontal Field of View: 85°
Vertical Field of View: 53°
Diagonal Field of View: 100°

MECHANICAL

Pan/Tilt Rotation: ±170°, –30° – +90°
Pan Control Speed: 0.05° – 120°/s
Tilt Control Speed: 0.05° – 90°/s
Preset Number: 256
Integrated Tally Light: Halo Style, RGB (Front), Number Style (Rear)
e-Ink Display: 2x 3" Grayscale e-Ink Displays
Pan/Tilt Drive System: Ultra-fine drive
Quietness: NC 50 (with a sound pressure level corresponding to the 500Hz–1kHz frequency band being 49–51 dB)

I/O INTERFACE

Video Output Interfaces: 12G–SDI, 3G SDI x 2, HDMI 2.0, USB–C, 1Gb RJ45, SFP+ Cage (Ethernet)
Video Compression Formats: H.264, H.265, SpeedHQ
Network Interfaces: 1x 1GbE Adaptive Ethernet port, PoE++, 1x SFP+ Cage (Ethernet)
Encoder Network Protocols: High–Bandwidth NDI® (SpeedHQ), NDI®-HX3, NDI®-HX2, SRT, RTSP, RTMP
Decoder Network Protocols: NDI®-HX3, NDI®-HX2
Decoder Supported Resolutions: 1080p @ 60 / 59.94 / 50 / 29.97 / 25fps, 720p @ 60, 59.94, 50fps
Control Interfaces: 1Gb Ethernet, SFP+, RS232 (input & output), RS422, TYPE–C (UVC)
Control Protocols: VISCA–IP, NDI®, VISCA Serial, Pelco–P, Pelco–D
FreeD Protocol: Supported – UDP / NDP Embedded
Analogue Audio: Balanced Audio XLR x2
Digital Audio: Embedded with Main and Secondary HDMI, 12G–SDI, Network Video, USB (UVC) Genlock Supported
Timecode: Supported
SD Card Slot: MicroSD – Recording supported
Kensington Lock: Supported
WebUI Control: Integrated BirdDog BirdUI 2.0
API Support: BirdDog RESTful API 2.0, Crestron Libraries, Qsys Libraries

AI FEATURES

Presenter Tracking: Advanced with Secondary camera assistance
Auto–Framing: Advanced with Secondary camera assistance
Zone Tracking: Supported
Gesture Control: Supported

Environmental

Operating Conditions: 32 to 104°F / 0 to 40°C at 0 to 80% Humidity
Impact Resistance: No
Environmental Resistance: No

Power

PoE Support: PoE++ 802.3bt
Power I/O: 1x Barrel (12VDC at 5 A)
Power Consumption: 40 W

GENERAL

Color: Black
Working Temperature: 0°C – 40°C (32°F – 105°F)
Working Humidity: 20% – 80% (Non–condensing)
Dimension (W×H×D): 218.6 × 291.6 × 263.3mm (8.61 × 11.48 × 10.37in)
Weight: ≈4KG

In The Box

BirdDog XL Ultra 4K60 PTZ Camera - Black
