CAME-TV CAME-TERAPIN-GH45 Terapin Rig for Panasonic GH5 and GH4

Came-TV CAME-TERAPIN-GH45 (CAME_TERAPIN_GH45, CAME/TERAPIN/GH45, CAME TERAPIN GH45) Terapin Rig for Panasonic GH5 and GH4

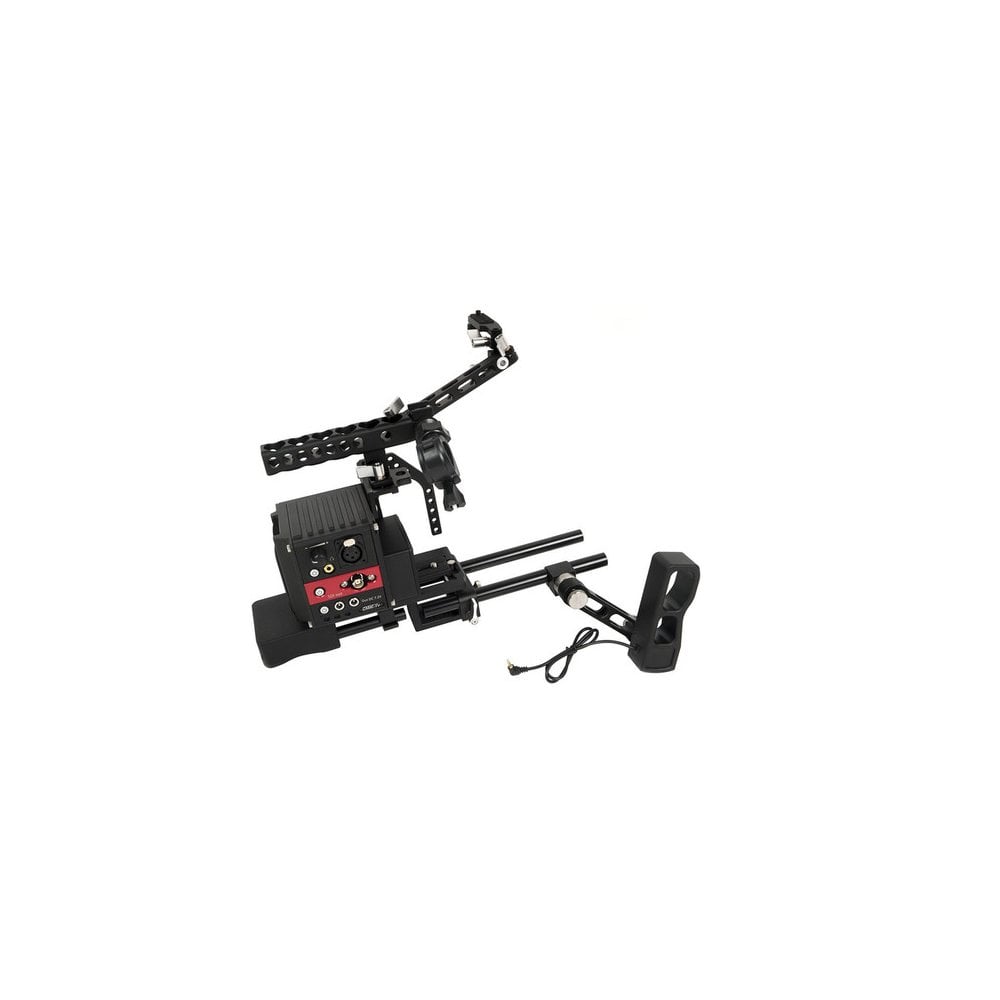

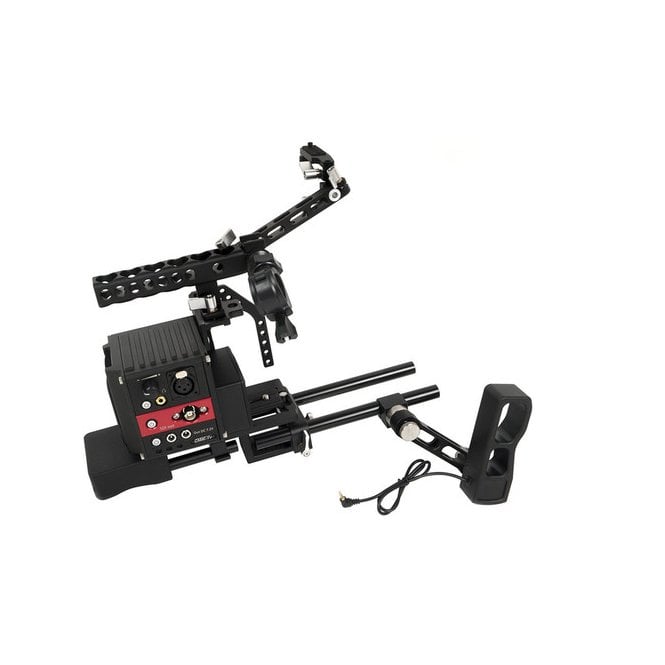

The CAME-TV Terapin Rig for Panasonic GH5 and GH4 is built around a power breakout box with a variety of camera and accessory connectors. Use this shoulder-mounted rig to transform your GH5/4 camera into an ergonomic ENG-style setup. The Terapin Rig is comprised of a baseplate with front 15mm and rear 11mm rods, a power distribution box, a Start/Stop trigger handle, a dummy battery, and a Sony L-series type battery plate.

The versatile breakout box at the heart of this rig transfers your camera's power, video, and audio signals to a larger, more accessible interface. It draws power from a single Sony L-series type battery and distributes that power to multiple devices simultaneously. The breakout box sports an SDI video output (BNC), two 7.2V accessory ports, and the battery plate. Audio features include one XLR audio input with 48V phantom power, and a 3.5mm headphone jack with volume control knob.

The LWS baseplate supports 15mm accessories, enabling you to easily build out your camera rig. The soft shoulder pad attaches to the 11mm rods mounted to the rear of the baseplate. Additional rig components include a microphone clamp, a right angle HDMI adapter, two audio cables, a DC power cable, an HDMI type A cable, and an HDMI type A to type D (micro) cable.

• Battery Plate: 1 x Sony L-series type
• Connectors: DC Output: 2 x 7.2 V barrel, SDI Video Out: 1 x BNC, Audio In: 1 x XLR, 48 V, Headphone Out: 1 x 3.5 mm mini jack

In the box

• CAME-TV Terapin Rig for Panasonic GH5 and GH4
• Cage with Shoulder Pad
• Microphone Clamp
• HDMI Right Angle Adapter
• 2 x Audio Cable
• DC Cable
• 2 x 15mm Rod (7.9")
• 2 x 11mm Rod (7.9")
• Dummy Battery
• Handle
• HDMI Type A Cable
• HDMI Type A to HDMI Type D Cable
