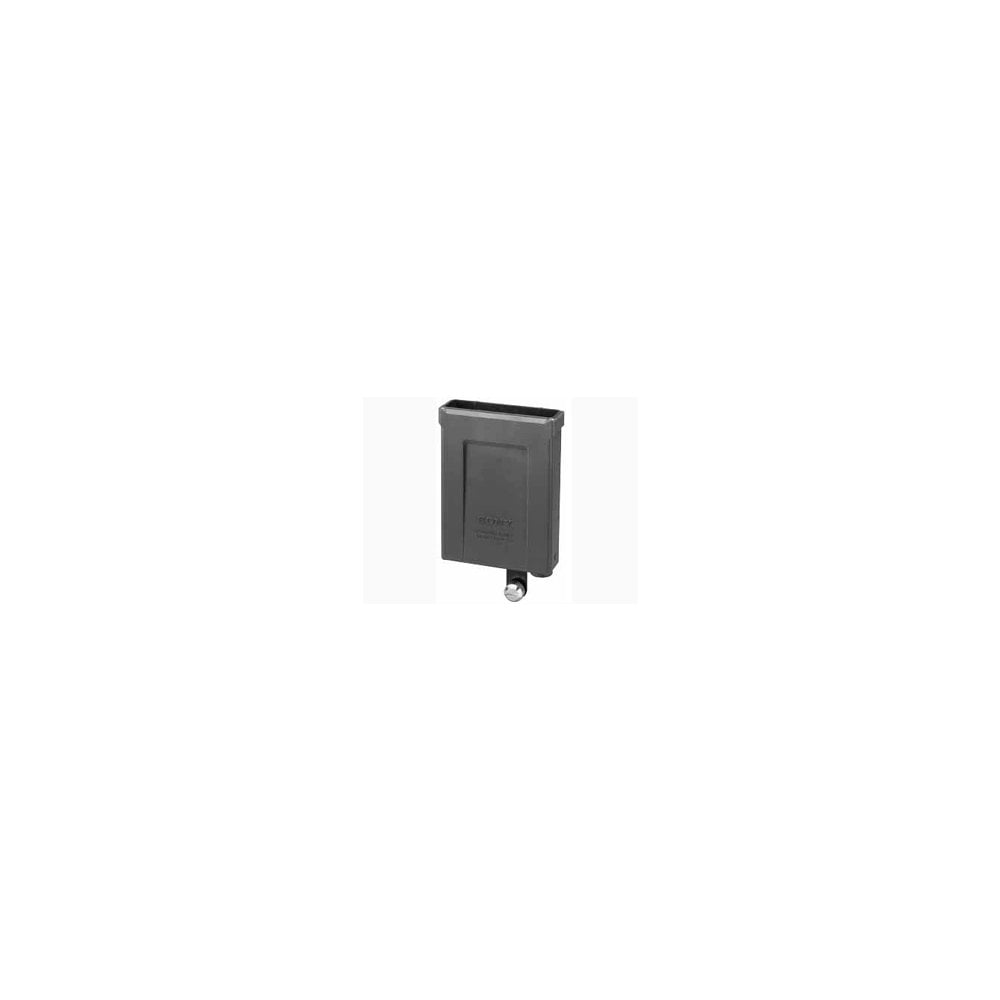

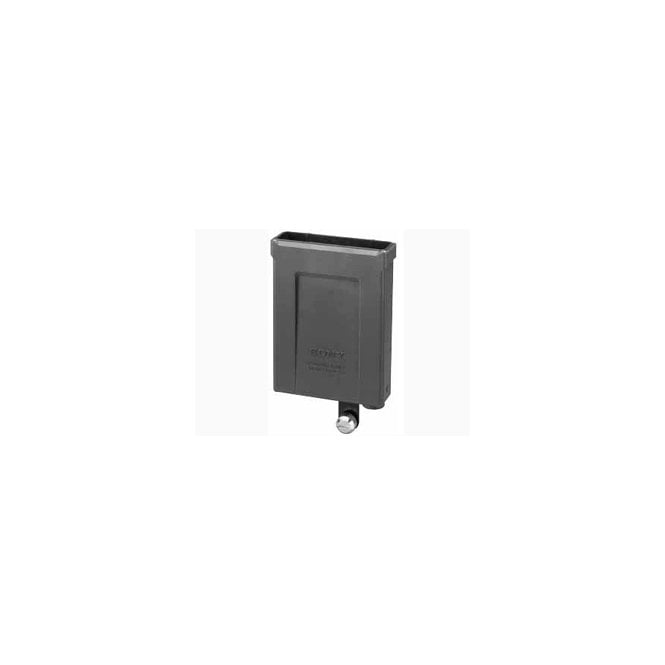

Sony BTA-801 Portable Tuner Mount Adaptor

Sony BTA-801 (BTA/801, BTA_801, bta-801) Portable Tuner Mount Adaptor

Camera mount adapter for the WRR-855 diversity tuner. The BTA-801 receives camera power via a supplied 4-pin DC cable, and it provides audio output via a balanced XLR output connector. When used in conjunction with Sony Lithium-Ion battery packs, the BTA-801 mounts onto a bracket.

• Analog Output: XLR-3-11C type (x1)
• Power Requirements: DC 10 to 17 V (12 V nominal)
• Power Consumptio: 200 mA DC or less (at DC 7 V)

Operating Temperatur:

• 32°F to 122°F
• 0°C to 50°C

Storage/Transport Temperature:

• -4°F to +140°F
• '-20°C to +60°C

Dimensions *[1]:

• φ88 x 142.5 x 31.5 mm (W x H x D) (including projecting parts)
• φ3 1/2 x 5 5/8 x 1 1/4 inches (W x H x D) (including projecting parts)

Mass:

• Approx. 6.3
• Approx. 180 g

Supplied Accessories:

• Operating Instructions (1)
• DC power cable (1)
• Betacam attachment kit (1 set)
• -Holder (1)
• Bracket (1)
• Binding head screws (M4 x 6) (2)

In the Box

• Sony Camera Mount Adapter
• DC Power Cable
• Betacam Attachment Kit: Holder & Bracket & Screws
