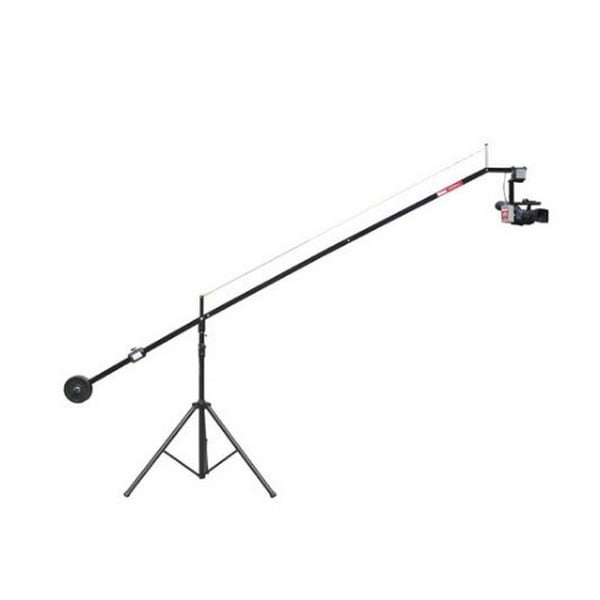

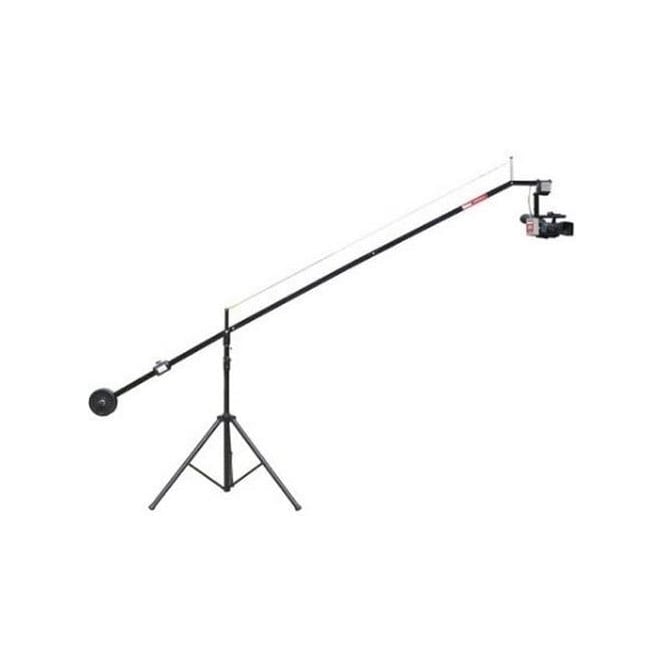

Hague K10-UPH (K10UPH, K10 UPH, K10/UPH, k10-uph) Camcrane with stand & underslung powerhead
The Hague CamCrane K10-UPH is quick and simple to set up, it is supplied with its own stand and a underslung remote controlled pan & tilt powerhead.
The stand's height is adjustable from 1.1 to 1.4 metres high with standard bar weights (not supplied) used for counterbalance, these are held in place by the weight bar and there is an adjustable fine trim weight to obtain perfect balance.
Once balanced the camera can smoothly move from ground level to almost 4 metres high and the crane will pan 360 degrees on the stand. You also have the ability to pan and tilt the camera through 360 degrees by controlling the underslung powerhead using the wired remote control.
The distance from the stand to the camera is 2.5 metres and the K10 has a total length of 3.6 metres. It is ideal for all handheld cameras under 2.5kg. An optional monitor bracket is available, this enables a LCD monitor to be fastened to the crane, making it easier to monitor your shots.
The Hague UPH electronic motorized Underslung Pan & Tilt Power Head is suitable for all handheld cameras that weigh less than 2.5kg. Having the camera underslung gives much greater tilt movement (360 degrees) which enables the camera to point directly down if required. The unit is battery operated with a wired remote control for both pan & tilt, it also has a variable speed control.
K10 CamCrane, Fine Trim Weight, Weight Bar, Remote Underslung Pan & Tilt Power Head, Power Head Remote and extension cable.
Power Source 4 AA Batteries
Vertical Tilt 360 Degrees
Horizontal Pan 360 Degrees
Approx. Max. Speed- Vertical Tilt 8 Degrees per sec.
Approx. Min. Speed- Vertical Tilt 4 Degrees per sec.
Approx. Max. Speed- Horizontal Pan 8 Degrees per sec.
Approx. Min. Speed- Horizontal Pan 4 Degrees per sec.
Auto Pan Settings Not available
Maximum Camera Weight 2.5kg. (5.5Ib.)
Size 356x240x103mm (14x9.5x4 inches)
Weight (with batteries) 1.7kg. (3.75 lb.)
Supports up to 2.5kg.
