Datavideo DATA-RMC185 KMU Controller - Dedicated Control Surface

Datavideo (DATA-RMC185, DATARMC185, DATA RMC185)

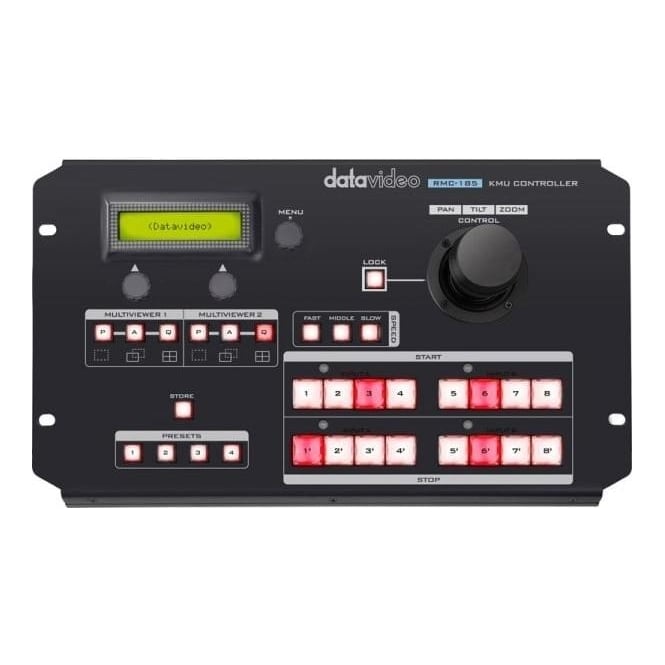

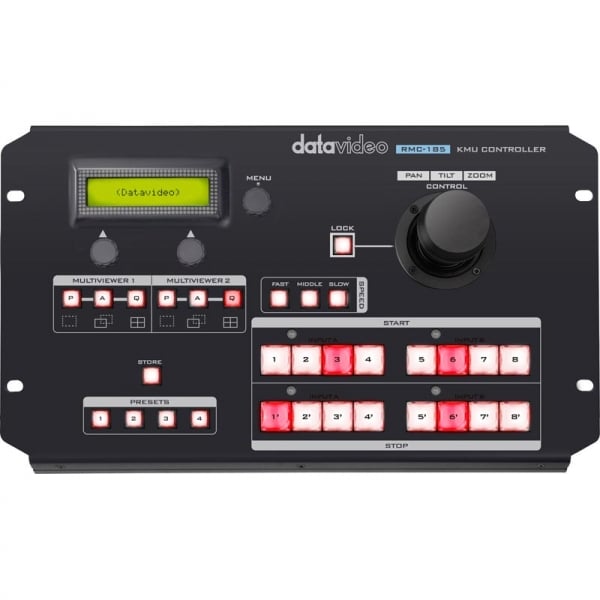

The RMC-185 is a cost effective physical controller designed specifically for control of the KMU series 4K Multi-Camera Processor.

The RMC-185 interfaces with the KMU-100 via an RS-422 interface. This dedicated controller allows operators to make smooth zoom and pan/tilt motions by using the joystick.

4 presets are available that hold scale, position, motion path and speed of all 4 individual 3Gb/s outputs, per channel. Buttons allow start/stop/reset of motion in a predefined speed of every individual output.

• Dedicated control surface for KMU-100
• Provides easy and intuitive control of the KMU-100
• Easily pan, tilt and zoom to create the user defined windows on the 4K signal
• Switch between live and preview inputs
• LCD display showing setup menu options
• Three Multiviewer modes (Preview, A to B Motion and Quad)
• Robust, rugged metal housing
• Dimensions: 310 x 129.98 x 170mm
