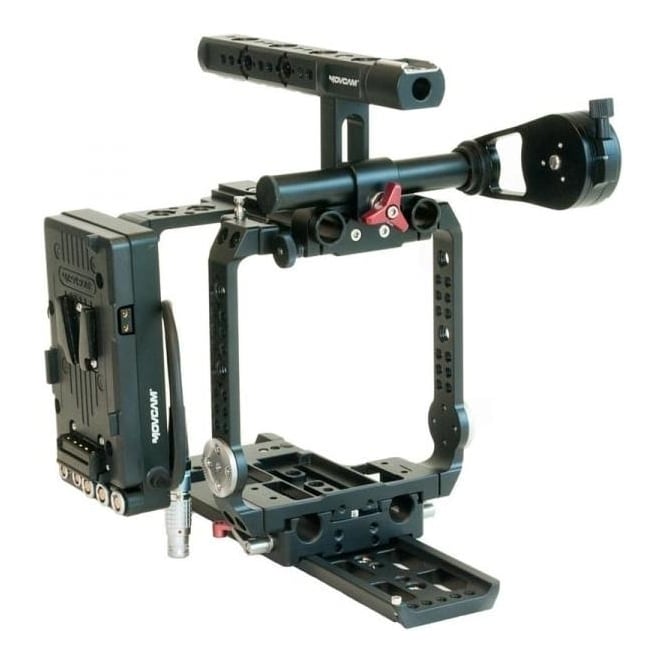

Movcam MOV-303-2800 Base Kit for ARRI Alexa Mini

Movcam(MOV-303-2800, MOV3032800, MOV 3032800, MOV303/2800)

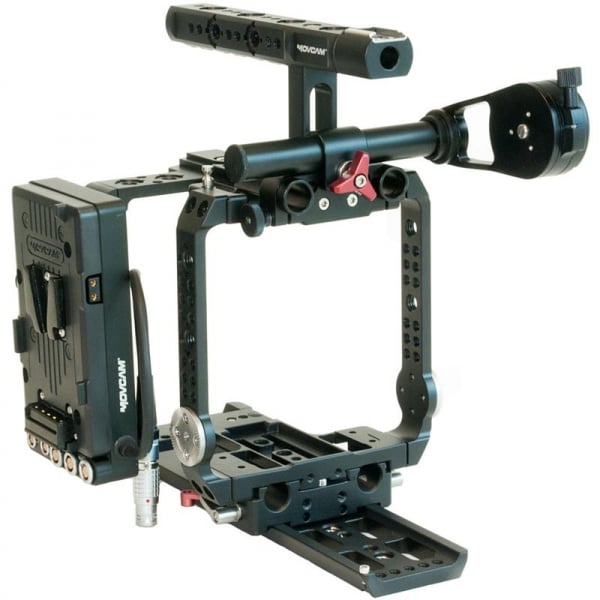

The Movcam Base Kit for Alexa Mini is a modular camera rig designed for the ARRI Alexa Mini that adds essential mounting points, accessory support, and a V-Mount battery distribution box. To construct a camera cage, the kit includes two adapter plates (for top and bottom) and two side arms that features ARRI standard rosettes and accessory mounting threads. A quick-release baseplate is included that lets you mount the entire rig onto an ARRI standard dovetail, while also providing 15mm LWS rod ports.

Attaching to the top of the cage is a top handle and a 15mm rod clamp, with the latter supporting a pair of included 8" rods and an included EVF mounting bracket. To power the Alexa Mini, the kit includes a power distribution box with a V-Mount battery plate. In addition to an integrated power output cable to connect to the camera, the box also features four regulated power outputs, while the battery plate itself provides two D-tap outputs. The distribution box attaches the top and bottom adapter plates of the cage via included mounting brackets. Completing the kit are two pairs of 8" long 15mm rods.

Features:

• Modular Support Rig for ARRI Alexa Mini
• Allows you to quickly attach/detach your bridgeplate
• Made of Aluminum
• Modular Support Rig for ARRI Alexa Mini
• Top and Bottom Adapter Plates
• Side Arms with ARRI Rosettes
• Quick-Release 15mm Rod Baseplate
• Compatible with ARRI Dovetail Plates
• Top 15mm Rod Clamp
• EVF Mounting Bracket

What's In The Box

• 2x Adapter Plate
• 1x Top Handle Kit
• 2x Side Bracket
• 1x VF Clamp
• 1x VF Bracket
• 1x Distrubtion Box - V
• 1x Universal Quick Release Base Plate
• 1x Universal LWS DP
• 4x 15mm Aluminum Rod - 8" Long
