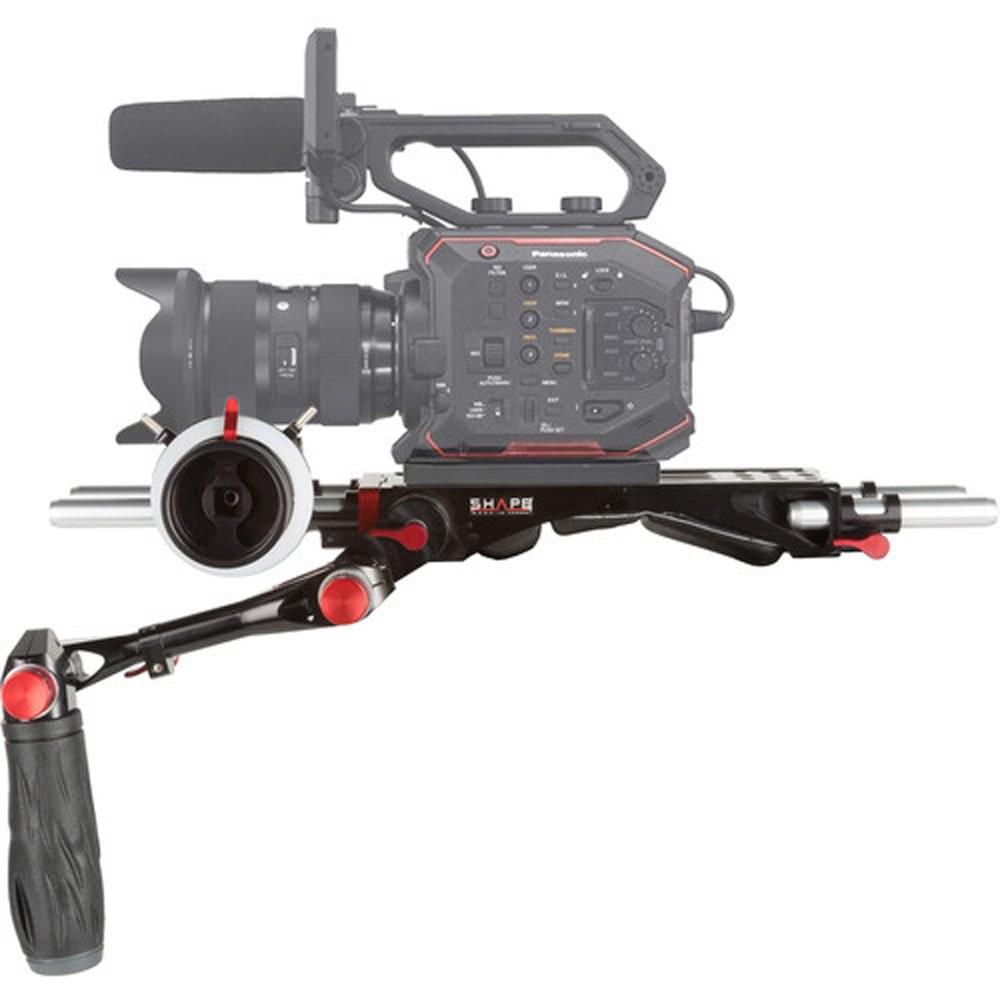

Shape Bundle Rig with Follow Focus Pro for Panasonic AU-EVA1 Camera

Shape SH-EVABRFFP (SHEVABRFFP, SH/EVABRFFP, SH EVABRFFP, EVABRFFP, sh-evabrffp) Bundle Rig with Follow Focus Pro for Panasonic AU-EVA1 Camera

The Telescopic Handle is indexed for extension and rotation, so you can quickly move between known setups. The arm attaches to your camera or support via an ARRI-compatible rosette with spring-loaded locking levers, which allow you to lock your arms in place without having a full 360° of rotation. The rotating capability allows it to be adjusted for left and right-handed use. The arm features three points of articulation (one ratchet knob and two push button systems). A spring-loaded locking lever along the arm allows you to extend the arm up to 1.5" and rotate the handgrip throughout 360°.

By simply pressing the button, you can achieve 360° rotation to place the handle in the required position for your use. The push button system on the handle articulating joint provides additional articulation near the rosette, while a second push button articulation joint allows you to rotate and precisely position the handgrips.

The Follow Focus Pro is suitable for use with film and cine-style lenses. It is designed with a snap-on unit adapter for 15mm rods to meet your particular camera rig requirements and adjustments. The unit sports a sleek black anodized finish and is made of robust CNC machined aluminum.

The Gear Arm is reversible and two gear wheels are supplied to accommodate a wide range of lens barrel sizes with 0.8mm pitch (28 and 43-teeth aluminum gear). There is also a choice of two different focusing methods (Standard or Hard Stop) for accurate adjustment on the set.

BP0008 V-Lock Quick Release Baseplate

• Material : Solid anodized aluminum

Rod Type:

• 15 mm
• 2x 8" (20 cm), 2x 4" (10 cm)

Mount Types:

• 1/4"-20 and 3/8"-16 tripod mount threads
• V-lock delta adapter
• 1/4"-20 and 3/8"-16 accessory mount threads
• 1/4"-20 and 3/8"-16 camera mount screws included

V-Lock Replacement Pad

• Attachment Method : Hook and loop
• Padding : Yes

Telescopic Handle for ARRI Rosette

• Extension : 1.5" (3.81 cm)

15mm Aluminum Rods (Pair, 8")

• Diameter : 15 mm
• Length : 8 inches (20.3 cm)
• Material : Aluminum with a clear finish applied over it

15mm Aluminum Rods (Pair, 4")

• Diameter : 15 mm
• Length : 4 inches (10.1 cm)
• Material : Aluminum with a clear finish applied over it

Follow Focus Pro

• Construction Material : CNC machined black anodized aluminum
• Dimensions : 7.63 x 5.00 x 3.00" (19.37 x 12.70 x 7.62 cm)
• Weight : 1.4 lb (0.6 kg)

In the Box

• Bundle Items
• BP0008 V-Lock Quick Release Baseplate
• 15mm LWS Rod Adapter
• 15mm Aluminum Rods (Pair, 8")
• 15mm Aluminum Rods (Pair, 4")
• 2 x 1/4"-20 Camera Mount Screws
• 2 x 3/8"-16 Camera Mount Screws
• Allen Key
• V-Lock Replacement Pad
• Telescopic Handle for ARRI Rosette
• 15mm Aluminum Rods (Pair, 8")
• 15mm Aluminum Rods (Pair, 4")
• Follow Focus Pro
• 0.8 Pitch 28 Teeth Aluminum Gear for Follow Focus Pro
• 0.8 Pitch 43 Teeth Aluminum Gear for Follow Focus Pro
