Shape C200 Canon Camera Bundle Rig with Follow Focus Pro & 4 x 5.6" Matte Box

Shape SH-C2KIT (SHC2KIT, SH/C2KIT, SH C2KIT, C2KIT, sh-c2kit) C200 Canon Camera Bundle Rig with Follow Focus Pro & 4 x 5.6" Matte Box

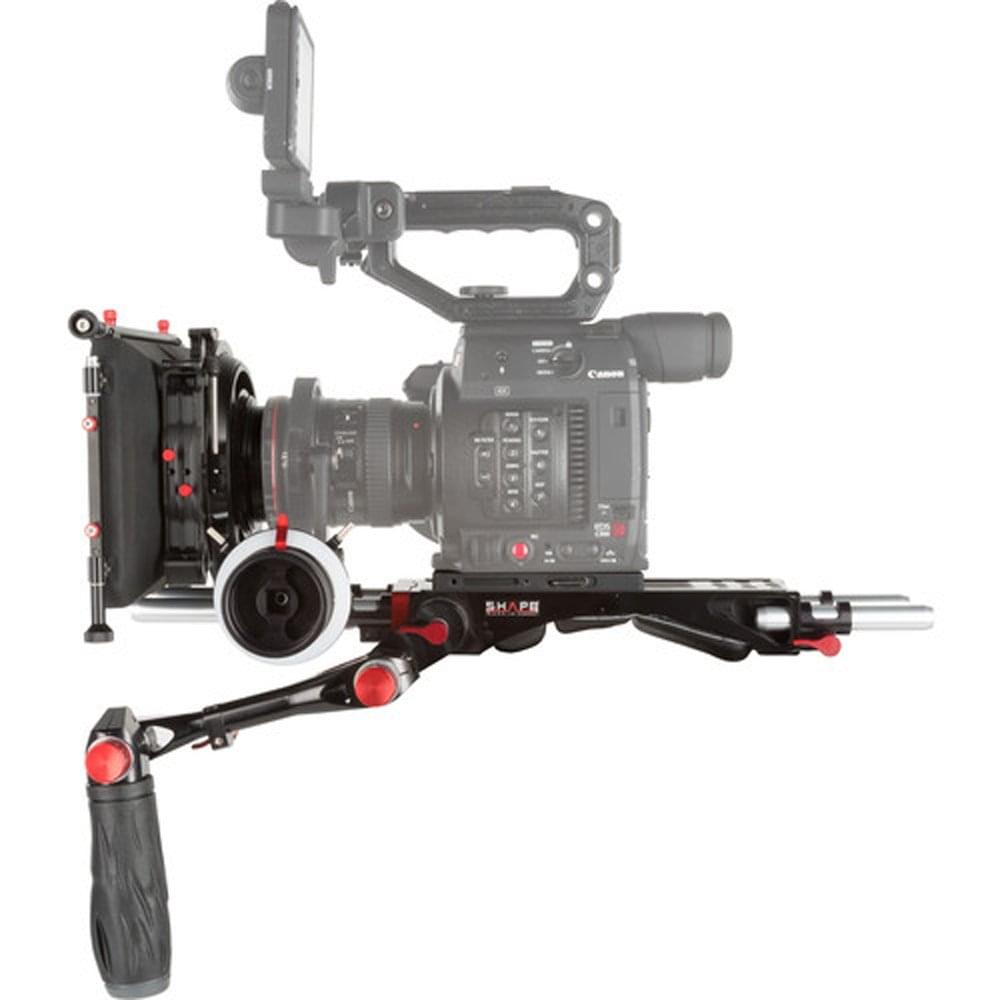

The SHAPE Canon C200 Camera Bundle Rig is a support system suitable for both handheld or shoulder-mounted shooting. It includes the BP0008 V-Lock Quick Release Baseplate with a pair each of 8" and 4" 15mm aluminum rods, the V-Lock Replacement Pad, one HAND3 Telescopic Handle for ARRI Rosette, the Two-Stage 4 x 5.6" Matte Box, and one Follow Focus Pro.

The BP0008 V-Lock Quick Release Baseplate is a long-format baseplate for larger cameras like the ALEXA, F5, C300, and broadcast cameras. It can be used shoulder or tripod-mounted, or attached to V-Lock tripod adapters. The baseplate includes a removable shoulder pad and features rosette adapters for SHAPE and ARRI standard handles. It has 1/4"-20 and 3/8"-16 tripod mount threads and a V-Lock Delta adapter for attaching to the Sony VCT-14 or Panasonic SHAN-TM700 tripod adapter. The shoulder pad secures via touch fasteners. The tripod mount threads are located underneath the shoulder pad. Both 8" and 4" 15mm rods are included for the front and back. The Two-Stage 4 x 5.6" Matte Box can be used as a clip-on, or can be mounted on an industry standard 15mm rod system.

The Telescopic Handle is indexed for extension and rotation, so you can quickly move between setups. The arms attach to your camera or support via an ARRI compatible rosette with spring-loaded locking levers. The rotating capability allows it to be adjusted for left and right-handed use. The arm features three points of articulation—one ratchet knob and two push button systems. A spring-loaded locking lever allows you to extend the arms up to 1.5" and rotate the handgrips throughout 360°.

By simply pressing the button, you can achieve 360° rotation to place the handle in the required position for your use. The push button system on the handle articulating joint provides additional articulation near the rosette, while a second push button articulation joint allows you to rotate and precisely position the handgrips.

The Follow Focus Pro is suitable for use with film and cine-style lenses. It is designed with a snap-on unit adapter for 15mm rods to meet your camera rig requirements and adjustments. The unit sports a sleek black anodized finish and is made of robust CNC Machined aluminum.

The Gear Arm is reversible, and two gear wheels are supplied to accommodate a wide range of lens barrel sizes with 0.8mm pitch (28 and 43-teeth aluminum gear). There is also a choice of two different focusing methods (standard or hard stop) for accurate adjustment on the set.

BP0008 V-Lock Quick Release Baseplate

The SHAPE BP0008 V-Lock Quick Release Baseplate is a long format baseplate for larger cameras like the Alexa, F5, C300, and broadcast cameras. It can be used shoulder mounted, tripod mounted, and attached to V-lock tripod adapters.

The baseplate includes a removable shoulder pad and features rosette adapters for SHAPE and ARRI standard handles. It has 1/4"-20 and 3/8"-16 tripod mount threads and a V-lock delta adapter for attaching to the Sony VCT-14 or Panasonic SHAN-TM700 tripod adapter. The shoulder pad secures on by touch fasteners. The tripod mount threads are located underneath the shoulder pad. 8" and 4" 15mm rods are included for the front and back.

This baseplate is the same as the SHAPE BP0007 except it is lighter and has a modified rod adapter in front. The reduced weight is the result of a thinner design, and the rod adapter features one ratchet knob instead of two, allowing quicker rod adjustments. For attaching a matte-box and other accessories, the rod adapter can be adjusted vertically if you remove the screw holding it in position. This baseplate also supports optional SHAPE 15mm Studio and 19mm Studio adapters in place of the included one.

The baseplate features three camera mount slots, all supporting 1/4"-20 and 3/8"-16 screws. The off-center slots allow you to mount your camera offset if you use a 15mm Studio Adapter. 1/4"-20 and 3/8"-16 mounting threads are peppered behind the three slots for attaching articulating arms and other accessories. Two 1/4"-20 and two 3/8"-16 camera mount screws are included. This baseplate is best used with cameras that use external viewfinders.

V-Lock Replacement Pad

The V-Lock Replacement Pad from SHAPE is a replacement shoulder pad for the V-lock system BP6000 and  BP7000. The pad utilizes a hook-and-loop system which allows for easy attachment and removal. The additional padding provided by the strap increases user comfort and reduces strain on the shoulder.

Telescopic Handle for ARRI Rosette

The Telescopic Handle for ARRI Rosette from SHAPE is a versatile and adjustable handgrip that attaches to an ARRI standard rosette on the left or right side of your camera rig. It offers 1.5" of extension and uses push-button mechanisms on the extension arm and handle for adjusting the height and rotation of the handles to meet your needs and preference. The push-button on the handle is a huge benefit when you want to adjust the angle on-the-fly, without having to remove your hand or set down the rig.

2-Stage 4 x 5.6" Matte Box

The 2-Stage 4 x 5.6" Matte Box from SHAPE can be used as a clip-on matte box or can be mounted on industry-standard 15mm rod system. It is designed for light control, insertion, and adjustment of filters. It features a two-stage rotating 4 x 5.6" filter holder. The matte box accepts lenses with a front diameter up to 114mm. It comes with six step-down rings that allow you to fit lenses with an outer diameter of 52, 58, 62, 67, 72, 77, and 82mm as well.

Follow Focus Pro

The SHAPE Follow Focus Pro mounts on 15mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is. The unit snaps onto 15mm rods, allowing for quick attachment, removal, and re-positioning. Two 0.8 pitch gears come included and give you a choice of either 28 teeth or 43 teeth - depending on the throw distance of the lens. Additional features include two adjustable hard stops, removable marking disc, and an industry standard accessory port for using optional whips and cranks.

In the Box

• Bundle Items
• BP0008 V-Lock Quick Release Baseplate
• 15mm LWS Rod Adapter
• 15mm Aluminum Rods (Pair, 8")
• 15mm Aluminum Rods (Pair, 4")
• 2 x 1/4"-20 Camera Mount Screws
• 2 x 3/8"-16 Camera Mount Screws
• Allen Key
• V-Lock Replacement Pad
• Telescopic Handle for ARRI Rosette
• 2-Stage 4 x 5.6" Matte Box
• 2-Stage Bracket for 4 x 5.6" Rotary Filters
• Clip-On System
• 15mm Bracket
• French Flag
• 2 x Side Wing
• 6 x Step-Down Ring
• Follow Focus Pro
• 0.8 Pitch 28 Teeth Aluminum Gear for Follow Focus Pro
• 0.8 Pitch 43 Teeth Aluminum Gear for Follow Focus Pro
