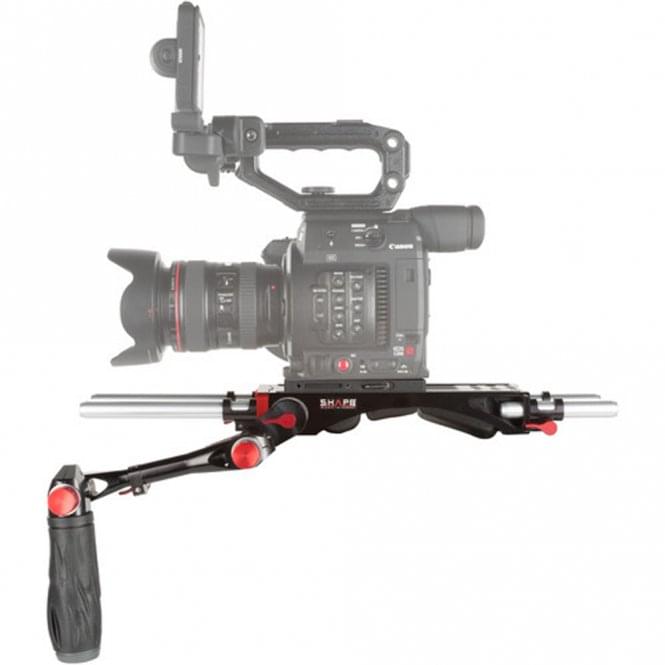

Shape Canon C200 Camera Bundle Rig

Shape SH-C200BR (SHC200BR, SH C200BR, SH/C200BR, C200BR, sh-c200br) Canon C200 Camera Bundle Rig

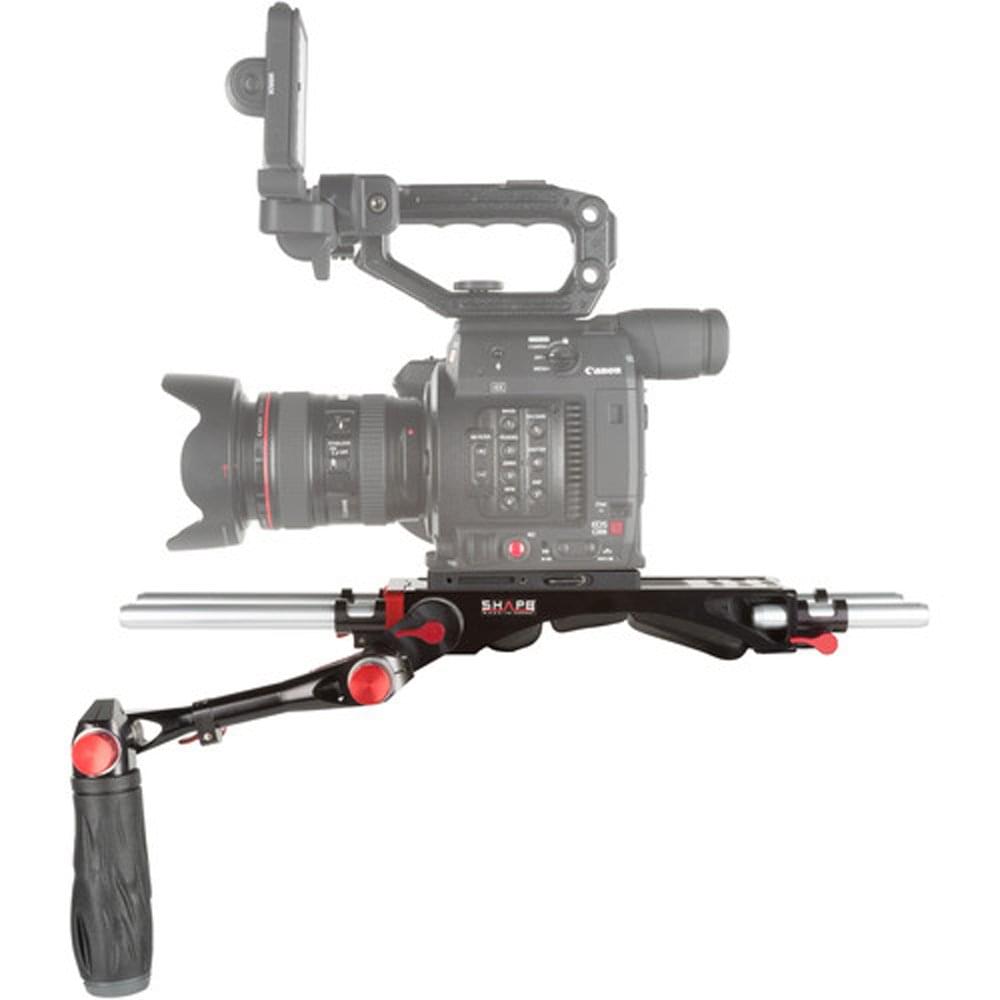

The SHAPE Canon C200 Camera Bundle Rig is a support system designed for the C200 cinema camera, and can be used for shoulder-mounted as well as handheld shooting. The system includes one Canon C200 Baseplate with a shoulder mount and 15mm rod system, one C200 Adapter Plate, and one Telescopic Handle with ARRI Rosette and push button technology.

The Canon C200 Baseplate features a Quick Handle Grip compatible with all standard ARRI rosettes. The Adapter Plate is designed to be mounted at the bottom of the camera and lets you quickly attach your C200 camera to the Baseplate with a shoulder mount. Made of slip-free material, the shoulder pad offers ample comfort and stability. If you want to use the tripod option, the Baseplate also includes a delta plate and can be quickly mounted onto a VCT Tripod Plate. The Rod Bloc System of the Baseplate features two ratchet knob devices to adjust the length and height of your rods. The 15mm lightweight Rod Bloc can be fixed to the C200 Baseplate, allowing you to install additional camera accessories (8” rods at the front and 4” at the back).

The Adapter Plate lets you quickly attach your Canon C200 camera to the Baseplate. The position of the captive screws matches the threaded holes on the base of the camera.

The Telescopic Handle is indexed for extension and rotation, so you can quickly move between known setups. The arm attaches to your camera or support via an ARRI compatible rosette with spring-loaded locking levers, which allow you to lock your arm in place without having a full 360° of rotation. The rotating capability allows it to be adjusted for left and right-handed use. The arm features three points of articulation (one ratchet knob and two push button systems). A spring-loaded locking lever along the arm allows you to extend it up to 1.5". By pressing the button, you can achieve 360° rotation to place the handle in any required position. The push button system provides additional articulation near the rosette, while a second push button articulation joint allows you to rotate and precisely position the handgrip.

BP0008 V-Lock Quick Release Baseplate

The SHAPE BP0008 V-Lock Quick Release Baseplate is a long format baseplate for larger cameras like the Alexa, F5, C300, and broadcast cameras. It can be used shoulder mounted, tripod mounted, and attached to V-lock tripod adapters.

The baseplate includes a removable shoulder pad and features rosette adapters for SHAPE and ARRI standard handles. It has 1/4"-20 and 3/8"-16 tripod mount threads and a V-lock delta adapter for attaching to the Sony VCT-14 or Panasonic SHAN-TM700 tripod adapter. The shoulder pad secures on by touch fasteners. The tripod mount threads are located underneath the shoulder pad. 8" and 4" 15mm rods are included for the front and back.

This baseplate is the same as the SHAPE BP0007 except it is lighter and has a modified rod adapter in front. The reduced weight is the result of a thinner design, and the rod adapter features one ratchet knob instead of two, allowing quicker rod adjustments. For attaching a matte-box and other accessories, the rod adapter can be adjusted vertically if you remove the screw holding it in position. This baseplate also supports optional SHAPE 15mm Studio and 19mm Studio adapters in place of the included one.

The baseplate features three camera mount slots, all supporting 1/4"-20 and 3/8"-16 screws. The off-center slots allow you to mount your camera offset if you use a 15mm Studio Adapter. 1/4"-20 and 3/8"-16 mounting threads are peppered behind the three slots for attaching articulating arms and other accessories. Two 1/4"-20 and two 3/8"-16 camera mount screws are included. This baseplate is best used with cameras that use external viewfinders.

Telescopic Handle for ARRI Rosette

The Telescopic Handle for ARRI Rosette from SHAPE is a versatile and adjustable handgrip that attaches to an ARRI standard rosette on the left or right side of your camera rig. It offers 1.5" of extension and uses push-button mechanisms on the extension arm and handle for adjusting the height and rotation of the handles to meet your needs and preference. The push-button on the handle is a huge benefit when you want to adjust the angle on-the-fly, without having to remove your hand or set down the rig.

In the Box

• Bundle Items
• BP0008 V-Lock Quick Release Baseplate
• 15mm LWS Rod Adapter
• 15mm Aluminum Rods (Pair, 8")
• 15mm Aluminum Rods (Pair, 4")
• 2 x 1/4"-20 Camera Mount Screws
• 2 x 3/8"-16 Camera Mount Screws
• Allen Key
• Telescopic Handle for ARRI Rosette
