Shape Canon C200 Offset Shoudler Mount

Shape SH-C200-OF (SHC200-OF, SH/C200-OF, SH C200-OF, C200-OF, sh-c200-of) Canon C200 Offset Shoudler Mount

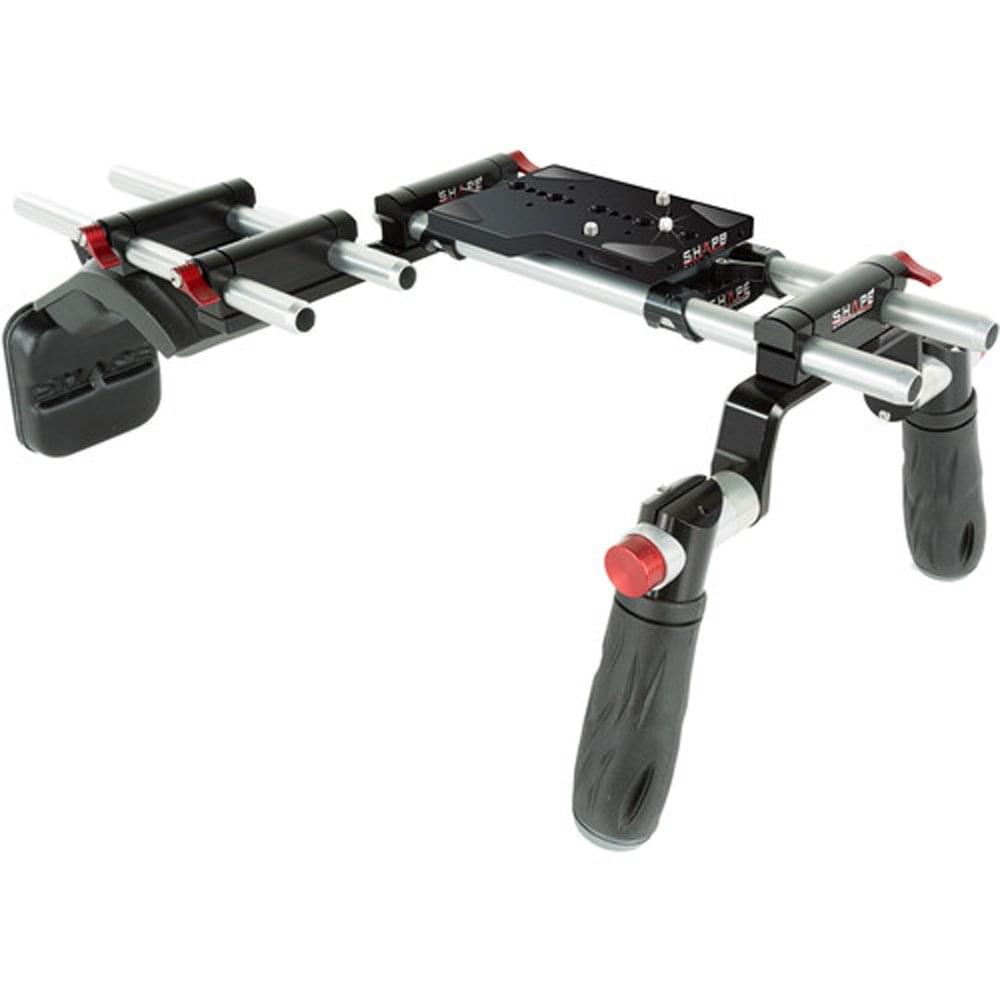

The SHAPE Offset Rig for Canon EOS C200 is for handheld shooting and specifically designed to work with the C200 cinema camera. It includes one Canon C200 Baseplate, one PAD3 Mini Composite Shoulder Pad, one PAD1 Composite Shoulder Pad, one HAND5 Quick Handle with Rod Block, two each 15mm 10" and 12" aluminum rods, and one Offset Bracket for Blackmagic Cage.

The Canon C200 Baseplate attaches underneath the camera via 3/8”-16 and 1/4”-20 screws. It comes with a pair of 15mm rods that are 12” long through the length of the baseplate. The Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig.

The HAND5 Quick Handle features two handles that can rotate individually on a 360° axis by pushing the red push button system. Once the buttons are released, the handles are secured firmly in place. You can achieve precise positioning by sliding the Rod Bloc system along the 15mm rods, securing the handles by tightening the single red knob on the Rod Bloc.

Baseplate with 15mm Rod System for Canon C200 Camera

The SHAPE Baseplate is designed for use with the Canon C200 camera. It comes with a pair of 15mm rods that are 12" long through the length of the baseplate. The baseplate features three attachment points for securing your camera and tripod plate attachment via three 1/4"-20 mounting holes.

Quick Handle + Rod Block

The Shape Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal.

Combined with the anodized aluminum Rod Block, the Quick Handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block. With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.

Mini Composite Shoulder Pad

The SHAPE Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig. Outfitted with a 15mm-mount SHAPE Rod Block, the pad attaches right onto a pair of 15mm rods, slides into the best position on them, and tightens in place by a quality lever. It also has a black Screw Knob under which you can add a SHAPE Counter Weight or a SHAPE Back Pad, both optional and both back-supported accessories that work as extensions of the shoulder pad. The Screw Knob's screw is a 1/4"-20 screw. If you remove the Screw Knob, you'll have yourself a 1/4"-20 screw-hole to add various 1/4"-20-mount accessories into.

Back Pad

The Back Pad from SHAPE is a standard rig component included with most SHAPE camera rigs. Its design features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. The pad is easy to both attach and remove from your rig, and it supports the SHAPE BOX attachment. Additionally, the pad's position can be adjusted to the user's preference – up to 2" vertically and 360° horizontally.

15mm Aluminum Rods (Pair, 10")

This pair of Shape 15mm Aluminum Rods (10") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.

The rods are each 15mm in diameter, 10 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.

15mm Aluminum Rods (Pair, 12")

This pair of Shape 15mm Aluminum Rods (12") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.

The rods are each 15mm in diameter, 12 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.

Off-Set Bracket for Blackmagic Cage

The SHAPE Off-Set Bracket will fit on the SHAPE Blackmagic Cage and Shoulder Mount.

Baseplate with 15mm Rod System for Canon C200 Camera

• Material : CNC-Machined aluminum
• Dimensions (WxHxD) : 4 x 4 x 1.31" (101.6 x 101.6 x 33.2 mm)
• Weight : 0.79 lb (0.35 kg)

Back Pad

• Material of Construction : Anodized aluminum

Adjustments:

• Up/Down: 2" (5 cm)
• Right/Left: 360°

Weight : 0.5 lbs (0.2 kg)

15mm Aluminum Rods (Pair, 10")

• Diameter : 15 mm
• Length : 10 inches (25.4 cm)
• Material : Aluminum with a clear finish applied over it

15mm Aluminum Rods (Pair, 12")

• Diameter : 15 mm
• Length : 12 inches (30.5 cm)
• Material : Aluminum with a clear finish applied over it

In the Box

• Bundle Items
• Baseplate with 15mm Rod System for Canon C200 Camera
• 15mm Aluminum Rods (Pair, 12")
• Allen Key
• Quick Handle + Rod Block
• Mini Composite Shoulder Pad
• Rod Block
• Camera Screw Knob (1/4"-20)
• Back Pad
• 15mm Aluminum Rods (Pair, 10")
• 15mm Aluminum Rods (Pair, 12")
• Off-Set Bracket for Blackmagic Cage
