Shape Telescopic Support Arm with Rod Bloc

Shape SH-ARM2 (SH_ARM2, SHARM2, SH/ARM2, SH ARM2) Telescopic Support Arm with Rod Bloc

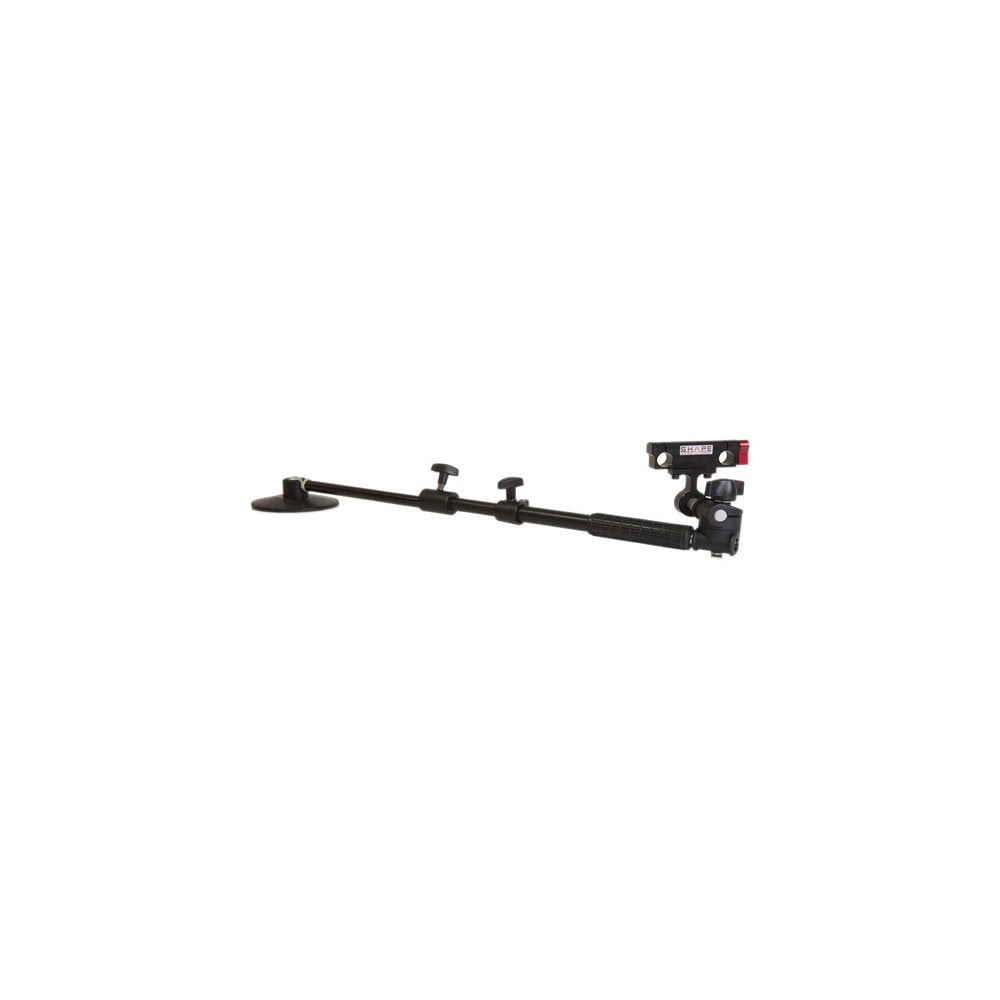

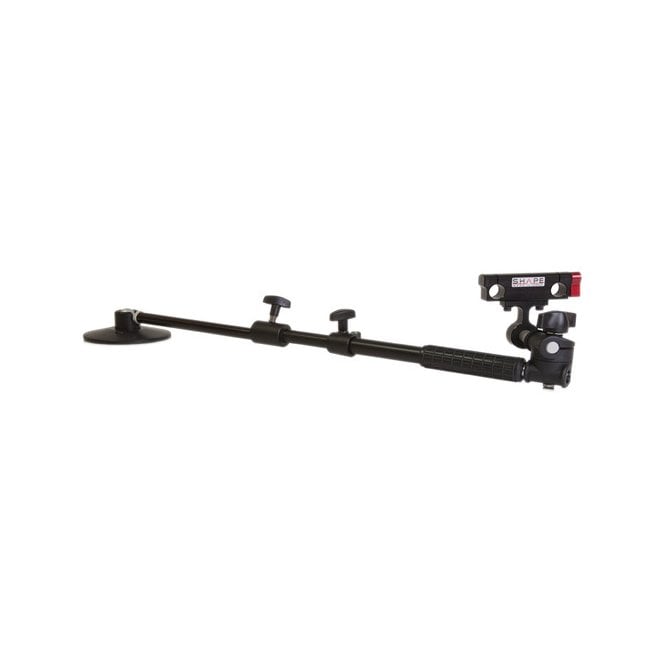

The Telescopic Support Arm with Rod Bloc from SHAPE is a variable length support arm designed to stabilize a shoulder rig while keeping the user mobile. The unit consists of a telescopic arm, Rod Bloc, and multi-function shoe which can be independently adjusted to the user's preference.

The telescopic arm is a simple aluminum support which may be adjusted at two points, from a minimum length of 14" to a maximum of 20". The top end of the rod is capped by an adjustable single-knob joint which supports and positions the CNC machined aluminum Rod Bloc—the attachment point for a shoulder-mounted rig. At the arm's base is an internal spring designed to provide added control when tilting vertically, allowing the user to capture a more stable image while in motion.

The bottom end of the telescopic arm is fitted with SHAPE's multi-function shoe—a cup-style base designed to rest against the user's torso or in a support belt for additional stability. If needed, the shoe may be removed so that the arm may be used as a boom, providing a connection point for a monitor, microphone, light, and more.

• Diameter: Cup Diameter: 4" (10cm)
• Arm: Extension: 14-20" (36-51cm), Rotation: 360°
• Material of Construction: Aluminum & stainless steel
• Length: 14 to 20" (35.5 to 50.8 cm)

In the box

• Shape Telescopic Support Arm with Rod Bloc
