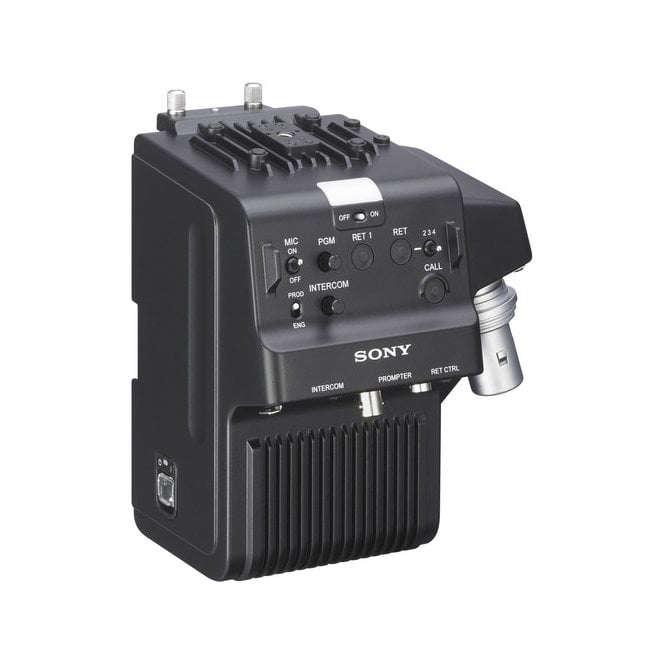

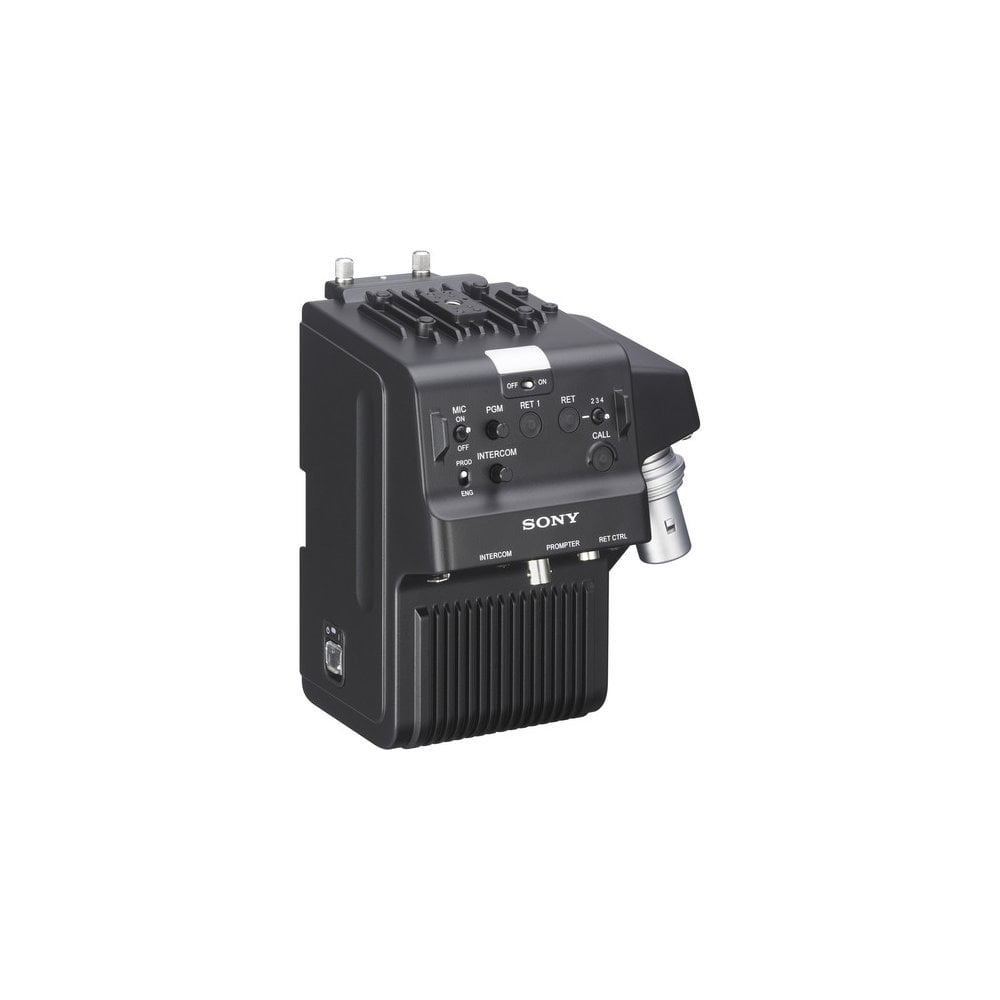

Sony Digital Triax Adapter

Sony CA-TX70F//U (CATX70FU, CA TX70F U, CA/TX70F//U, ca-tx70f//u, ca-tx70f) Digital triax adapter for HXC-D70 and PMW-320/350/400/500 camcorders

Enables connection via digital triax to HXCU-TX70 Camera Control Unit

The CA-TX70 digital triax adaptor for the HXC-D70 studio camera and PMW-320/350/500 camcorders, allows connection to the popular HXCU-100 digital triax Camera Control Unit (CCU).With the CCU, it is possible to control the HXC-D70 and PMW-320/350/500 up to a maximum distance 1200 mt. with 14.5mm cable and 600 mt with 8.5mm cable, including the power and signals of Tally, Intercom, Video Return and also Prompter.

• CBK-HD02 is required when the CA-FB70 or CA-TX70 is configured with PMW-500.
• CBK-CE01 is required when the CA-FB70 or CA-TX70 is configured with PMW-400/350/320.

Operates with HXCU-TX70

• The CA-TX70 works seamlessly with the HXCU-TX70 digital triax Camera Control Unit (CCU). The HKCU-FP2 optional front control panel can be attached onto the HXCU-TX70.

Digital triax connection

• The CA-TX70 helps ensure the best picture quality and easy integration of the HXC-D70 and PMW-320/350/400/500 using conventional triax infrastructure up to a maximum distance 1200 mt. with 14.5mm cable and 600 mt with 8.5mm cable.

Connection for all signals

• The CA-TX70 provides flexible integration and the possibility to extend the operation with all signals (Tally, Intercom, Video Return and Prompter) in full HD.

• Power Supply: 180VDC via CCU Connector
• Power Consumption: Max: 95W
• Operating Temperature: 14 to 113°F (-10 to 45°C)
• Storage Temperature: -4 to 140°F (-20 to 140°C)
• Dimensions (W x H x D): 5.6 x 6.9 x 5.5" (142 x 174.8 x 139.7 mm)
• Weight: 3.64 lb (1.65 kg)

Inputs/Outputs

• Camera/Camcorder: 1 x 50-pin
• CCU: Triax connector
• Prompter Output: 1 x BNC (1 Vp-p, 75Ω)
• Intercom: 1 x 5-pin XLR (Female)
• Return Control: 1 x 6-pin

In the box

• 1 x Digital Triax Adapter
• 1 x Set Cable Clamp Belt
• 1 x CA Bracket
• 2 x Screws for CA Bracket
• 1 x Accessory Shoe Kit
• 1 x Operating Instructions
• 1 CD-ROM
