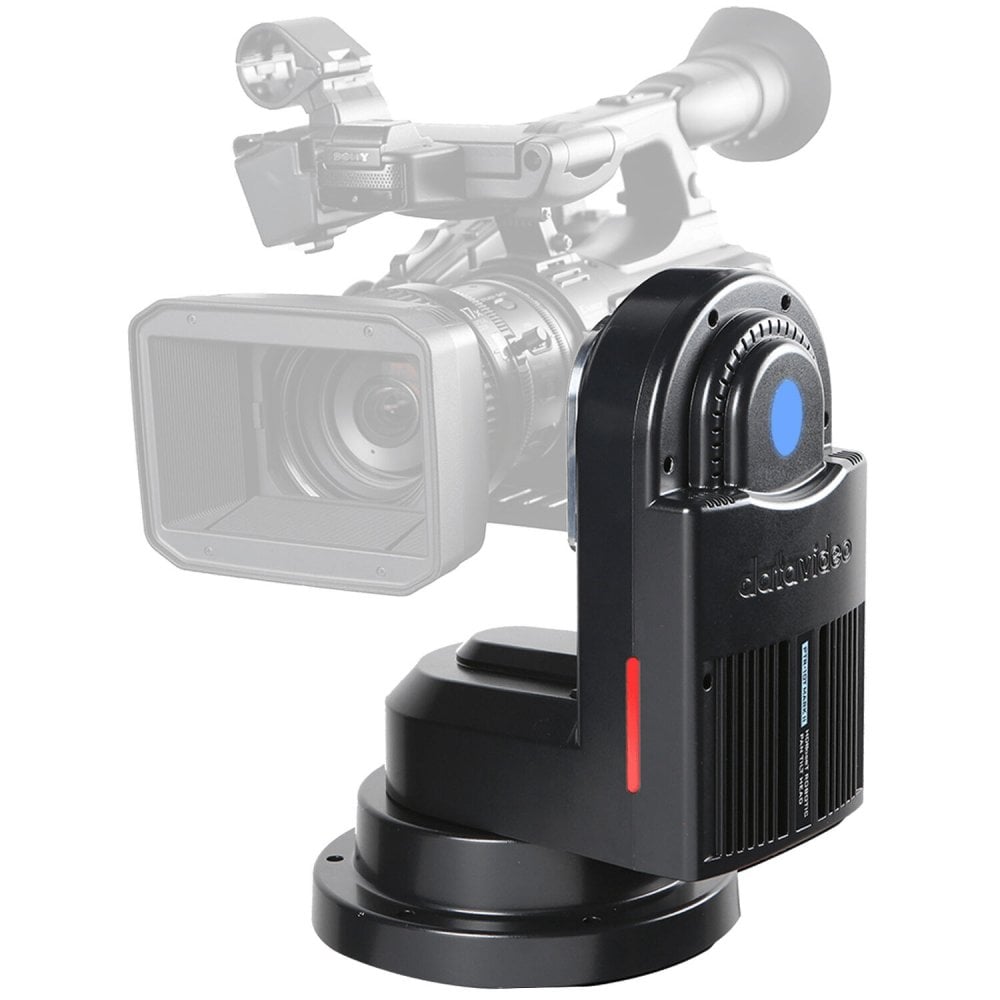

Datavideo PTR10T Pan Tilt Head with HDBaseT

Datavideo PTR10T Pan Tilt Head with HDBaseT(DATA-PTR-10TMKII)

HDBaseT Robotic Pan Tilt Head

Turn camcorder into PTZ

Control of Pan, Tilt, Zoom. Supports Zoom control of Datavideo block cameras and various brand lens.

Multiple signal interface

PTR-10T supports a lot of signal interface for passing through the remote head. Amongst these interfaces are SDI, HDMI, RS-232, RS-422, HDBaseT, Tally, and LANC.

Diversified controller options

RMC-180, HS-1600T, HS-1500T with Control of Pan, Tilt, Zoom and much more

Strong and sturdy aluminium alloy material design

Tally light built-in, great design for Live event. PTR-10T is built from aluminium alloy, making it a very sturdy base for your camera. It can support cameras up to 4 kilograms.

Supports Zoom control

Tally light built-in, great design for Live event

Video Interface HDMI x 1

SDI x 1

HDBaseT x 1 (HDBaseT)

Video Output 2160p 29.97/25

1080p 59.94/50

1080i 59.94/50

720p 59.94/50

Control Unit RMC-180

RMC-300C

VISCA Protocol Controller

IP Control

IR remote

Panning / Tilting Range Pan: 340°

Tilt: ±45°

Panning / Tilting Speed Pan: 0.2~15° /Sec

Tilt: 0.1~10° /Sec

Preset Pan/Tilt position 50

Control Distance 1,200M by RS422

100M by DVIP

Control Protocal Sony VISCA

DVIP

Control Input RS-422

HDBaseT

Maximum Load 4 KG Max

Control Output RS-232

RS-422

BX-Lens

LanC

Power Requirement DC 12V~ 18V, 3A (Without Camera)

DC 12V~ 18V, 5A (With Camera)

Power Supply DC 12V, 2A Max

Operating Temp. Range 0~40 C°

Operating Humidity Range 10~80%

Storage Temp. Range -10~60 C°

Storage Humidity Range 5~80%

Weight 3.4 kg

Dimension (LxWxH) 230 x 190 x 300 mm

In the Box

Datavideo PTR-10T Mark II Robotic Pan and Tilt Head (HDBaseT)

IR Remote

AC Adapter

AC Cable

D-Tap to DC Cable

HDMI Cable

SDI Cable

2.5mm to 8-Pin Mini DIN Remote Cable

2 x Screw (1/4" x 14mm)

Screw (1/4" x 10mm)

Screw Adapter (1/4"-20 to 3/8"-16)
