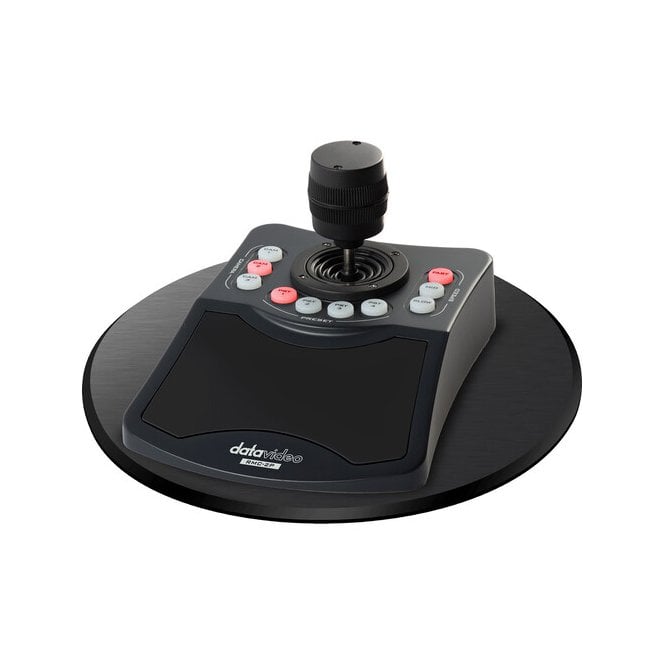

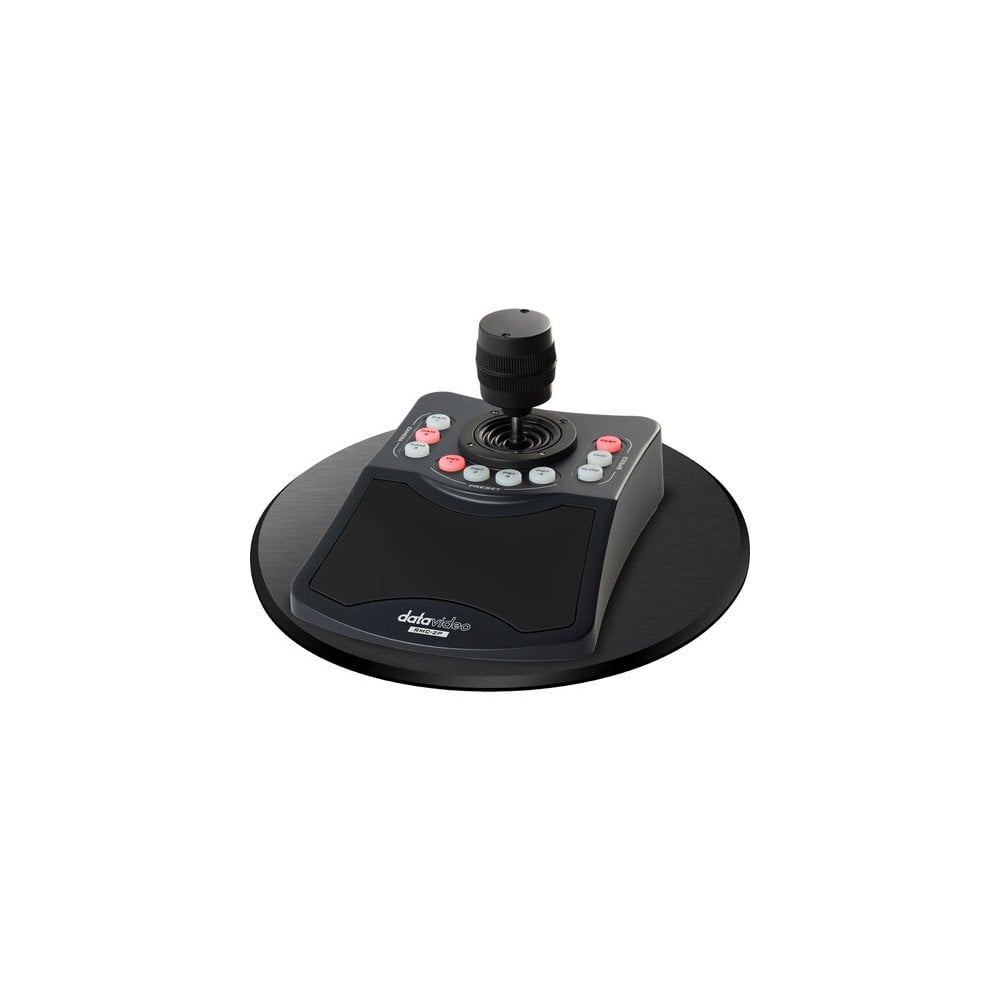

Datavideo RMC-2P 3-Channel Camera Controller

Datavideo RMC-2P 3-Channel Camera Controller(RMC-2P)

The Datavideo RMC-2P is a versatile camera controller designed for precise control of PTZ series cameras via DVIP. With four preset positions for each camera and a 3-axis joystick, users can effortlessly pan, tilt, and zoom for professional-level camera movements. The RMC-2P also offers support for Power over Ethernet, allowing for a clean and streamlined setup. It can control up to three cameras simultaneously and allows for quick and precise positioning with preset options. It is compatible with the TPC-700P touch panel controller and iCAST mini, and its stable aluminium base plate ensures enhanced stability during operation. Tutorial videos are also available through Datavideo Academy for easy mastery of the RMC-2P.

Datavideo products, including the RMC-2P, are widely used in various applications such as live events, conferences, and broadcasts. The RMC-2P offers unparalleled functionality with its DVIP control and can be integrated into existing network infrastructures. It is designed for intuitive control and is specifically compatible with the TPC-700P touch panel controller and iCAST mini. With its anti-slip base plate and tutorial videos available through Datavideo Academy, the RMC-2P provides a professional and effortless camera control experience.

Maximum Camera Control 3

Preset (Position) 4 for each camera

Control Protocol Datavideo DVIP

Connection to Cameras Ethernet

Input/Output USB 2.0 x1

10/100Mbps Ethernet (RJ-45 connector) x1

Build-in Control Panel ---

Firmware Upgrade Via USB

Dimension 134x169x97mm

Weight 0.36 kg

Operating Temp. Range 0°C ~ 40°C (32°F~104°F)

Storage Temperature - 10°C ~ 60°C (14°F~140°F)

Operating Humidity 10 % to 80 % (non-condensing)

Power DC 5V, 8W or IEEE 802.3af

In the Box

1x RMC-2P main unit

1x USB type C to type A cable

1x Bottom Plate
