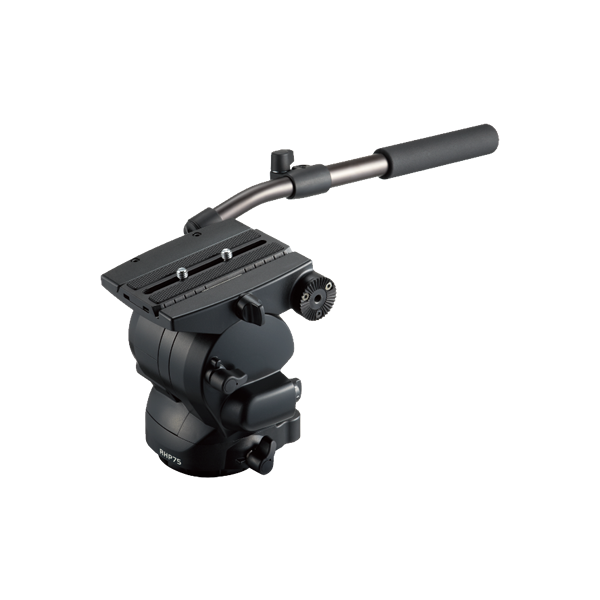

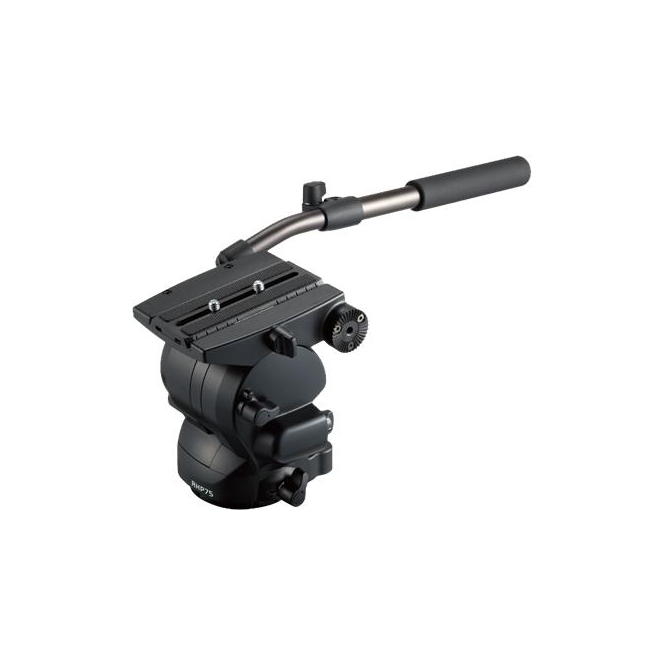

Libec RHP75 Fluid Head

Libec RHP75 (RHP-75, RHP/75, RHP 75) Fluid Head

The Libec RHP75 Fluid Head with PH-8B Extendable Pan Handles features the fully adjustable Continuous Counterbalance technology. It offers optimal counterbalance, as well as Balance Stabilizer Mechanism that prevents the slightest wobble on your image, while providing a smooth balancing system.

The Fluid Head features a 7-step pan and tilt torque switch that covers a wide torque range. The one-touch attachment and release ensures that the camera plate can be attached and detached with just a touch, enabling fast and easy setup. The Fluid Head comes with the PH-8B Pan Handle with rubber grip that can stop the camera precisely at any tilt angle.

The Fluid Head is capable of operating at temperature of -40°F. The Fluid Head features a 100mm diameter ball head. It is designed for use with ENG (Electronic News Gathering) cameras that can capture fast moving objects.

It is capable of handling a payload of 37.5 lb.

Camera Plate

• Camera Plate Features: Sliding Balance Plate
• Camera Mounting Screw: 2 x 3/8"-16 Male
• Balance Plate Sliding Range: 4.3" / 110 mm

Tripod Platform

• Base Mount: 100 mm Half Ball

Pan & Tilt

• Drag Control: 7-Step
• Vertical Tilt: +90° to -70°

Physical

• Load Capacity: 37.5 lb / 17 kg
• Counter Balance: Continuous (12 to 31 lb / 5.5 to 14 kg)
• Bubble Level: 1 x Illuminated
• Base Diameter: 3.93" / 100 mm
• Operating Temperature: -40 to 140°F / -40 to 60°C
• Weight: 8.4 lb / 3.8 kg

In the box

• Libec RHP75 Fluid Head with PH-8B Extendable Pan Handles
• Libec PH-8B Extendable Pan Bar Handle for RHP75, RHP85, and LX10 Video Heads
