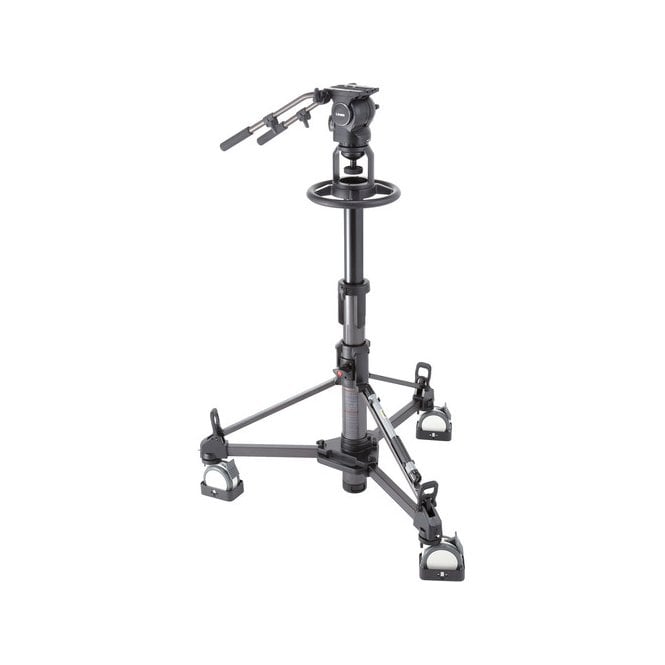

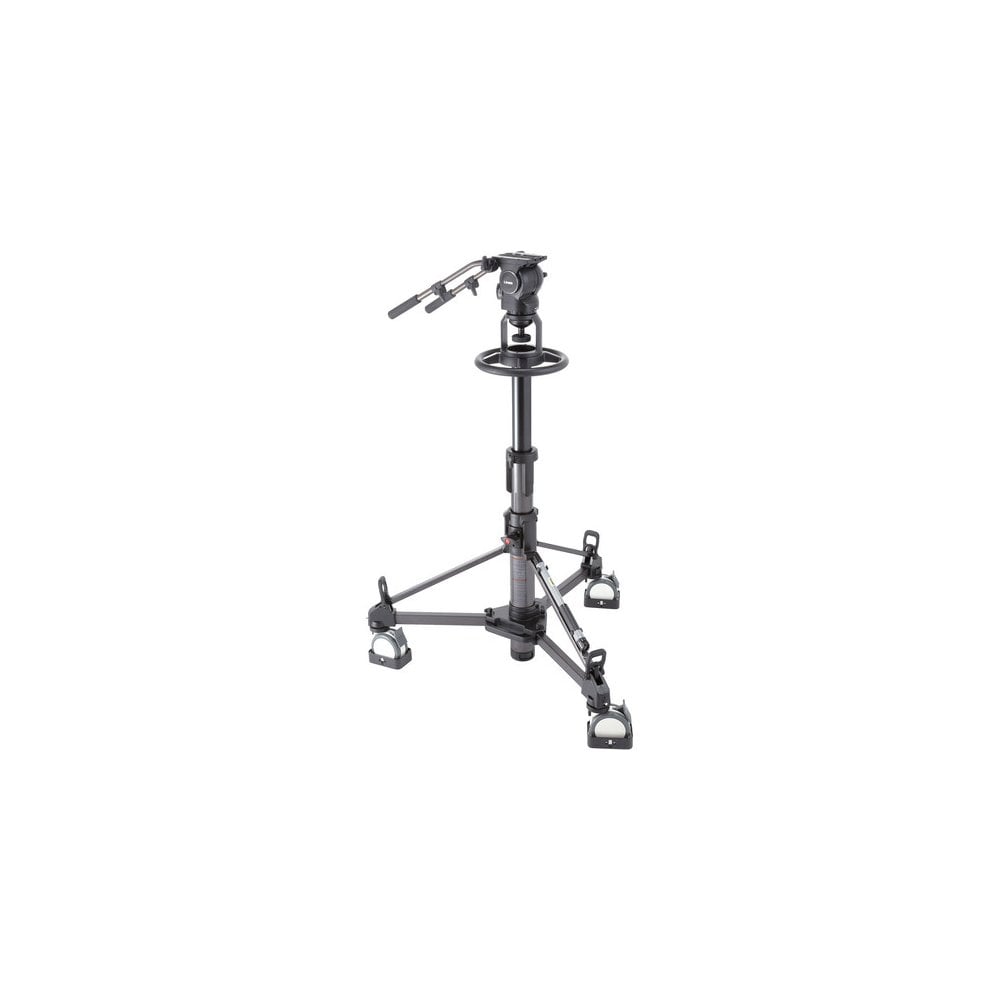

Libec RSP-750PD-S Pedestal System for Studio Broadcasting

code: RSP-750PD-S
  • £4,582.33
  • RRP: £5,950.00
Availability | Usually dispatched within 24 hours
Loading...

Features

  • Fully Adjustable Head
  • Continuous Counterbalance Technology
  • Drag & Torque System
  • Balance Stabilizer Mechanism


Libec RSP-750PD-S (RSP_750PD_S, RSP/750PD/S, RSP 750PD S) Pedestal System for Studio Broadcasting

RHP75 Head:

Counterbalance Technology

The spring tension of the head can be precisely adjusted according to the weight of the mounted camera using the counterbalance adjustment knob, this provides a perfect counterbalance between the camera weight and the inner spring tension at any tilt angle.Libec’s unique balance stabilizer mechanism prevents even the slightest wobble on the image caused by the spring-back effect at a stopping tilt movement. In addition, this mechanism greatly simplifies the strict adjustment procedures needed for the perfect balancing. First turn the tilt torque dial to 1 and balance the camera lengthwise, then adjust the spring tension by turning the counterbalance adjustment knob. Tilt the camera once the camera remains stationary, then the counterbalance adjustment is complete. This way the perfect counterbalance is easily achieved, which ensures a stable image even when the pan handle is released from the shooters hands.

Generally, the spring tension gets stronger as the counterbalance adjustment knob is turned clock wise increasing tension on the knob. The difficulty is simplified by the heads smooth balancing system which stabilizes the turning force efficiently. The knob can be turned with constant force and offers easy and speedy adjustment.

Torque System

The sealed torque unit contributes to the smooth start and stop of pan and tilt movement, and produces precise camerawork just as intended. In addition, specific silicon grease is applied to ensure ordinary pan and tilt movement at a wide temperature range from 40c up to 60c. The variable seven step torque switch system covers remarkably wide torque range, by which an optimum toque is selectable according to every shooting conditions and circumstances.

Snap On/Off Plate

The Camera Plate is attachable and detachable with just one touch, promoting speedy and easy set up.

P110S Pedestal:

These Compact pedestals are designed for both outside broadcasting and studio shooting, with a maximum load weight of 30kg (head included). Set up is easy by using the supplied air pump to adjust the air pressure according to the weight of your camera and accessories. In addition the double bearing system is applied to prevent wobbling generated by quick vertical motion which ensures smooth movement

PH-8B Pan Handle:

An extendable pan handle compatible with the RHP75, RHP85 and LX10

View More Details

RHP75 Head:

  • Counterbalance range: 5.5 to 14kg / 12.0 to 31.0lb (C.G.125mm)
  • Ball Diameter: 100mm
  • Payload: 17kg / 37.5lb
  • Counterbalance : Continuous
  • Drag mode: 7STEP
  • Tilt angle: +90° / -70°
  • Pan angle: 360°
  • Temperature range: -40°C to +60°C / -40°F to +140°F
  • Bubble level: Illuminated
  • Camera plate: Sliding plate
  • Sliding range: +/-55mm / 2.2"
  • Plate attachment: 3/8" screw × 2
  • Spare screw: 3/8" screw
  • Weight: 4.0kg / 8.8lb

P110S Pedestal

  • Payload: 30kg / 66lb (Including head)
  • Weight: 18.6kg / 40.9lb
  • Height: 81 to 156cm / 32.0 to 61.5"
  • Ball diameter: 100mm
  • Column: 2STAGE

PH-8B Pan Handle

  • Length: 350mm
View More Details

In the box

  • 1x RHP75 Head
  • 1x P110S Pedestal
  • 2x PH-8B Pan Handle
View More Details
