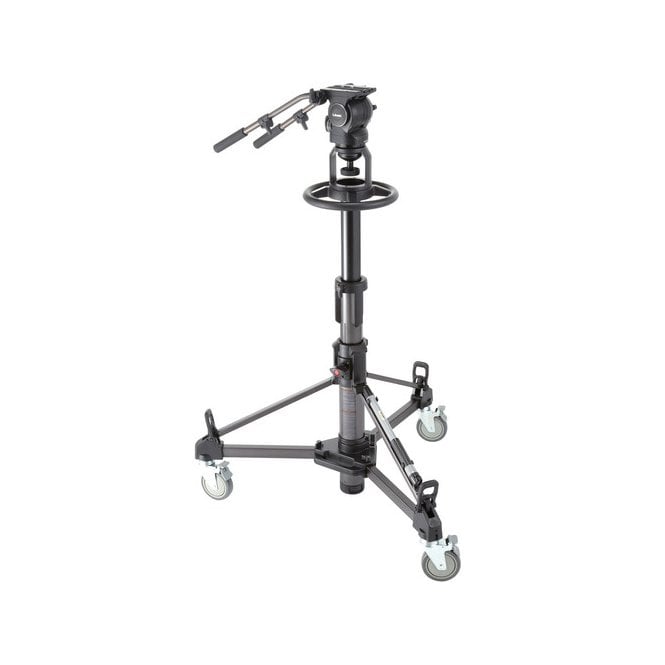

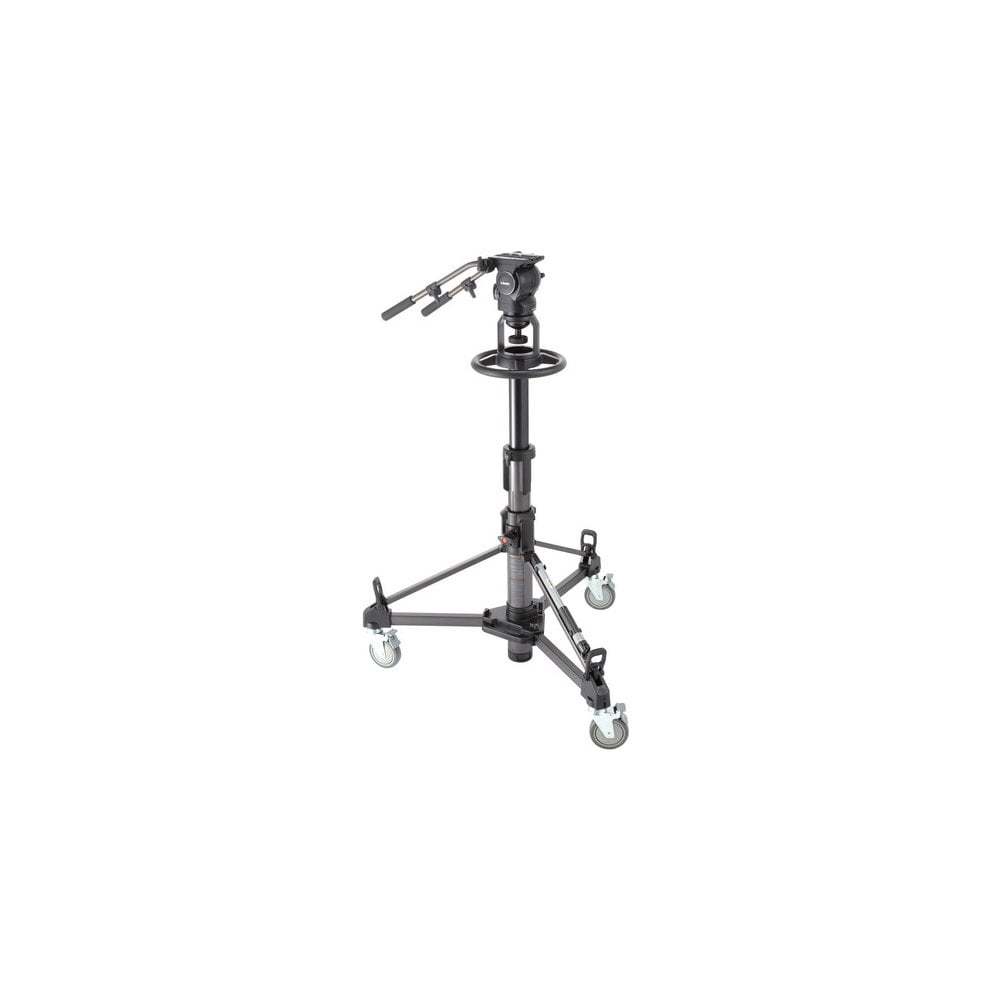

Libec RSP-850PD-B (RSP_850PD_B, RSP/850PD/B, RSP 850PD B) Professional Pedestal System
The spring tension of the head can be precisely adjusted according to the weight of the mounted camera using the counterbalance adjustment knob, this provides a perfect counterbalance between the camera weight and the inner spring tension at any tilt angle.Libec’s unique balance stabilizer mechanism prevents even the slightest wobble on the image caused by the spring-back effect at a stopping tilt movement. In addition, this mechanism greatly simplifies the strict adjustment procedures needed for the perfect balancing. First turn the tilt torque dial to 1 and balance the camera lengthwise, then adjust the spring tension by turning the counterbalance adjustment knob. Tilt the camera once the camera remains stationary, then the counterbalance adjustment is complete. This way the perfect counterbalance is easily achieved, which ensures a stable image even when the pan handle is released from the shooters hands.
Generally, the spring tension gets stronger as the counterbalance adjustment knob is turned clock wise increasing tension on the knob. The difficulty is simplified by the heads smooth balancing system which stabilizes the turning force efficiently. The knob can be turned with constant force and offers easy and speedy adjustment.
The sealed torque unit contributes to the smooth start and stop of pan and tilt movement, and produces precise camerawork just as intended. In addition, specific silicon grease is applied to ensure ordinary pan and tilt movement at a wide temperature range from 40c up to 60c. The variable seven step torque switch system covers remarkably wide torque range, by which an optimum toque is selectable according to every shooting conditions and circumstances.
Snap On/Off Plate
The Camera Plate is attachable and detachable with just one touch, promoting speedy and easy set up.
These Compact pedestals are designed for both outside broadcasting and studio shooting, with a maximum load weight of 30kg (head included). Set up is easy by using the supplied air pump to adjust the air pressure according to the weight of your camera and accessories. In addition the double bearing system is applied to prevent wobbling generated by quick vertical motion which ensures smooth movement
PH-8B Pan Handle:
An extendable pan handle compatible with the RHP75, RHP85 and LX10
PH-8B Pan Handle:
In the box
