Constructed with a wooden platform attached to a steel tubing frame. The platform is fitted with a recessed camera tie-down and is carpeted for a non-slip, low maintenance surface.
Steering is accomplished with the use of a pull handle similar to a wagon, or it may be used in a secured upright position.
There is an angled fitting to allow the push bar to tilt down 340 for more clearance between the Dolly and the operator.
For extra low angles, the dolly can be inverted.
The rear wheels extend outward to provide greater operating stability.
All of the receivers have a Posi-V-Lock design when the pin is inserted, for a tight unitized fit.
Can be equipped with Matthews Hot Buttons for use on straight or curved track.

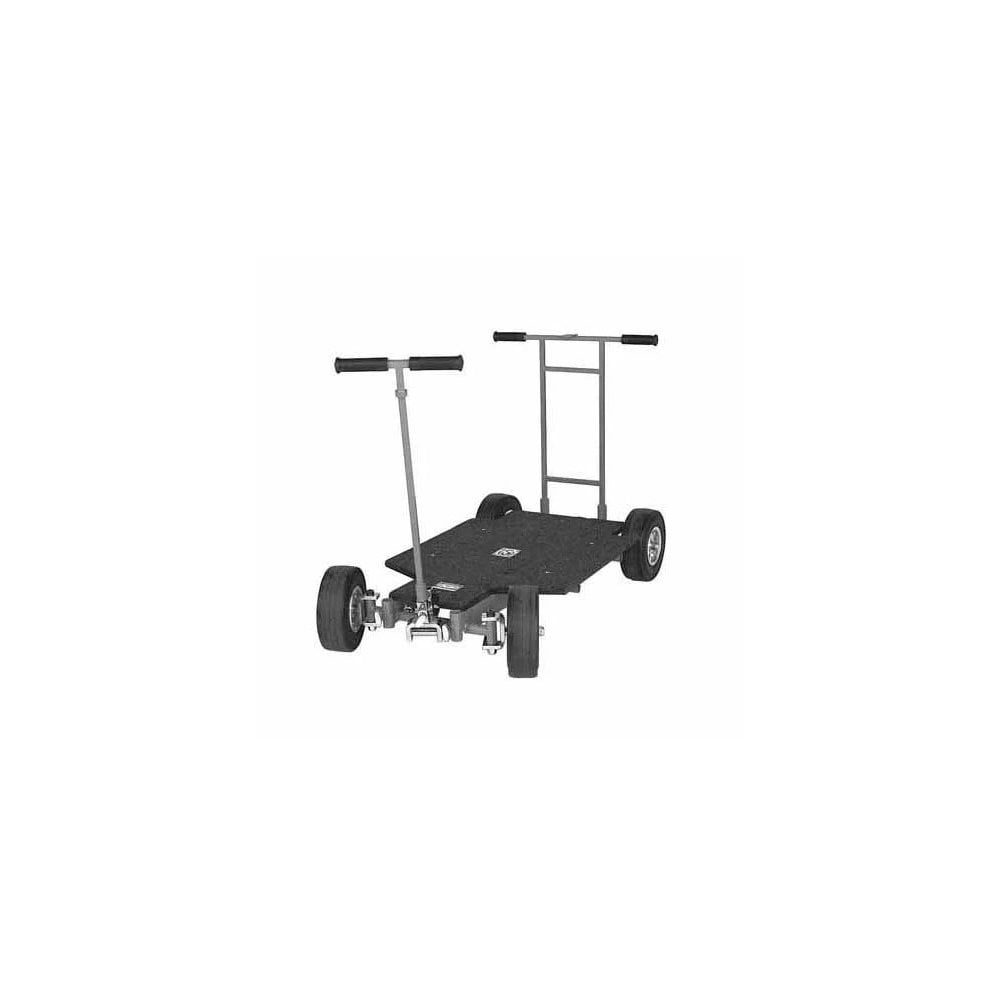

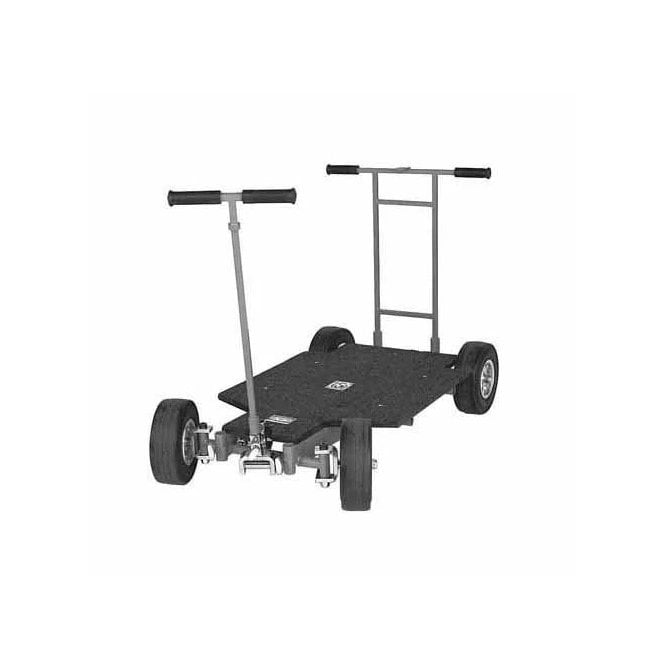

Matthews Doorway Dolly(395100)
Matthews builds the strongest platform dollies in the business! For years the Doorway Dolly has proven its versatility on stage and location. Quick change pneumatic wheels are standard equipment. The Dolly can easily be fitted with Matthews Hot Buttons for use on straight or curved track. The platform is fitted with a recessed camera tie-down and is carpeted for a nonslip, low maintenance surface.
The Doorway Dolly will move through a full range of travel with either the Push Bar or Pull Bar. Load it with gear to get to the location with ease! The platform can be flipped over for even lower camera positioning. Ground clearance is 9" or 3" when inverted. The removable side boards add an extra 10" per side for increased platform width.
The wheelbase is 28-1/4" wide and the platform length is 51". Hot Buttons can be easily installed to accommodate standard 24.5" width track. Weight Capacity 800 Lbs. (363kg)
The Doorway Dolly with Turret provides a 360 degree swing of both the camera mount and operator with all the functions of the standard dolly system. Mitchell mount and single operator seat are standard.
Box Dimensions (LxWxH)
53 x 31 x 12"
