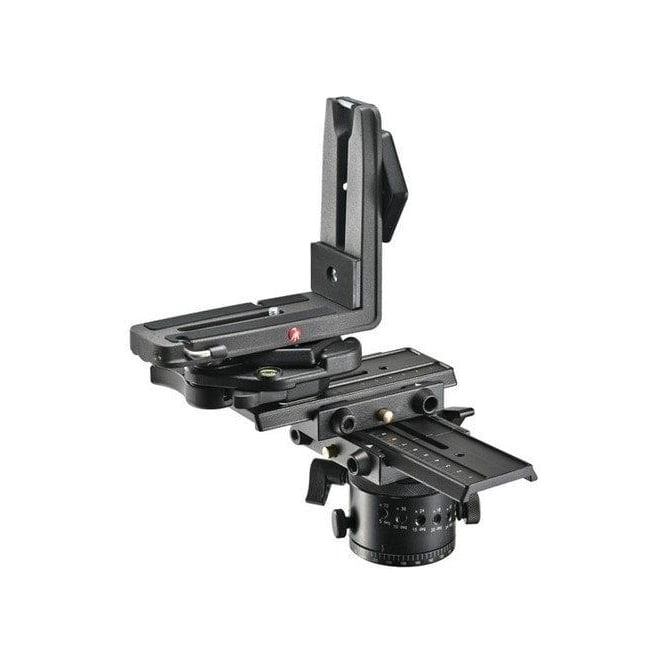

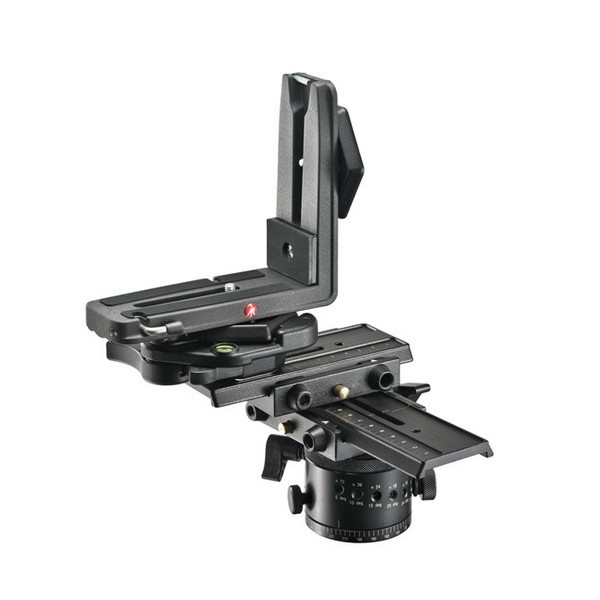

Manfrotto MAN-MH057A5 Virtual Reality and Pan Head

Manfrotto MAN-MH057A5 (MAN/MH057A5, MAN_MH057A5, MAN MH057A5, MANMH057A5, MH057A5, mh057a5) Virtual Reality and Pan Head

The MH057A5 pan head permits the photographer to take sequential constant-angle shots around a single axis with his or her camera either in portrait or landscape position, and with the nodal point of the camera/lens in line with the centre of panoramic rotation to ensure that parallax effects do not cause problems during image stitching. It is built around (and includes) the 300N panoramic unit, adding a system of sliding horizontal and vertical plates for accurate positioning of the camera nodal point. The plates have engraved index rules to make subsequent repositioning easier. The included quick release elbow bracket lets the photographer use the portrait orientation of the camera gaining vertical field. The system is suitable for most 35mm SLR still and digital stills cameras using wide-angle or standard lenses.

• Weight: 1.65 kg
• Top Attachment: 1/4″ screw
• Safety Payload Weight: 5 kg
• Base Diameter: 64 mm
• Front Tilt: -90° / 0°
• Material: Aluminium
• Plate Type: quick release - with 1/4-20″ and 3/8″ screws
• Colour: Black
• Easy Link: No
• Head Type: Other
• Independent Pan Lock: yes
• Lateral Tilt: -90° / 0°
• Maximum Working Temperature: 70 °C
• Minimum Working Temperature: -30 °C
• Pan Drag: NONE
• Panoramic Rotation: 360 °
• Quick Release: Yes
• Tilt Drag: variable (7 steps)
• Working Height: 28 cm

In the Box

• Manfrotto Virtual Reality and Pan Head
