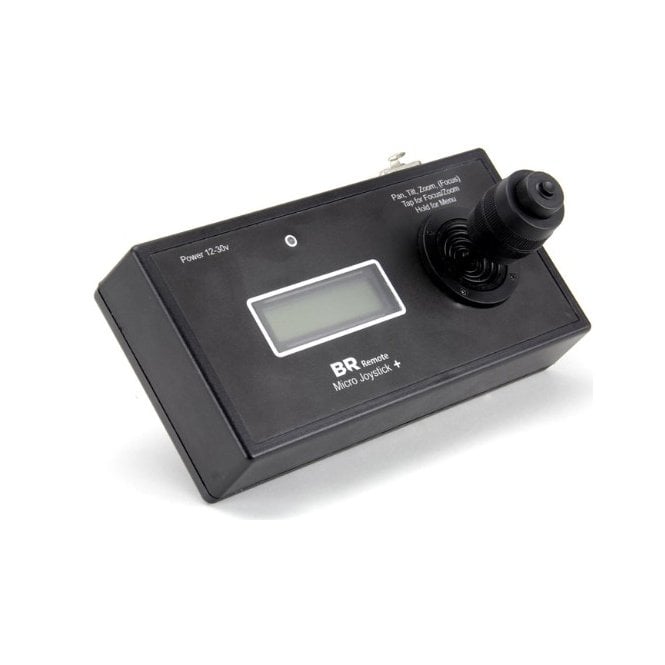

Marshall Micro Joystick Remote Controller V2 for CV-PT-HEAD

Marshall CV-MICRO-J2 (CV/MICRO-J2, CV/MICRO/J2, CVMICROJ2, CV MICRO J2) Micro Joystick Remote Controller V2 for CV-PT-HEAD

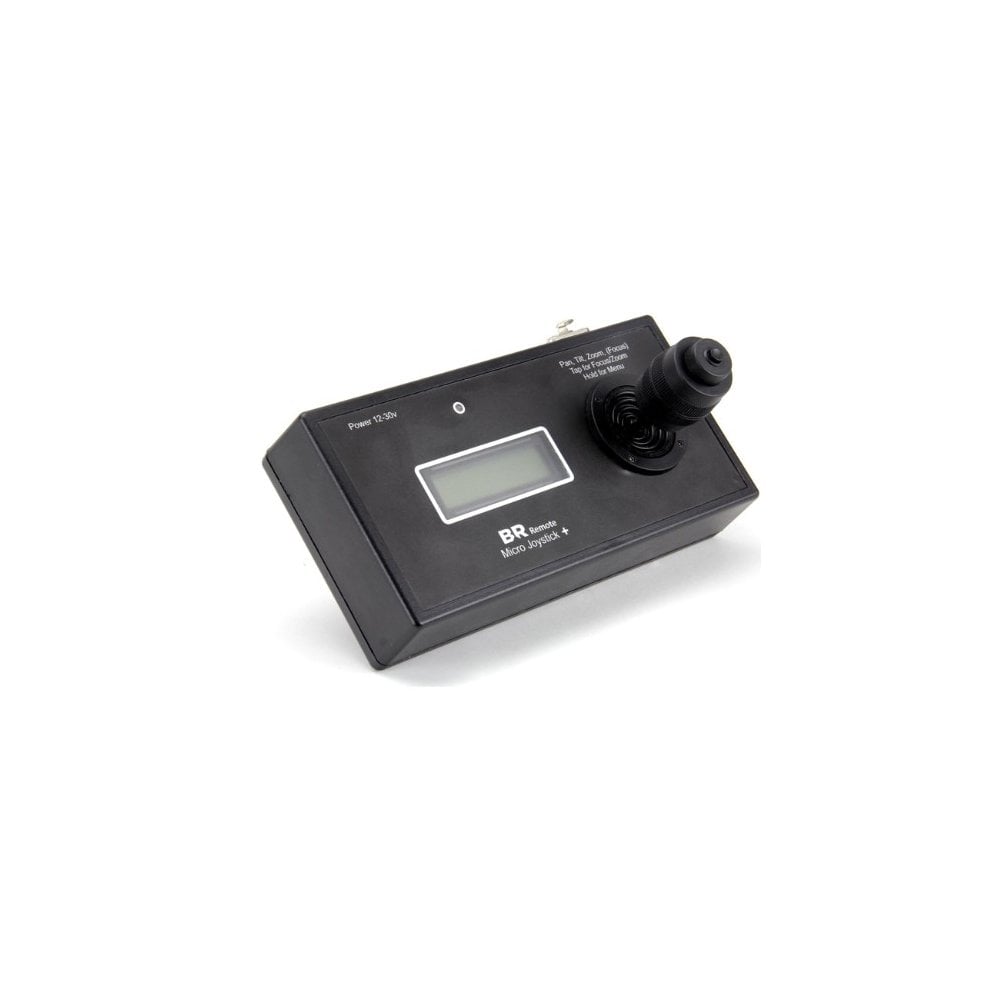

CV-MICRO-J2 is a full-size, cost-effective, menu driven joystick for Marshall Miniature Cameras & CV-PT-HEAD. For many applications, the functionality of this joystick is all that is required for straightforward and easy setup operation.

CV-MICRO-J2 can control and BR remote heads and various cameras. It can address any head ID from 1 ~ 32 and can even re-assign the ID of each PT Head. It employs a full-size, 3-axis joystick which enables simultaneous control of pan, tilt, zoom or pan, tilt & focus at a touch of the button. The joystick is also used to cycle through the extensive menu functions. It has both remote head and CCU functions built in.

Using the Lemo (base) to Hirose (camera) cable included in the CV-PT-HEAD box, it can accept data from RCP as well as power camera – camera control offers full CCU control of the camera.

• Power Connections: 12 – 35V @ 0.2A + connected head / DC Jack, 4-pin XLR on Flying Lead
• Joystick Functions: Pan, Tilt, Zoom, Focus & Menu Navigation
• Menu Functions: Pan & Tilt Speed & Direction / Head Select & Re-Assign Ident / Ramp Up/Down / Store & Go-To Pre-set Positions (16) / Set Home Position / White Balance / Red Gain & Blue Gain / Iris, Gain, Shutter / Auto Focus & Auto Iris / Master Pedestal, Gamma, Detail / Dynamic Range, Noise Reduction / Rec Run/Stop / Camera Protocol Select / Picture Standards, Picture Flip

In The Box

• Micro Joystick Remote Controller V2 for CV-PT-HEAD
