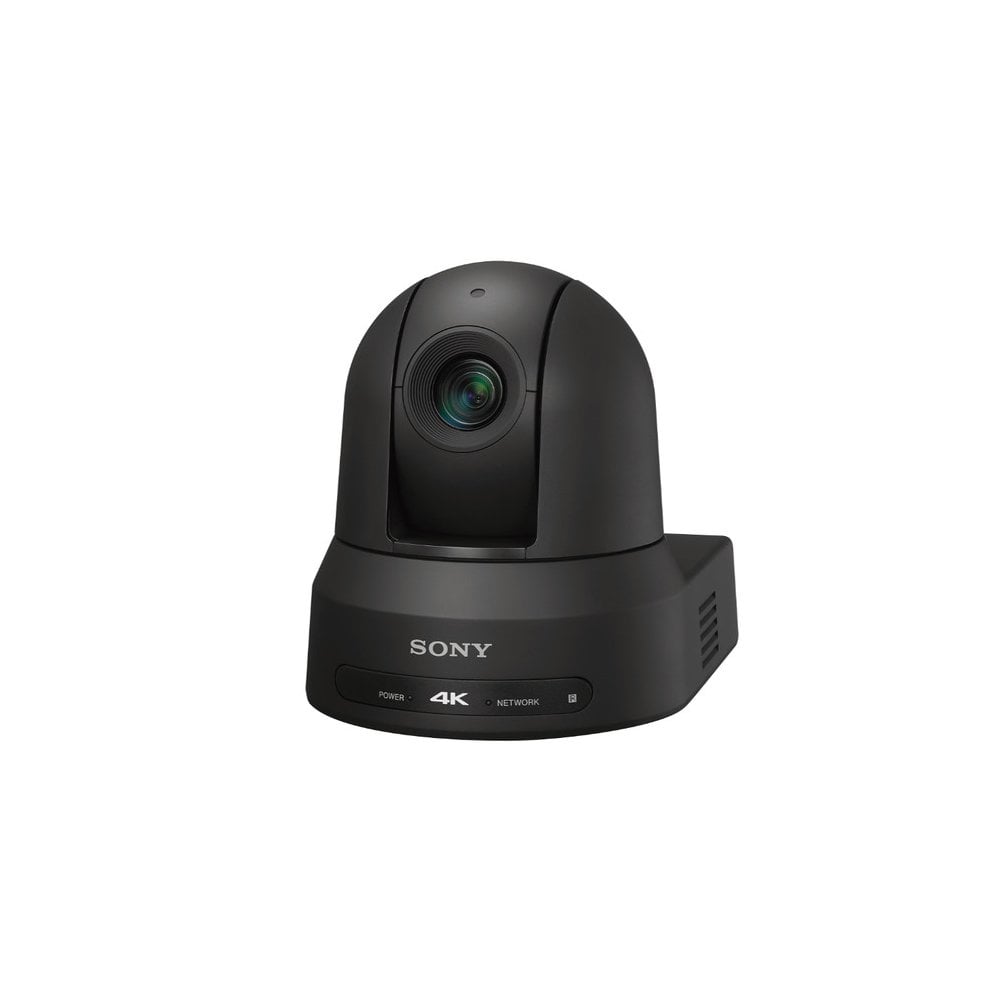

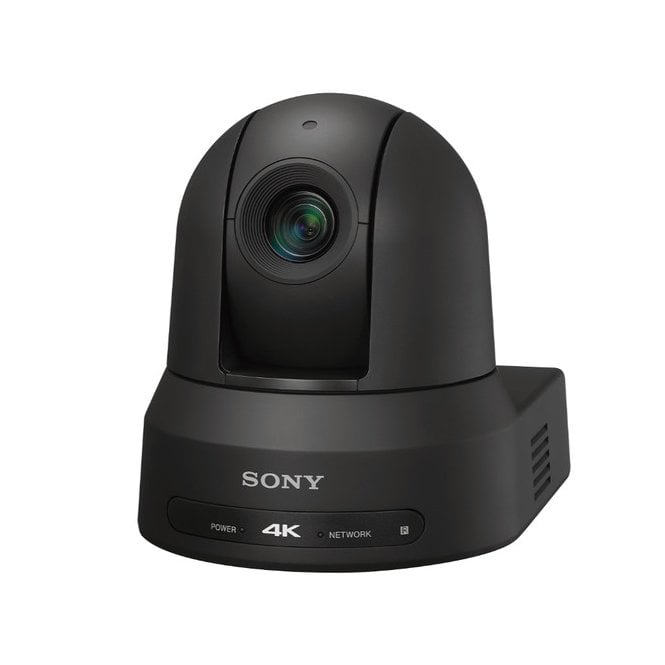

Sony BRC-X400B IP 4K Pan-Tilt-Zoom Camera

Sony BRC-X400B (BRC/X400B, BRC_X400B, BRCX400B, BRC-X400, brc-x400b) IP 4K Pan-Tilt-Zoom Camera

Capture every point of view in 4K with excellent picture quality and efficient IP production workflow

The versatile BRC-X400 PTZ camera is ideal for use in a wide range of environments - from broadcast studios and remote on-air suites to sports stadiums, arenas, houses of worship and lecture halls.

The camera's 1/2.5-type Exmor R™ sensor captures broadcast quality 4K images with excellent sensitivity, very low noise and rich, natural colour reproduction. It's complemented by the integrated high-resolution lens that offers a powerful zoom capability of up to 80x in Full HD** (30x in 4K), with an expansive approx. 70° wide angle coverage to capture every point of view.

Efficient IP-based live production is augmented with support for NDI®|HX (via optional license), allowing flexible configuration with other networked NDI-enabled devices.

Images also can be reviewing remotely via a web browser, with support for RTSP (Real Time Streaming Protocol), RTMP*** (Real Time Messaging Protocol) and SRT*** (Secure Reliable Transport) ensuring smooth, stable streaming of video plus audio (from an optional microphone, available separately) over an IP network.

Installation and set-up is easy, with a new Picture Setting File**** allowing the same settings to be applied to multiple cameras through a web interface from a laptop or PC. Convenient integration in multi-camera live events is also simplified with genlock support and an 'on-air' tally lamp.

* NDI® is a registered trademark of NewTek, Inc.

** With Clear Image Zoom and Tele Convert Mode

*** Requires firmware V3.00

**** Requires firmware V2.00

Camera

• Image Sensor: 1/2.5 Exmor R CMOS
• Image Sensor (Number of Effective Pixels): Approx. 8.5M pixels

Signal System:

• 2160/29.97p, 25p, 23.98p
• 1080/59.94p, 50p, 29.97p, 25p, 23.98p
• 1080/59.94i, 50i
• 720/59.94p, 50p

• 4K Capability: Yes (built-in 4K functions)
• Minimum Illumination (50IRE): 1.6 lux (1/30s 50IRE F2 high-sensitivity OFF)

Horizontal Resolution:

• 1700 TV lines (Center) (4K)
• 1000 TV lines or higher (Center) (FHD)

• Gain: Auto/Manual (0 to +48 dB) (High Sensitivity On)

Shutter Speed:

• 1/1 to 1/10000 sec (59.94 Hz system)
• 1/1 to 1/10000 sec (23.98 Hz system)
• 1/1 to 1/10000 sec (50 Hz system)

• Exposure Control: Auto, Manual, Priority AE (Shutter, Iris)
• White Balance: Auto1, Auto2, One Push WB Indoor, Outdoor, Manual
• Zoom Capability: 30x (4K with CIZ), 40x (HD with CIZ), Max. 80x (HD with CIZ* and Tele Convert Mode)

*CIZ = Clear Image Zoom

• Focusing System: Auto/Manual
• Horizontal Viewing Angle: Approx. 70° (Wide)

Focal Length:

• f=4.4 mm (Wide) to 88.0 mm (Tele)
• F2.0 to F3.8

Minimum Object Distance:

• 80 mm (Wide)~
• 800 mm (Tele)

Pan/Tilt Angle:

• Pan: ±170°
• Tilt: +90°/-20°

Pan/Tilt Speed (Max.):

• Pan: 300°/s
• Tilt: 126°/s

Pan/Tilt Speed:

• Pan: 1.1° to 101°/s
• Tilt: 1.1° to 91°/s

Pan/Tilt Speed (Slow):

• Pan: 0.5° to 60°/s
• Tilt: 0.5° to 60°/s

• Pan/Tilt Slow Mode: Yes
• Pan/Tilt Operation Noise: NC30 or less *

* Sony measurement conditions

Preset Position:

• 256 (CGI)
• 100 (VISCA)

• Picture Freeze Preset: Yes
• Preset Mode1/Mode2: Yes
• PTZ Trace Memory: Yes
• PTZ Motion Sync: Yes
• Camera Tracking Data Output: Yes (Requires firmware V2.10)

Network

• IP Video Resolution: 3840x2160, 1920x1080, 1280x720, 720x576, 720x480, 640x360

Compression Format:

• H.264: High, Main, Baseline Profile
• H.265: Main Profile

Maximum Frame Rate:

• H.264: 60fps
• H.265: 60fps

• Bitrate Compression Mode: CBR/VBR (selectable)
• Range of Bitrate Setting: 512 Kbps ~50 Mbps
• Multi Streaming Capability: 3
• Maximum Number of Clients: 5
• Protocols: IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, UPnP, VISCA over IP
• NDI®|HX Capability: Yes (requires a license sold separately)

Camera Features

Auto ICR

• (Auto mode of IR Cut filter Removal): Yes
• Day/Night: Yes
• Visibility Enhancer: Yes
• Image Stabilization: Yes
• Image Flip: Yes
• Picture Setting File: Yes
• Picture Profile Preset: Yes
• Color Gain: Yes (15 steps)
• Color Hue: Yes (15 steps)
• Color Matrix: Yes (STD, HIGH SAT, FL LIGHT, MOVIE, STILL, CINEMA, PRO, ITU709, B&W)
• Gamma: STD, STRAIGHT, 512 PATTERN, MOVIE, STILL, CINE1, CINE2, CINE3, CINE4
• Gamma Level: Yes (15 steps)
• Black level: Yes (97 steps)
• Black Gamma: Yes (15 steps)
• Knee Point: Yes (13 steps)
• Knee Slope: Yes (15 steps)
• Flicker Cancel: On/Off
• Color Bar: On/Off
• Color Bar Overlay Name: On/Off
• Hide OSD Menu: On/Off
• Standby Mode: Yes
• Remote Standby: Yes

Web UI

• Ver Up: Yes

Audio

• Channel: 2ch

Audio Codec:

• AAC LC 128kbps/ST (IP)
• AAC LC 256kbps/ST (IP)

Setting Option:

• Auto Level Control (ALC): On/Off
• Equalizer: Off, Low cut, Voice enhancement
• Input selection: Microphone/Line
• Mic volume: -10~+10 (21 steps)

Audio codec

• Embedded Audio in Baseband Video: Yes (3G-SDI, HDMI)
• Embedded Audio in IP Streaming: Yes

Interface

• 4K Video Output: HDMI x1 and IP (streaming) x1
• HD Video Output: 3G-SDI x1, HDMI x1, IP (streaming) x1
• Remote Video Format Switching: Yes

HDMI Color Space:

• YCbCr, 4:2:2 8 bit
• RGB, 4:4:4 8 bit

Camera Control Interface:

• VISCA RS-422 RJ45 (In/Out)
• VISCA over IP RJ-45
• S700PTP RJ-45

• IR Remote Control: Yes
• Microphone Input: Mini-phone (φ3.5mm) x2 (Mic/Line Selectabe)
• Sync. System: EXT/INT
• External Sync. Input: BNC, 75Ω, HD 3-level sync, SD Black Burst
• Tally: Front x 1
• Power Connector Type: IEC60130-10 (JEITA standard RC-5320A) TYPE4

General

• Power Requirements: DC 12V (DC 10.8 to 13.2V), PoE+ (IEEE802.3at compliant)
• Power Consumption: 25.5 W Max.

Operating Temperature:

• 0 °C to 40 °C
• 32 °F to 104 °F

Storage Temperature:

• -20 °C to +60 °C
• -4 °F to +140 °F

Dimensions (W x H x D)*:

• 1158.4 x 177.5 x 200.2 mm
• 6 1/4 x 7 x 8 inch

Mass *1:

• Approx. 1.8 kg
• 3 lb 15.5 oz

• Camera Body Color: Black
• Size of Screw Hole for Tripod: 1/4-20UNC x1
• Mountable Angle: < ±15°
• Ceiling Mount: Yes

In the Box

• Sony BRC-X400B IP 4K Pan-Tilt-Zoom Camera
• AC power adaptor (1)
• IR Remote Commander Unit (1)
• Ceiling bracket (2)
• Wire rope (1)
• Screw M3 x 8 (9)
• Screw M2.6 x6 BLACK (1)
• HDMI cable fixing plate (1)
• Safety regulation (1)
• Download site information (1)
