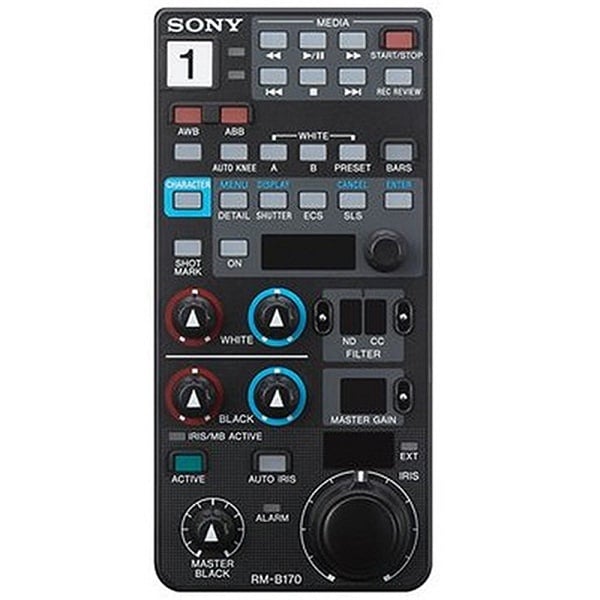

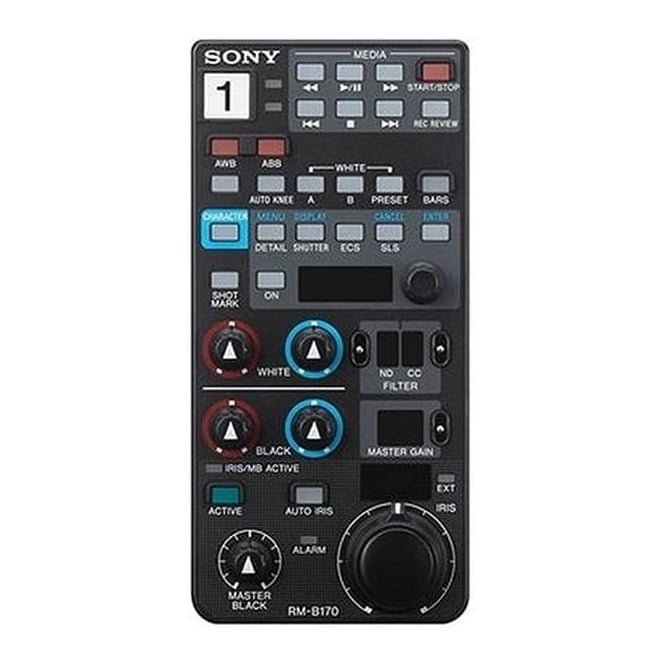

Sony Handheld Remote Control Unit

Sony RM-B170SYM (RMB170SYM, RM/B170SYM, rm-b170sym) Handheld Remote Control Unit

The RM-B170 remote control unit is the successor to the RM-B150. It provides an even more affordable solution for basic remote camera operations, with added features, including the remote control of media and the operation of clips of non-linear media. It can be directly connected to a camera or camcorder as a portable-type remote control unit or it can be connected to a CCU for use as a simple remote control panel. The RM-B170 can control a camera from a distance of up to 100m (328 feet) when connected directly to the camera.

For use with the following Sony cameras:

• HDCAM camcorders: HDW-700A, HDW-650, HDW-750, HDW-F900/H/R
• XDCAM HD422 Professional Disc camcorders: PDW-680, PDW-700, PDW-F800
• XDCAM HD422 Memory camcorders: PMW-300, PMW-400, PMW-500
• XDCAM EX Memory camcorders: PMW-EX3, PMW-320, PMW-350, PMW-F3
• Digital Cinematography & 4K XAVC :F23, F35, F65, PMW-F5, PMW-F55
• Studio cameras: BVP-950A, BVP-750A, BVP-550/570, HDC & HXC series

• Dimensions (WxDxH): 8.6 cm x 17.9 cm x 6.4 cm
• Weight: 0.47 kg
• Power requirements: 10.5 V to 30 V DC (supplied from the camera)
• Power consumption: 3 W
• Maximum cable length: 100 m (328 feet)
• Operating temperature: –20 °C to +45 °C (–4 °F to +113 °F)
• Storage temperature: –20 °C to +60 °C (–4 °F to +140 °F)

Inputs/Outputs

• CAMERA: 8-pin multiconnector (1)
• MONITOR: BNC (1)
• EXT I/O: D-sub 9-pin (1)

In the box

• Sony RMB-170 Handheld Remote Control Unit
• 32.80' (10 m) Interconnect Remote Cable
