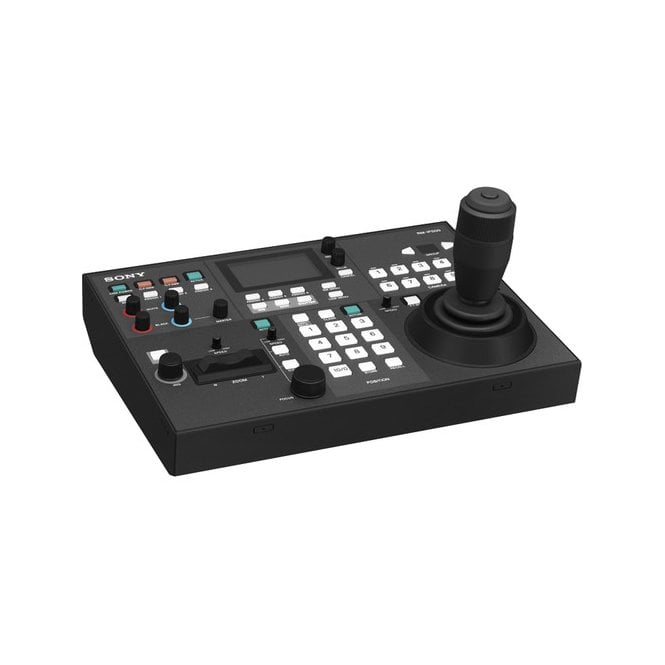

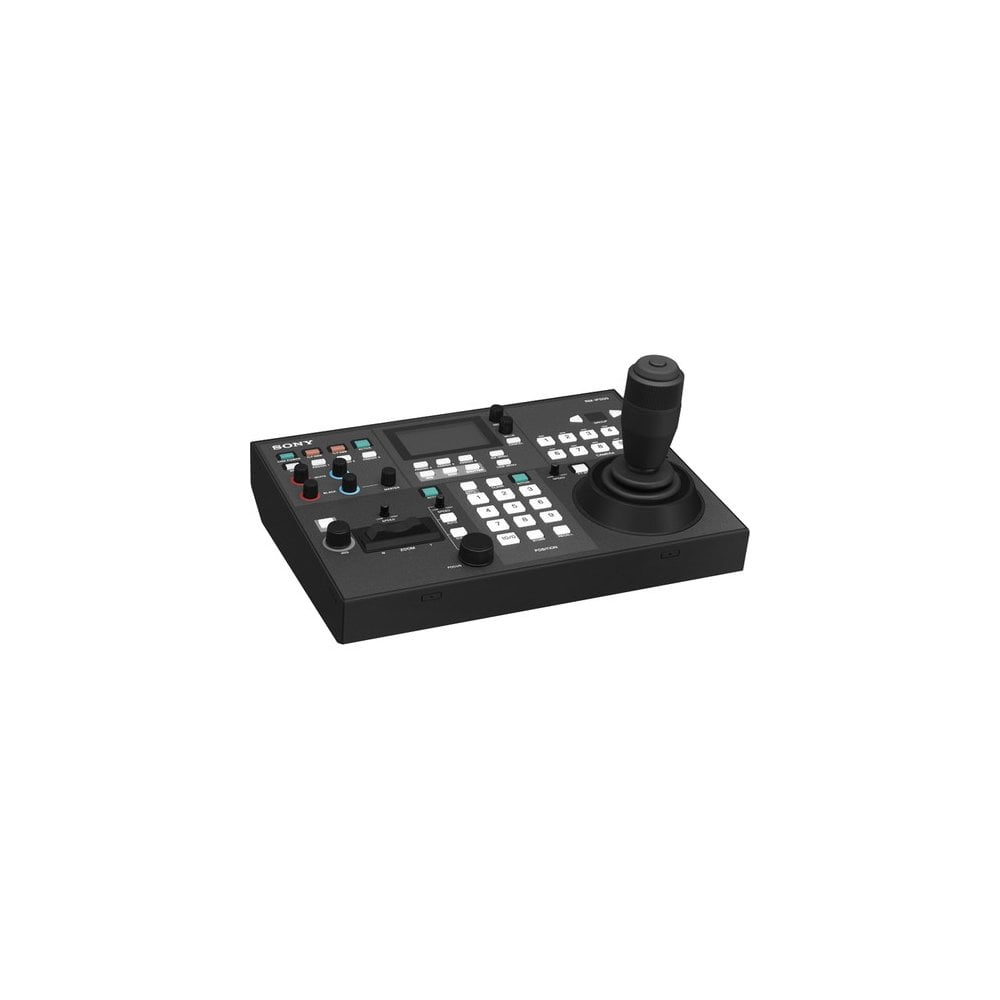

Sony PTZ Camera Remote Controller

code: RM-IP500/AC
  • £2,697.11
  • RRP: £2,973.00
Status | Usually dispatched within 24 hours
Loading...

Features

  • Compact PTZ Controller
  • Pan, Tilt, Zoom Control via Joystick
  • Control up to 100 Cameras via IP
  • Camera Paint Functions
  • Auto IP and Camera Number Assignment
  • Store up to 100 Camera Presets
  • Tally Indicator

Sony RM-IP500/AC (RM-IP500-AC, RM/IP500/AC, RM-IP500_AC) PTZ Camera Remote Controller

This compact remote controller features a high-quality joystick that allows effortless one-handed pan, tilt and zoom adjustments of compatible Sony PTZ remote cameras. Zoom can also be controlled via the joystick or a supplementary seesaw lever; dedicated knobs and control buttons simplify direct access to frequently-needed camera functions.

The RM-IP500 simplifies the building of cost-effective multi-camera content creation systems with a wide range of applications - from live events to conference halls, broadcast studios, education institutes and houses of worship.

PTZ speed can be adjusted from slow to fast for more polished, professional-looking results. Up to 100* combinations of camera angles and settings can be stored as presets. Trace Memory* allows a sequence of camera moves to be stored and recalled whenever required.

Up to 100 compatible Sony BRC or SRG Series PTZ remote cameras can be controlled over a standard IP network. Set-up's simple: the controller automatically assigns IP addresses to connected Sony PTZ cameras on the network, also assigning a camera number to each.

Full compatibility is provided with these Sony PTZ remote camera models: BRC-X1000, BRC-H900, BRC-H800, SRG-360SHE.

The RM-IP500 is an ideal partner for the Sony MCX-500 Multi-Camera Live Producer, creating a complete IP streaming and SD recording solution for a wide range of content production applications.



* Depends on camera specification. Version up might be required.

Input/output connectors

  • Control Input/Output: VISCA RS-422 : RJ-45 x 1, GPI I/O (Tally In/Contact Out) : D-Sub 15-pin (female), LAN : RJ-45 x 1, 10BASE-T/100BASE-TX automatically detected
  • Control signal format: 9,600 bps/38,400 bps , Data : 8 bit, Stop bit : 1 (for RS-422 communication), VISCA over IP communication
  • Power connector: JEITA type 4 (DC IN 12V), Separate option

General

  • Input voltage: 12V DC (10.8 to 13.2V DC)
  • Current consumption: 0.24A typ.(2.4W)
  • Operating temperature: 0 °C to 40 °C (32°F to 104°F )
  • Storage temperature: -20 °C to 60 °C (-4°F to 140°F )
  • Dimensions (W x H x D): 306 mm x 159.3 mm x 224.1 mm (12 1/8 inches x 6 3/8 inches x 8 7/8 inches)
  • Mass: Approx. 2400g

In the box

  • 1x Sony RM-IP500 PTZ Controller
Be the first to review Sony PTZ Camera Remote Controller. Write a review ›
