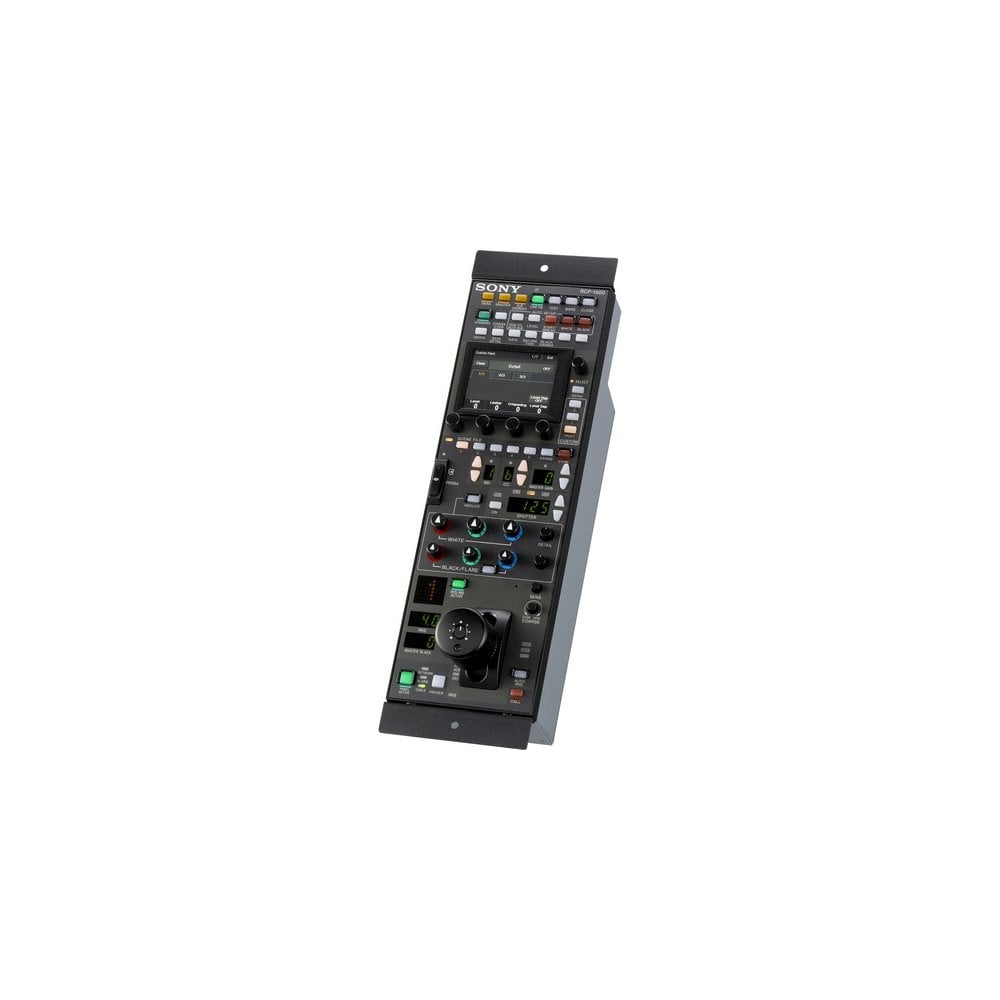

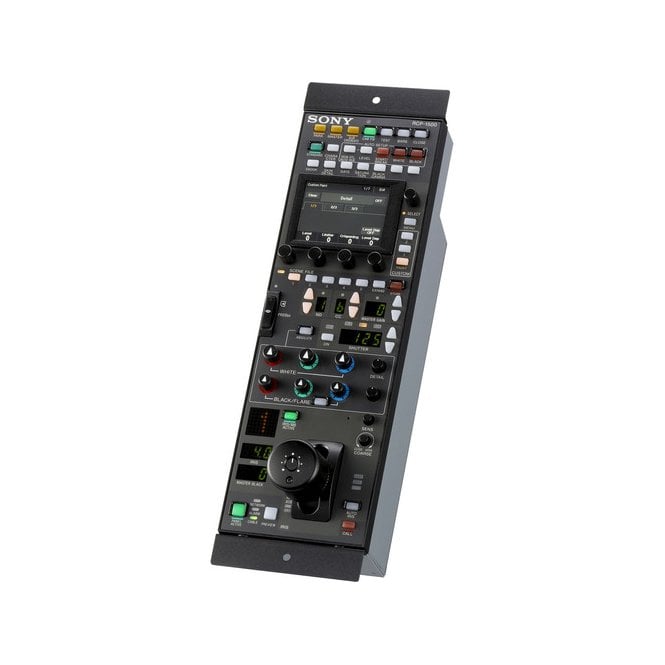

Sony Remote Control Panel (Joystick Type) for use with HDC & XDCAM System Cameras

Sony RCP-1500//U (RCP/1500//U, RCP_1500//U, RCP1500//U) Remote Control Panel (Joystick Type) for use with HDC & XDCAM System Cameras

The RCP-1500 remote control panel incorporates an LCD display with direct operation switches and a touch panel, which makes it a remote control panel that offers both ease of operation and multi-functionality that compares favorably with the MSU. The iris and master black adjustment block employs joystick type control. Up to four units can be mounted in a 19-inch EIA rack.

Compatible Products

• Sony HDC-1500R
• Sony HXC-D70H
• Sony HXC-D70K
• Sony HXC-D70L
• Sony PMW-EX3
• Sony PMW-500
• Sony PDW-700

• Power consumption: 4 W max.
• Operating temperature: 5C to 40C (41F to 104F)
• Dimensions (w/h/d) excluding protrusions: 102 x 310 x 125 mm / (4 1/8 x 12 1/4 x 5 inches)
• Mass: 1.8 kg (3 lb 15 oz)

Inputs/outputs

• Ethernet: RJ-45 8-pin (x1)
• CCU/CNU: 8-pin multi connector female (1)
• AUX: 8-pin multi connector female (1)
• EXT I/O: 9-pin D-sub connector female (1)

In the box

• Sony RCP-1500//U Remote Control Panel (Joystick Type) for use with HDC & XDCAM System Cameras
