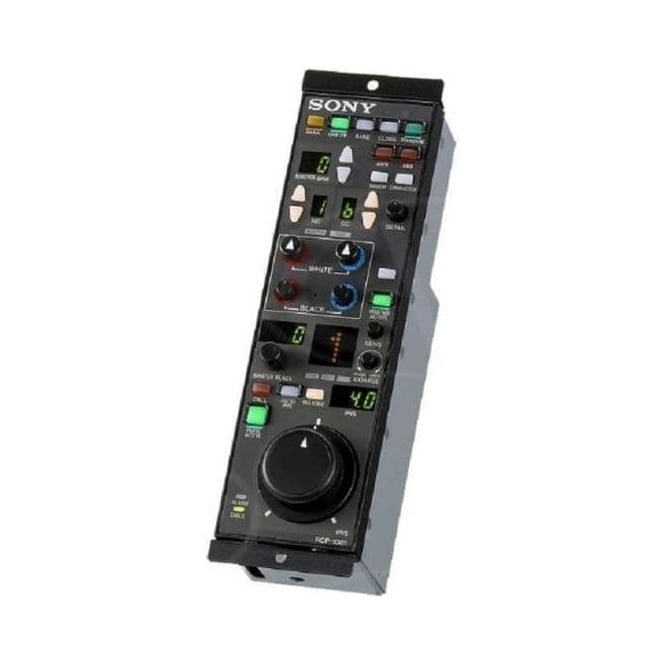

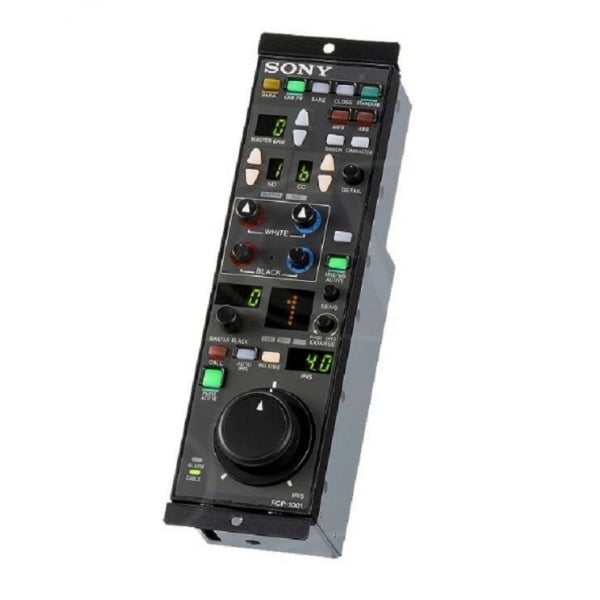

Sony Remote Control with Encoder Type Control for System Camera

Sony RCP-1001//U (RCP1001//U, RCP/1001//U, rcp-1001//u) Remote Control with Encoder Type Control for System Camera

The RCP-1001 is a remote control panel for configuring and controlling Sony’s studio and broadcast cameras. The RCP-1001 remote control panel is designed mainly for operation. Use a remote control panel with a camera on a one-to-one basis. The RCP-1001 is a compact control panel with specialized basic operations. The iris and master black adjustment block employs dial (knob) type control. Illuminated buttons with high visibility flash and light to notify you of the operation status to enable operation even in dark locations. Up to six units can be mounted in a SONY MSU19" RACK DRAWER( MSUDRAWER//A)

General

• Power supply : DC 10.5 V to 30 V
• Power consumption : 2 W
• Operating temperature : 5 C to 40 C (41 F to 104 F)
• Dimensions (W x H x D) (excluding protrusions) : 68 244 84.4 mm (2 3/4 9 5/8 3 3/8 in.)
• Mass : 1.1 kg (2 lb 9 oz)

Input/output connectors

• CCU/CNU : Multi-connector 8-pin, female (x1)
• EXT I/O : D-sub 9-pin, female (x1)

In the box

• 1 x Remote Control Panel
