Sony RS-422 Editing Controller

code: RM-280
  • £2,953.84
  • RRP: £3,256.00
Status | Usually dispatched within 24 hours
Loading...

Features

  • Two-machine editing
  • Assemble and insert mode
  • A variety of edit buttons such as "In and Out -point entry", "+ and - Trim", "Auto Edit""Preview/Reveiw", "Go To", "All Stop"
  • TC/CTL/RTC (Relative Time Code) editing mode selectable
  • Pinch-on-delay time learning capability for accurate timing adjustments of recorder and player edit in-point
  • Edit delay time setting
  • Cue signal or tally output via a mini-pin port
  • Equipped with reference video input for synchronization with other equipment
  • VTR remote control function; Play, Rewind, Fast-Forward, Rec, Stop, Pause, Edit, Pre-roll
  • Multiple system frequencies including 29.97, 25, 24, 23.98 Hz
  • Picture search using the jog/shuttle dial for jog, shuttle and variable-speed playback modes
  • Can be powered using the supplied AC adaptor or directly from a connected HDW-S280 HDCAM recorder from its DC output
  • Easy-to-use keyboard layout provides straightforward operations
  • Displays error messages on the VFD display, indicating the type of errors and device name on which the malfunction occurred for instant 'action to be taken'

Sony RM-280 (RM280, RM/280, rm-280) (RS/422, RS_422) Editing Controller

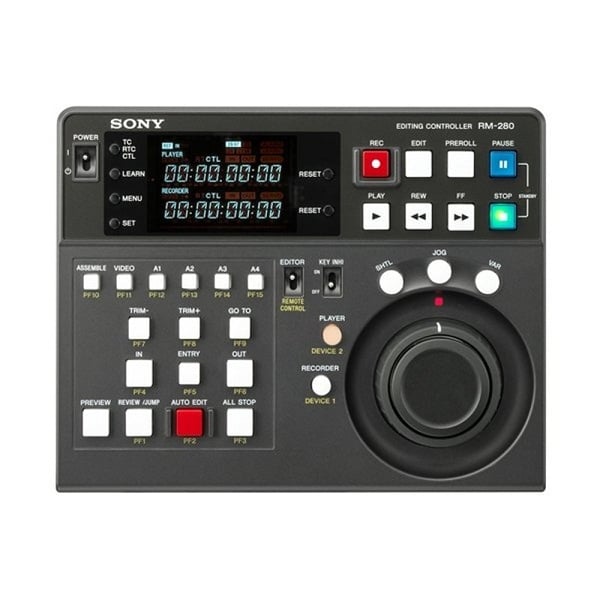

The Sony RM280 is a remote edit controller for Sony broadcast video products. This lightweight remote is designed for basic VTR control and simple edit functions over linear systems. The unit is equipped with a jog wheel, can control up to 2 decks at once and supports multiple frame rates including 24p.

  • RM-280 Specifications: Power Requirements: DC 11 - 17 V Connectors: 1/4 type Super HAD CCD
  • Connectors: 600 g (1 lb 5 oz) RS-232C x1
  • Power Consumption: 5 W Reference video input (BNC) x1
  • Mass: 600 g (1 lb 5 oz) RS-232C x1
  • Dimensions (w x h x d): 210 x 52 x 161 mm (8 3/8 x 2 1/8 x 6 3/8 inches) Mini-jack for REC TALLY or cue signal output x1
  • Operating Temperature: +5 to +40°C (+41 to +104°F) DC input x1
  • Storage Temperature: -20 to +60°C (-4 to +140°F)
  • Supplied Accessories: Operation manual (x1), 9-pin/DC multi-cable (x1), AC adaptor (x1), template (x1)
  • Connectors: RS-422A 9-pin remote x2 Reference video input (BNC) x1 RS-232C x1
  • Mini-jack for REC TALLY or cue signal output x1 DC input x1

In the box

  • 1x RS-422 Editing Controller
