Sony Simple Remote Control Panel Joystick for System Camera

Sony RCP-1000//U (RCP1000U, RCP 1000 U, RCP/1000//U, rcp-1000//u) Simple Remote Control Panel (Joystick) for System Camera

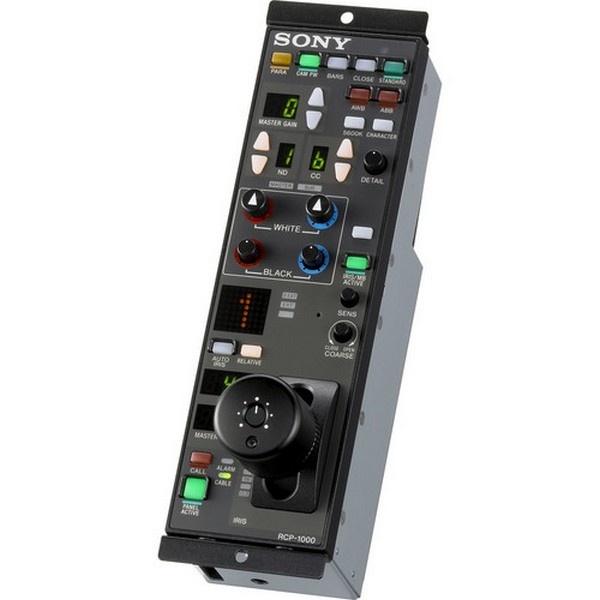

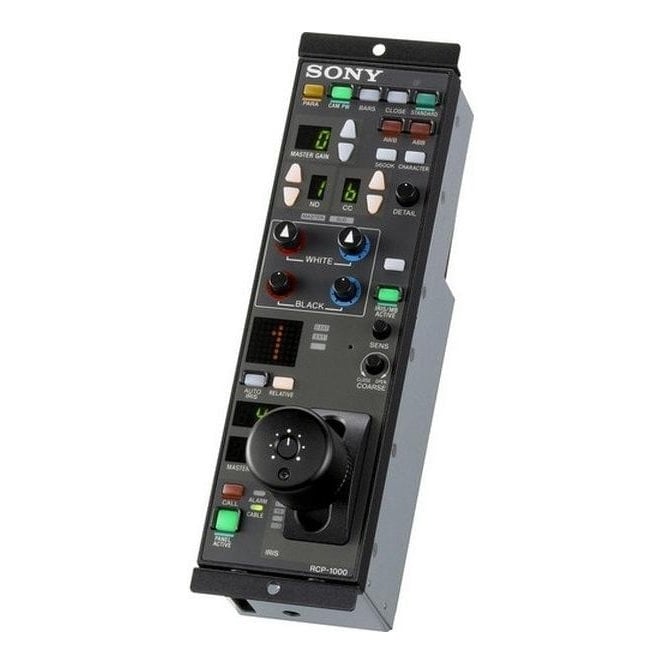

The RCP-1000 is a remote control panel for configuring and controlling Sony’s studio and broadcast cameras. The RCP-1000 remote control panel is designed mainly for operation. Use a remote control panel with a camera on a one-to-one basis. The RCP-1000 is a compact control panel with specialized basic operations. The iris and master black adjustment block employs joystick type control. Illuminated buttons with high visibility flash and light to notify you of the operation status to enable operation even in dark locations. Up to six units can be mounted in a SONY MSU19" RACK DRAWER( MSUDRAWER//A).

General

• Power supply: DC 10.5 V to 30 V
• Power consumption: 2 W
• Operating temperature: 5°C to 40°C (41°F to 104°F)
• Dimensions (W x H x D) (excluding protrusions): 68 × 244 × 123.7 mm (2 3/4 × 9 5/8 × 4 7/8 in)
• Mass: 1.1 kg (2 lb 9 oz)

Input/output connectors

• CCU/CNU Multi-connector: 8-pin, female (x1)
• EXT I/O: D-sub 9-pin, female (x1)

In the box

• 1 x Remote Control Panel
