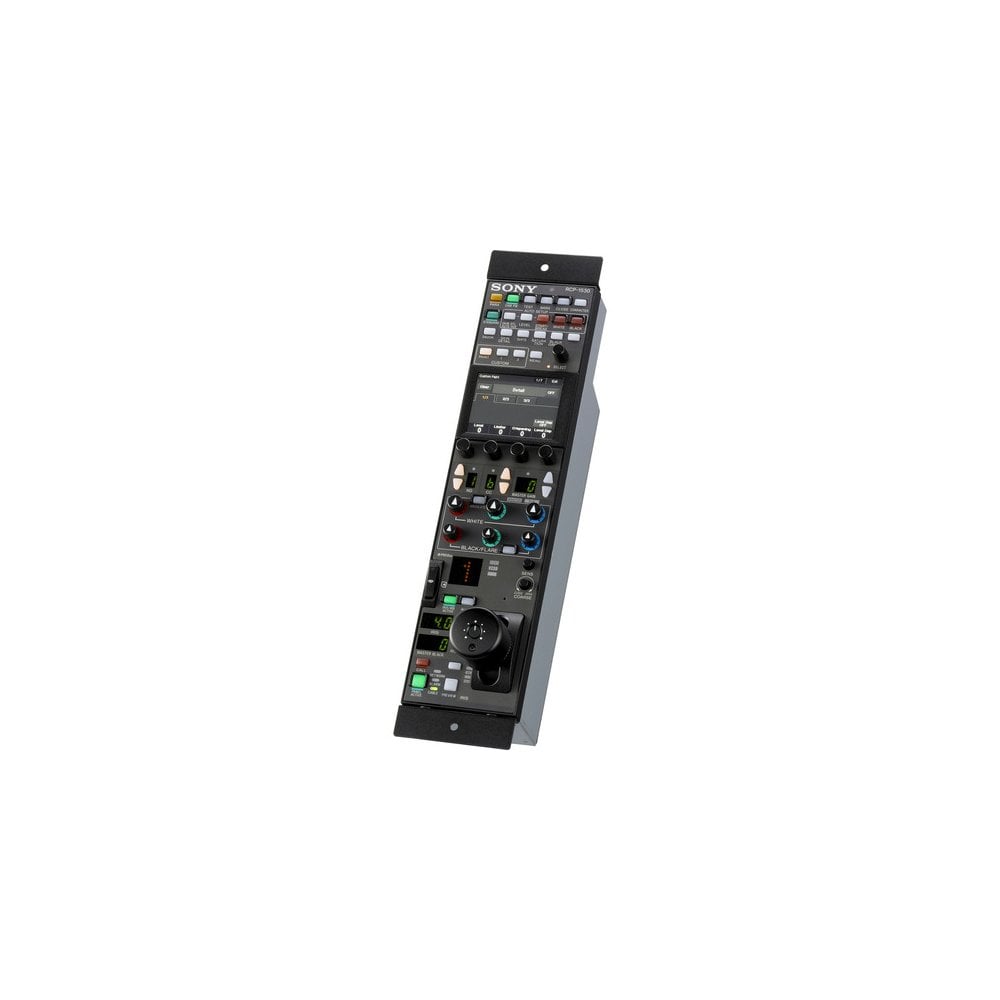

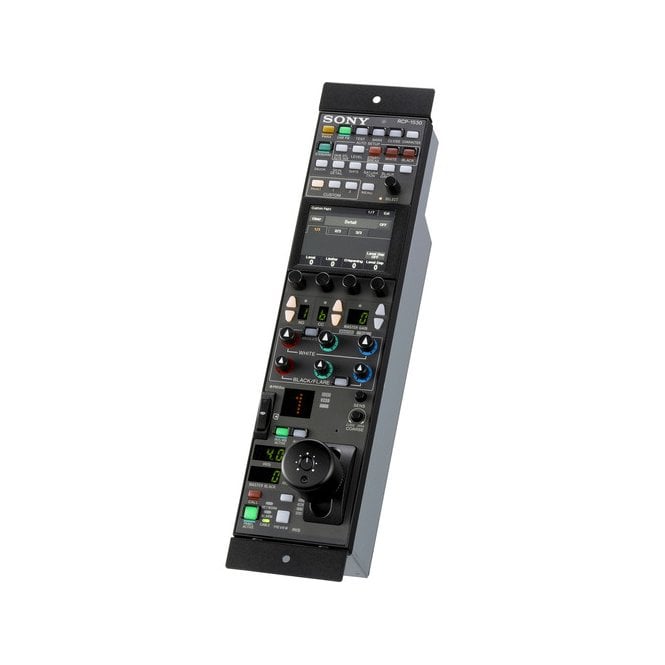

Sony Slim Remote Control Panel (Joystick) for System Camera

Sony RCP-1530//U (RCP/1530//U, RCP_1530//U, RCP1530//U) Slim Remote Control Panel (Joystick) for System Camera

The RCP-1530 is highly versatile control panels with a touch panel LCD display and user friendly buttons which makes it a remote control panel that offers both ease of operation and multi-functionality which compares favorably with the MSU. The iris and master black adjustment block employs joystick type control. Illuminated buttons with high visibility flash and light to notify you of the operation status to enable operation even in dark locations. By connecting the system using Ethernet cable, large scale of the system operation can be achieved Up to 5 units can be mounted in a SONY MSU19" RACK DRAWER( MSUDRAWER//A).

General

• Power supply: DC 10.5 V to 30 V
• Power consumption: DC 10.5 V to 30 V
• Operating temperature: 5 °C to 40 °C (41 °F to 104 °F)
• Dimensions (W x H x D) (excluding protrusions): 80 × 310 × 125 mm (3 1/4 × 12 1/4 × 5 in)
• Mass: 1.6 kg (3 lb. 8 oz.)

Input/output connectors

• Ethenet: RJ-45 8-pin (X1)
• CCU/CNU: Multi-connector 8-pin, female (x1)
• EXT I/O: D-sub 9-pin, female (x1)

In the box

• 1 x Remote Control Panel
