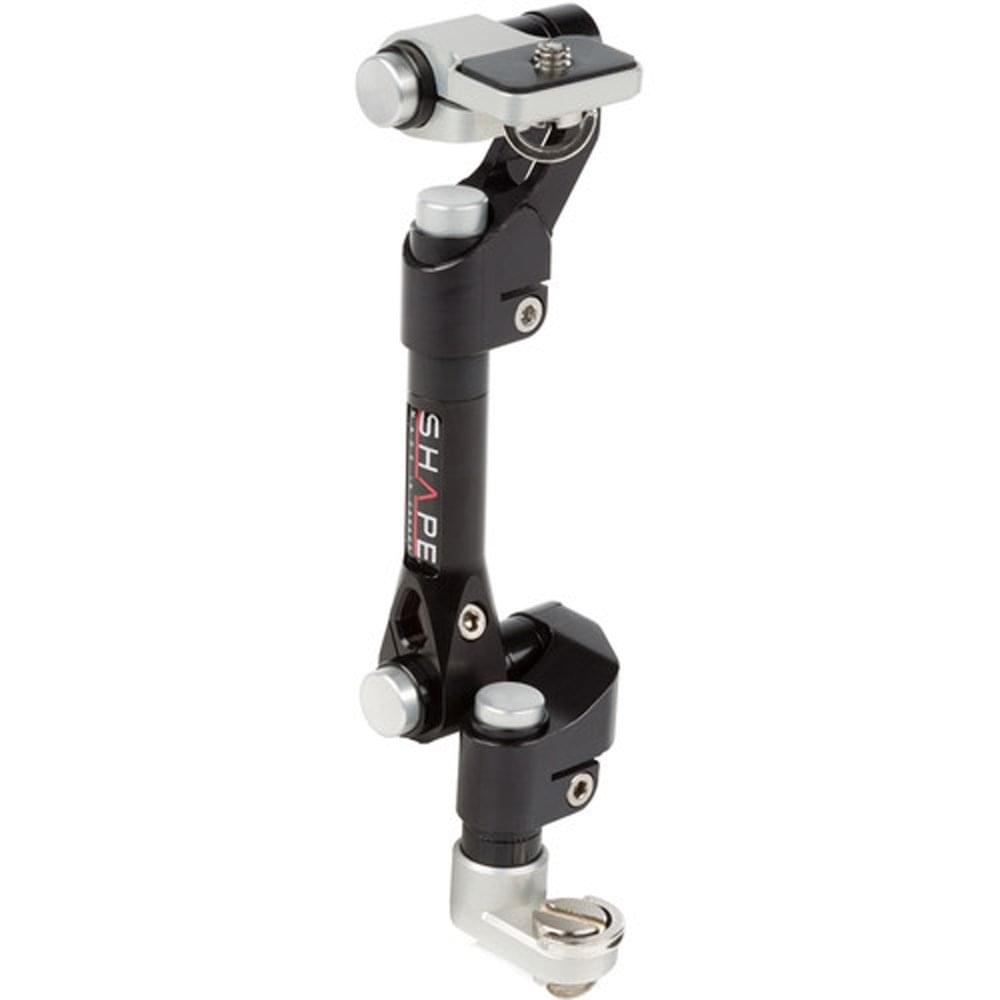

Shape 3/8"-16 Push Button Arm (4-Axis)

Shape SH-R384A (SH_R384A, SHR384A, SH/R384A, SH R384A) 3/8"-16 Push Button Arm (4-Axis)

Increased stability and manoeuvrability of your camera rig with the Shape 4 axis push button magic arm with 3/8-16 mounting screw.

Perfect for the Manipulation of Your On-Board Monitor

• The Shape Push Button Arm is the perfect device to mount your monitor to your camera rig. It allows precise and quick adjustments of your camera monitor with the help of the push button technology.

Support Arm with 4 Axis Push Button System

• SHAPE is well known for its Push Button Handles, now used by so many professionals in the industry. This patented technology allows the user to make quick and easy adjustment by simply pressing the button. Doing so, you are allowed 360 degrees of rotation to place the handle in the best position for your use.
• On this device, the camera support arm features 4 Push Buttons, allowing you to make vertical and horizontal positioning adjustments of the camera accessory from the top or the bottom of the arm.

Fixed Arm’s Length of 6.5’’ (16.51 cm)

• Not too long to maximize strength but just enough to allow a comfortable manipulation of your camera accessories.

Quickly Mount or Unmount Camera Accessories to the Arm

• The arm can be used for supporting accessories such as a monitor, a view finder, a microphone, a camera light, etc. The 1/4-20 screw is mounted with a ‘bracket’ allowing you to manually fix the accessories to the arm without a tool.

Quickly Attach the Arm to Your Rig

• The bottom section of the device features a 3/8-16 screw allowing you to easily mount or unmount the arm to your camera rig.

Locking Stoppers

• The bottom section features 2 stoppers (ARRI compatible locking attachment mechanism) to strongly fix the magic arm to the camera.

Lightweight & Robust

• The device weight is only 0.2 kg (0.45 lb) and is made from hard anodized aluminium with stainless steel screws to prevent rusting.

• Materials: CNC Machined Aluminium
• Dimensions: 5.08 x 7.62 x 16.51 cm (2 x 3 x 6.5 inches)
• Weight: 0.2 kg (0.45 lbs)
• Shipping Dimensions: 20.32 x 12.7 x 5.08 cm (8 x 5 x 2 inches)
• Shipping Weight: 0.32 kg (0.7 lbs)

In the box

• 1x 4 Axis Push Button AR With 3/8-16 Mounting Screw
