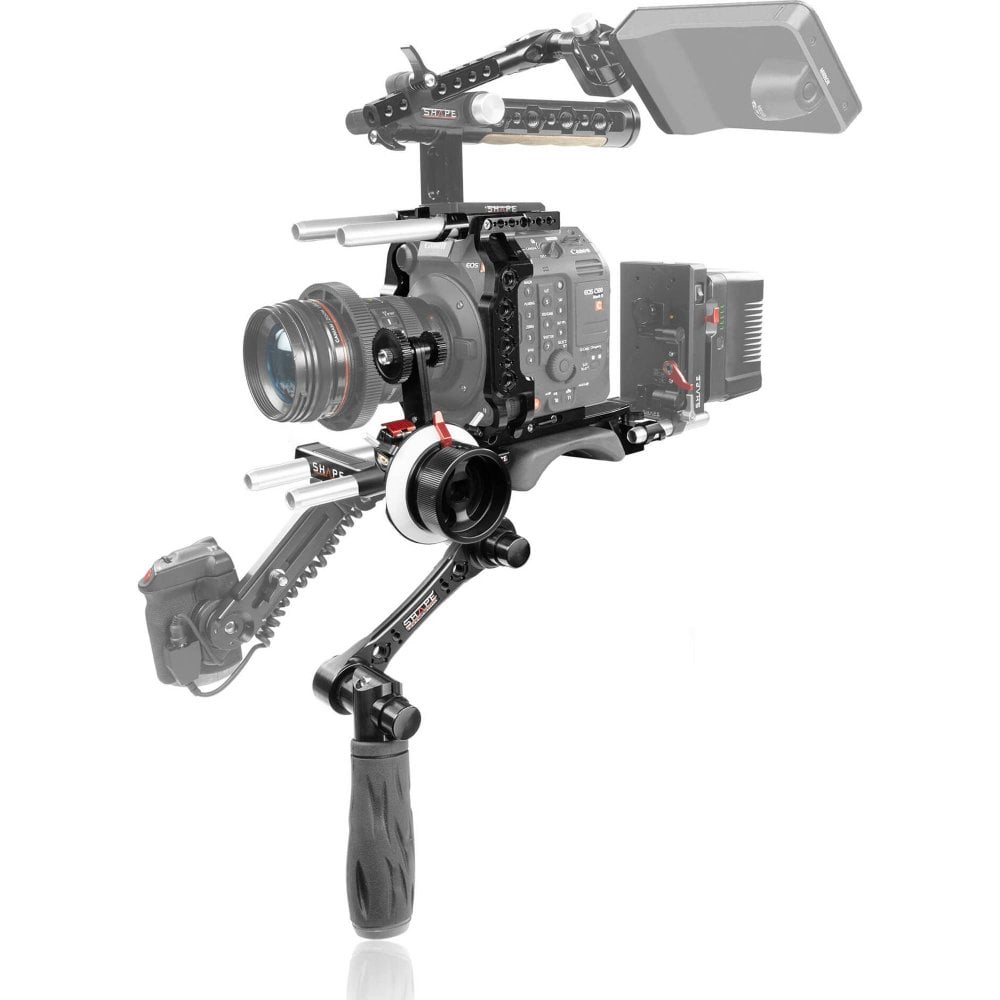

Shape Baseplate with Cage, Left-Side Handle & Follow Focus Pro

SHAPE Baseplate with Cage, Left-Side Handle & Follow Focus Pro(SH-C52BRFFP, SHC52BRFFP, SH/C52BRFFP)

This kit includes a shoulder mount baseplate with 15mm rod system, a form fitting cage with Arri rosette , a rosette handle with black push-button, and a follow focus pro. The baseplate includes an integrated shoulder mount that allows you to convert your tripod-mounted camera into a handheld shoulder rig.

The bottom of the cage attaches to the rear of the camera to support it on the baseplate.

The 15mm rods allow you to mount additional accessories like a matte box and follow focus. The push-button handle attaches to the baseplate and can rotate using the rosette joints for the most comfortable position.

Canon C500 Mark II, C300 Mark III V-lock quick release baseplate (C52BP)

Canon C500 Mark II, C300 Mark III camera cage (C52CAGE)

Add accessories and handheld functionality to your Canon EOS C500 Mark II camera with this kit made of CNC aluminium. It includes a form fitting side plate with Arri rosette , a top plate and a rear insert plate connecting together to protect your camera. The kit features several 1/4-20 and 3/8-16 threaded holes with anti rotating holes. The top plate is also designed to fit the native Canon EOS C500 Mark II handle.

Canon C500 Mark II, C300 Mark III adapter plate (C52AP)

The Canon EOS C500 Mark II Adapter Plate let you quickly attach your camera to your rig. The position of the captive screws perfectly matches the threaded holes of the Canon EOS C500 Mark II camera base.

Canon C500 Mark II, C300 Mark III top plate (C52TP)

Lightweight and robust CNC machined aluminium top plate designed to fit with the native Canon EOS C500 Mark II top handle. The top plate offers 1/4-20 and 3/8-16 threads with Arri standard anti rotating holes, which can be used to attach options around the camera. The top plate comes with a 3/16’’ Hex wrench and (4) captive screws ¼-20 3/8 to attach the top plate to the camera

Top side: (8) ¼-20 and (2) 3/8-16 threaded holes with Arri anti rotating holes

Top side: (18) ¼-20 threaded holes

Sides: (10) ¼-20 threaded holes with Arri anti rotating holes

Double Quick Handle ARRI Rosette Single Shadow (HAND2S)

Left or right ARRI Rosettes handgrips that can be attached to cameras or camera support hardware that has standard ARRI rosettes. The arm features three points of articulation (2 Push-button, 1 ratchet knob) allowing you to adjust the arm for your comfort. The arm attach to your camera or support via an ARRI compatible rosette with spring-loaded locking levers, which allow you to lock your arms in place.

The arm is also designed with (2) ¼-20 and (2) 3/8-16 threaded holes with locking attachment stoppers for additional mounting options and to strongly secure the camera accessories in position. SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developed to give filmmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use.

The Push-button system on the Handle articulating joint provides additional articulation near the rosette, while a second push-button articulation joint allows you to rotate and precisely position the rubber handgrips.

Follow Focus Pro (FFPRO)

Manufactured in sleek black aluminium anodized, this special edition professional follow focus unit combines sleek look with trusted engineering and a classic design. The SHAPE Follow Focus Pro is an industry workhorse and has already proven itself on countless tough shoots all over the world, so you needn’t worry about it letting you down. SHAPE engineering is internationally renowned and there is one of the most robust motion picture accessories ever built. It mounts on 15 mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is.

The unit snaps onto 15 mm rods, allowing for quick attachment, removal, and repositioning. Two 0.8 pitch gears come included and give you a choice of either 28 teeth or 43 teeth - depending on the throw distance of the lens. Additional features include two adjustable hard stops, removable marking disc, and an industry standard accessory port for using optional whips and cranks. While the Follow Focus Pro contains the essentials for pulling focus on any type of project production, the choice of either 15 mm rod adaptors means that you can SHAPE the system to meet your particular requirements.

15 mm 8" rods (15TUBE8)

Pair of 15 mm rods 8" long that fit studio and LWS 15 mm rod clamps, allowing you to use available rod mounted accessories. The rods are machined from hollow aluminium tubes and feature chamfered ends that make it easier to insert into 15 mm rod clamps, even if the rod isn't perfectly aligned or is at a slight angle to the rod clamp.

15 mm 4" rods (15TUBE4)

This pair of SHAPE 15 mm Aluminium Rods (4") connect into your camera rig, extend it, and let you add various SHAPE and third-party accessories compatible with 15 mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.

The rods are each 15 mm in diameter, 4 inches long, hollow, non-threaded, and made of reliable aluminium coated with a clear finish.

Materials

Aluminum

Dimensions

10 x 4.5 x 2" / 25.4 x 11.43 x 5.08 cm

Weight

2.1 lb / 0.9 kg
