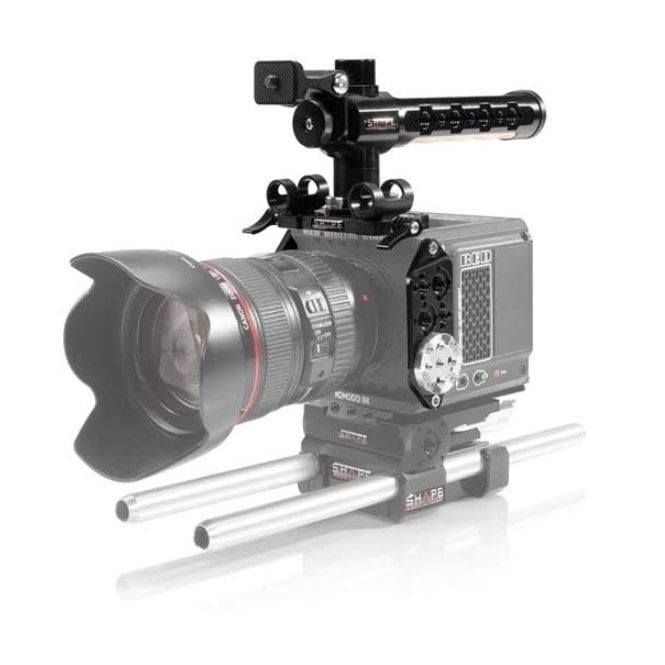

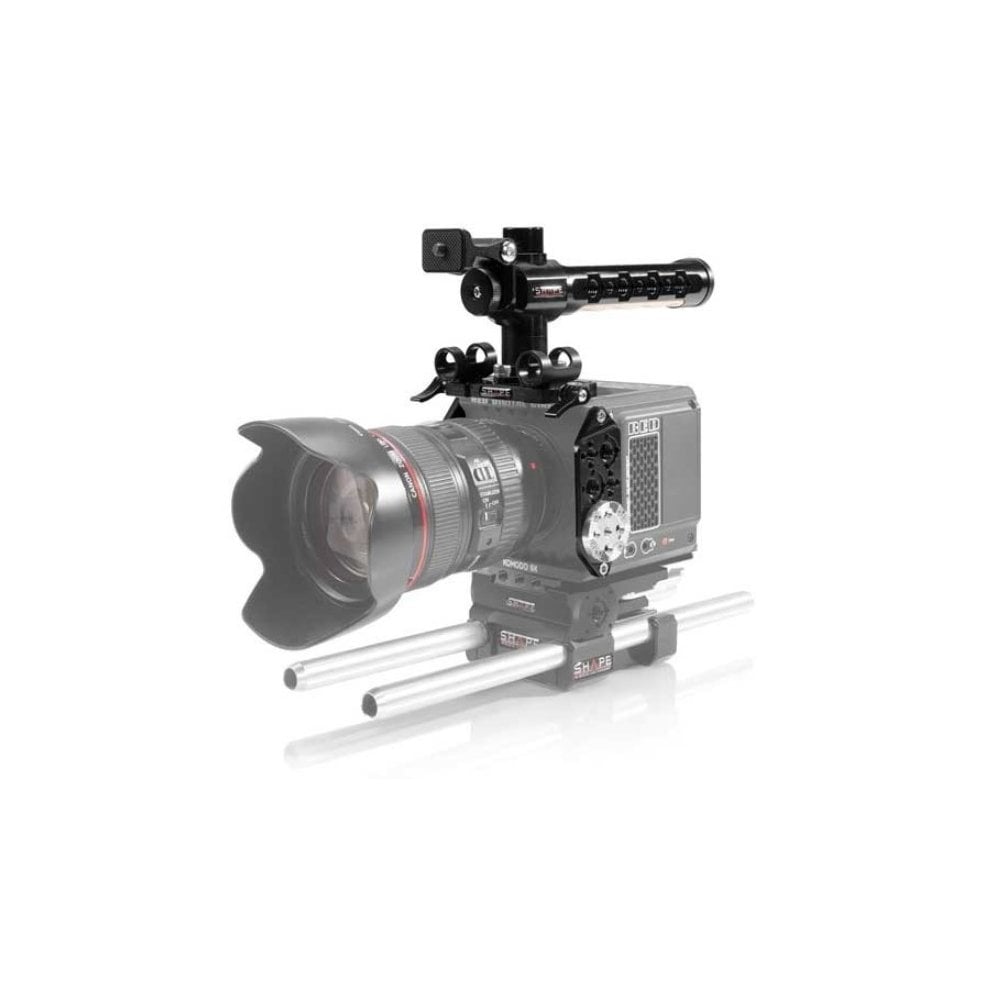

SHAPE camera cage for RED Komodo (KOCAGE)

The three-piece cage kit offers protection and accessory-mounting threads for your RED Digital Cinema Komodo 6K camera. This lightweight, three-piece cage maintains access to your camera’s controls and ports and come with thread holes side plates with M6 ARRI rosette on both sides.

Made of CNC anodize aluminium., the top plate (KOMOTP) can be mounted strongly at the top of your RED Digital Cinema Komodo 6K camera using two 1/4″-20 UNC socket head cap screws.

The plate features 3/8″-16 and ¼ 20 UNC threaded mounting holes, including the ARRI anti-rotating system to better secure your accessories. Two removable 15 mm LW rod bloc clamp (15CTH) can be mounted at the front of the top plate, allowing easy positioning of your accessories. Each sides of the rod bloc clamp are also designed with a ratchet system to strongly secure your rods to the rig.

The L-shaped handle features a solid connection to your top plate using mounting screws. It also features the SHAPE Push-Button Technology, enabling you to balance the weight and rotate the handle in the position you need for a 360-degree axis. The handle is constructed from anodized aluminium and it is lined with a smooth, wooden finger grip made from Canadian maple.

It features numerous 3/8″-16 ARRI-style anti-twist accessory threads. The front section of the handle features a cold shoe designed to receive a spring-loaded cold shoe foot. This spring-loaded cold shoe foot is designed with a tilting mount bracket with 1/4″-20 threaded screw to mount accessories like a monitor, a video light, or a microphone weighing up to 4.4 lb. Moreover, each end is secured with a knurled locking knob. Once the accessory is mounted, you can tilt it forward or backward and place it at the desired angle. The position is lockable with the included Allen key.

Side plates threaded holes:

• (2) 3/8-16 with anti-rotating
• (2) ¼-20 with anti-rotating
• (1) Arri Rosette mount on each side plate

Top plate threaded holes:

• (1) 3/8-16 with anti-rotating
• (4) ¼-20 with anti rotating
• (9) ¼-20

15 mm LW clamp for top handle (15CTH)

01 Shape 15cth Product Picture 2The clamp is made of CNC aluminium and can be attached to our REVOLT Top Handle. The clamp is designed to support a 15 mm stud, like our REVOLT EVF Mount Bracket. The ratchet knob device let you adjust and strongly fix the position of the stud to top handle.

Specifications

• Weight: 1.38 lbs / 0.63 kg
• Dimensions: 4.40 x 7.60 x 7.20 in / 11.18 x 19.30 x 18.29 cm

In The Box

• 1x L-shaped Top handle with tilting bracket
• 1x Top plate
• 2x Side plates with Arri Rosette
• 2x 15 mm LW rod bloc clamp (15CTH)
• 2x 1/4″-20 UNC socket head cap screws
• 4x M4 screws
• 1x 3mm HEX wrench
• 1x 3/16” HEX wrench
