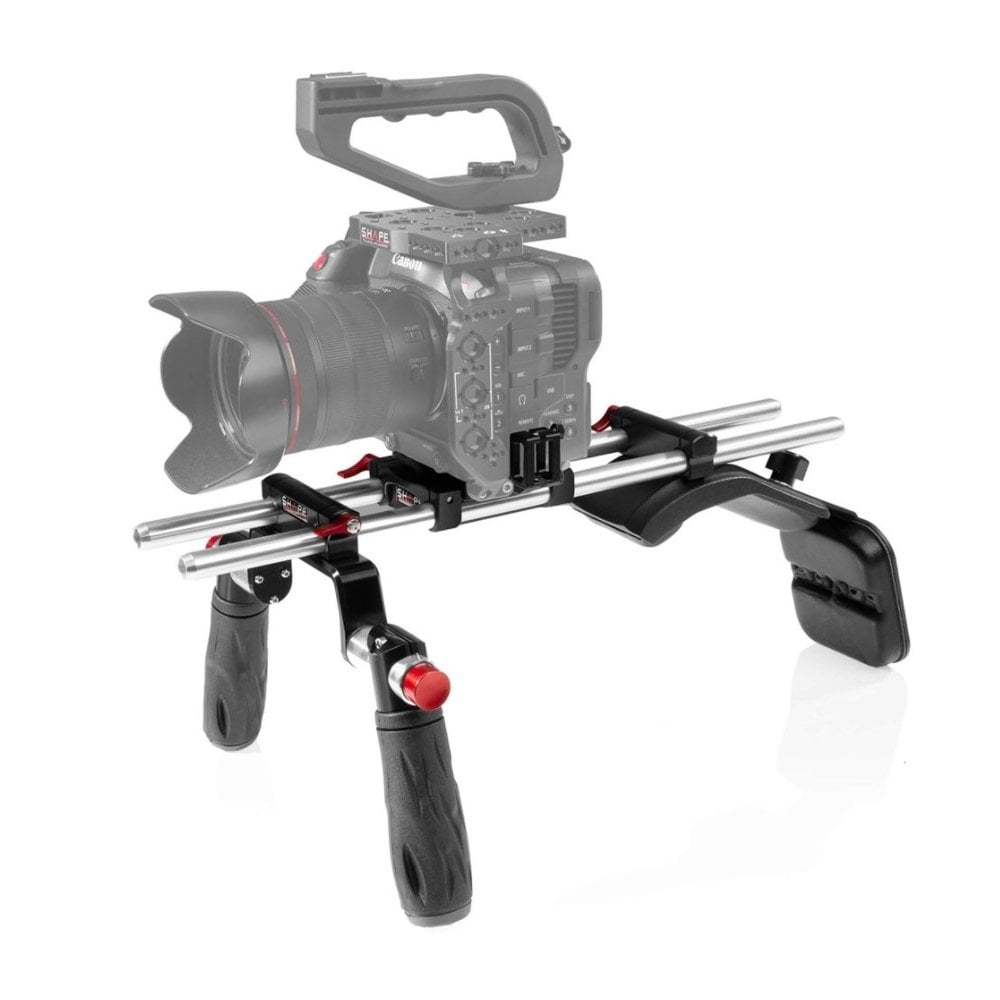

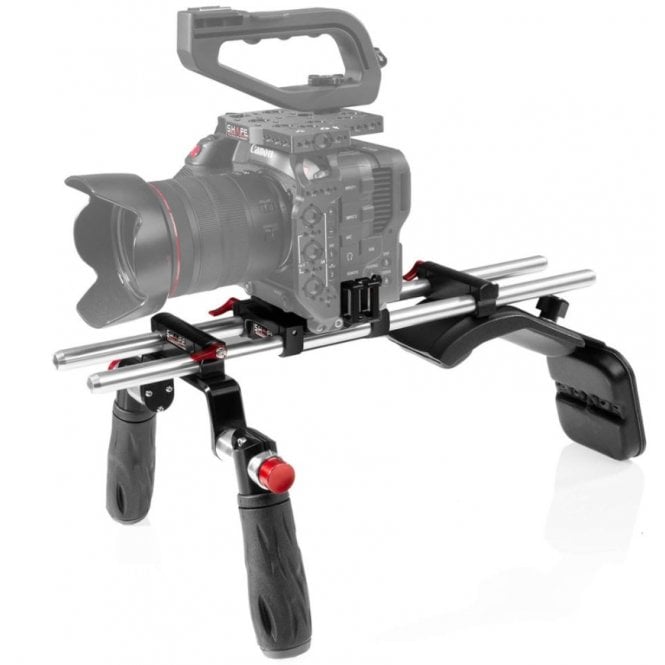

SHAPE C70BR Canon C70 Baseplate, Cage with Handles

The L-shaped handle features a solid connection to your top plate using mounting screws. It also features the SHAPE Push-Button Technology, enabling you to balance the weight and rotate the handle in the position you need for a 360-degree axis.

The handle is constructed from anodized aluminium and it is lined with a smooth, wooden finger grip made from Canadian maple. It features numerous 3/8″-16 ARRI-style anti-twist accessory threads. The front section of the handle features a cold shoe designed to receive a spring-loaded cold shoe foot.

This spring-loaded cold shoe foot is designed with a tilting mount bracket with 1/4″-20 threaded screw to mount accessories like a monitor, a video light, or a microphone weighing up to 4.4 lb. Moreover, each end is secured with a knurled locking knob. Once the accessory is mounted, you can tilt it forward or backward and place it at the desired angle. The position is lockable with the included Allen key.

Add accessories and handheld functionality to your Canon C70 camera with this kit made of CNC aluminium. It includes a form fitting side plate, a top plate and the adaptor plate connecting together with the side post to protect your camera.

The kit features several 1/4-20 and 3/8-16 threaded holes with ARRI standard anti rotating holes. The top plate is also designed to fit the factory Canon C70 top handle. An offset Cold Shoe fits perfectly the native microphones bracket of the camera. A detachable lock system to secure and hold in place your 4K FULL HDMI cable is included. The bottom of the plate features several 1/4″-20 and 3/8″-16 holes for mounting and balancing your camera on equipment like a tripod.

The compact REVOLT shoulder baseplate (BP20) is a lighter version of the REVOLT VCT universal baseplate (BP10). The main differences is that the BP20 is not designed with the front-to-back sliding plate and there is a bracket system with magnet allowing you to swivel the baseplate to the left for an easy access to the camera screws. It is designed with 2 standard Arri rosettes for handles mount and there is also a standard quick release adapter plate compatible with most VCT tripod plate. There is also a protective rubber pads on top of the plate to protect your camera.

Two 15 mm lightweight rod blocs can be fixed to the front and rear of the baseplate, allowing you to install more camera accessories. The safety ratchet knobs are built in a way to apply an optimal pressure to the rods. The thick shoulder pad produces maximum comfort and is made of gel padding and slip-free material. The baseplate is also designed with a sophisticated tool box to store your extra screws and Allen key.

Quick access to your extra screws and Allen key can be a time saver, even more so, when you are in the middle of a shoot. The shoulder plate is equipped with 1/4-20 & 3/8-16 threaded holes allowing extra screws to be stored and there is a magnet at the back to attach your Allen key.

Left and right Arri Rosettes handgrips that can be attached to cameras or camera support hardware that has standard Arri rosettes. Each arm features three points of articulation (2 Push-button, 1 ratchet knob) allowing you to adjust the arms for your comfort. The arms attach to your camera or support via an Arri compatible rosette with spring-loaded locking levers, which allow you to lock your arms in place.

Each arm is also designed with (2) ¼-20 and (2) 3/8-16 threaded holes with locking attachment stoppers for additional mounting options and to strongly secure the camera accessories in position. SHAPE is well known for its Push-button handle, now used by so many professionals in the industry. We developed this patented technology to give users quick and easy adjustment.

By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock. The Push-button system on the Handle articulating joint provides additional articulation near the rosette, while a second push-button articulation joint allows you to rotate and precisely position the rubber handgrips.

This pair of SHAPE 15 mm Aluminum Rods (4") connect into your camera rig, extend it, and let you add various SHAPE and third-party accessories compatible with 15 mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch. The rods are each 15 mm in diameter, 4 inches long, hollow, non-threaded, and made of reliable aluminium coated with a clear finish.

Pair of 15 mm rods 8" long that fit studio and LWS 15 mm rod clamps, allowing you to use available rod mounted accessories. The rods are machined from hollow aluminium tubes and feature chamfered ends that make it easier to insert into 15 mm rod clamps, even if the rod isn't perfectly aligned or is at a slight angle to the rod clamp.

Specifications

• Dimensions: 21.00 x 18.00 x 11.00 in / 53.34 x 45.72 x 27.94 cm
• Weight: 6.40 lbs / 2.90 kg

In The Box

• 1x C70 Cage
• 1x Compact REVOLT shoulder baseplate (BP20)
• 1x Compact quick handle Arri rosette black (HAND15)
• 1x pair 15 mm 4″ rods (15TUBE4)
• 1x pair 15 mm 8″ rods (15TUBE8)
• 1x L-shaped Top handle
