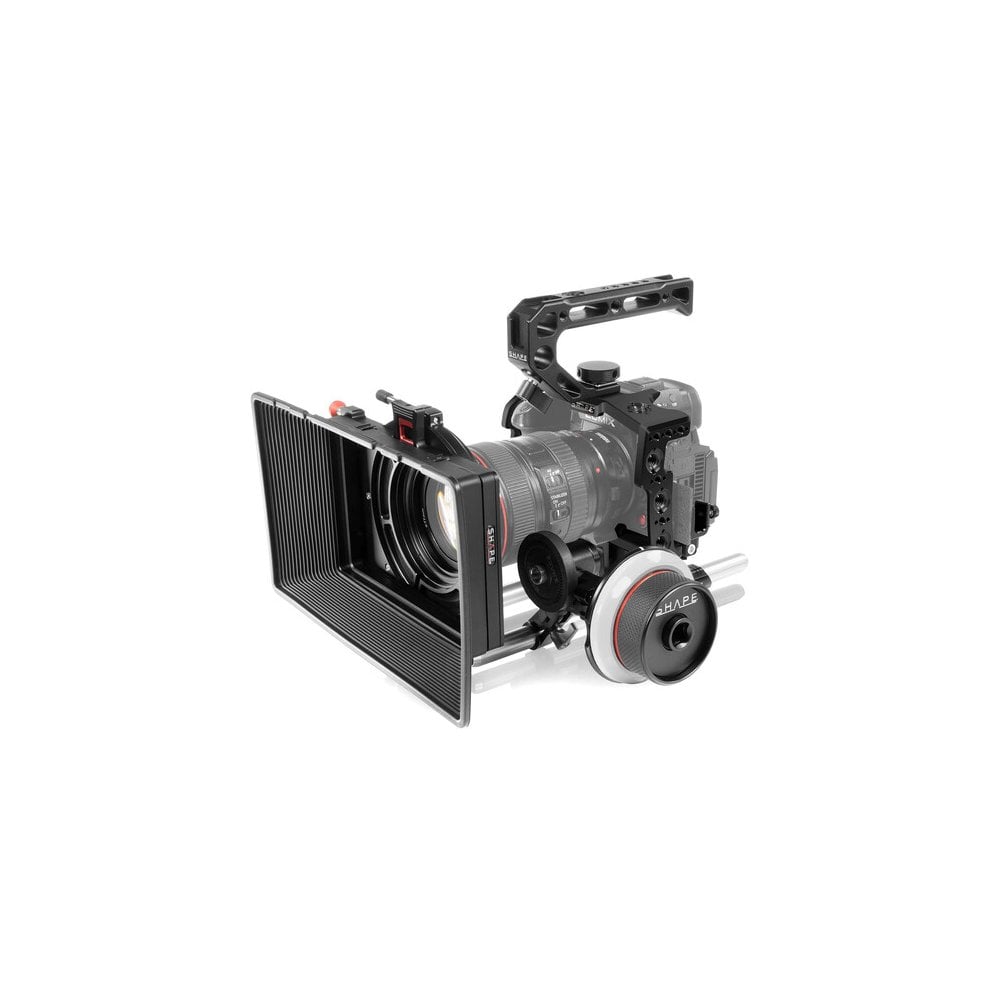

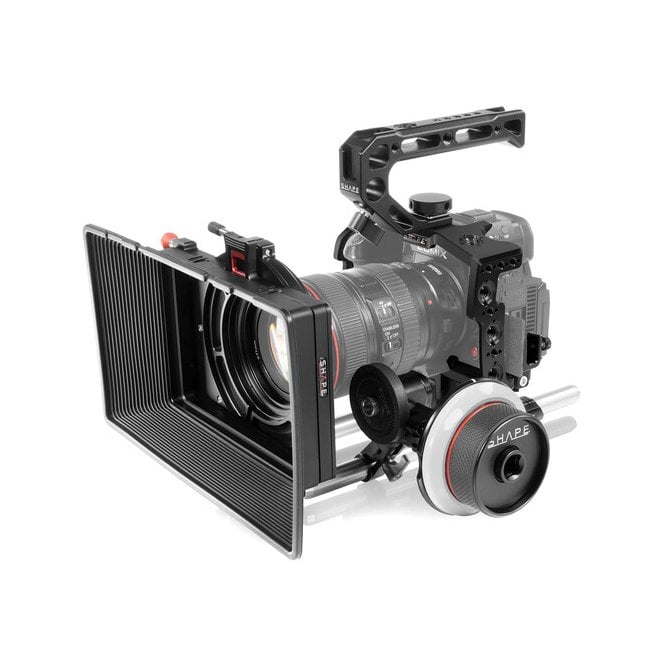

Shape kit with Mattebox follow focus for Panasonic GH6

SHAPE kit with Mattebox follow focus for Panasonic GH6(SH-GH6KIT, SHGH6KIT, SH/GH6KIT)

Panasonic Lumix GH6 Cage (GH6CAGE) Made of CNC-machined aluminium, the cage is specifically designed for the Panasonic Lumix GH6 camera. The camera is mounted to the cage using a 1/4-20 screw.

The cage is designed with several 1/4-20 threaded holes and seven 3/8in-16 threaded holes with anti-rotating Arri hole patterns. The design of the cage also allows easy access to all control buttons, side outputs, the memory card, the battery compartment, the lens release button and the camera hot shoe for the audio unit system. All doors and locks are fully usable when the camera is in the cage and its intelligent design allows you to operate the camera without having to remove the cable doors. In addition, the strap hooks can remain attached to the camera while being inserted into the cage.

A detachable lock system to secure and hold in place your 4K FULL HDMI cable is included with the cage. The bottom of the cage has three 1/4-20 threaded holes to mount a quick release tripod plate to switch from a tripod to a shoulder configuration.

The aluminium top handle included with the cage offers cold shoe mounting options for additional accessories. A second top handle can be added and attached on the sides of the cage for vertical shoots. A 15mm LW rod baseplate system is included and attached underneath the cage with four M4 screws.

A height adjustable Metabones bracket is included at the front of the baseplate for additional support. The bottom of the baseplate has three threaded holes to attach quick-release tripod plates.

SHAPE LIGHTWEIGHT SINGLE FILTER TRAY 4X5.6 MATTE BOX (LWAKS)

A silicone matte box mounted on a CNC aluminium main frame with an outer diameter of up to 124 mm. It provides a wide field of view for a large variety of wide angle lenses. A single filter tray system with an easy access handle that allow one-handed filter change. The filter tray system opens up from the front by releasing the red safety pin. 4x4 filters can also be installed in the tray.

The frame includes two stops at the bottom of the filter tray section to prevent the filter from falling through. Optional removable swing-away and height adjustable rod bloc can be installed for better control.

An optional removable light carbon fiber french flag can be attached on top to prevent flares. A series of adaptor rings are included in the kit: Clamp-on adaptor ring: 124-87 mm Threaded aluminium adaptors rings: 87-82 mm / 87-77 mm / 87-72 mm / 87-67 mm Additional clamp-on adaptor rings available (Optional): 124-114 mm / 124-104 mm / 124-100 mm / 124-95 mm

SHAPE kit focus single rod follow focus 15 mm LWs (FA123)

Use the compact SHAPE Follow Focus Kit with Single 15 mm Rod Clamp with your camera setup to make focus pulling easy. The modular design allows you to add and remove any of the components without screws or tools, and its small profile allows the addition of a matte box or accessories around your lens.

 At the core of the kit is a rubber, anti-slip follow focus wheels attached to a single aluminium 15 mm rod clamp. The clamp rotates to adjust to most lens sizes, and it's tightened by a locking lever.

The clamp's rotation also allows the focus wheel to easily swing out of the way when changing lenses. Five drive gears are included to fit a variety of lens sizes: 0.5 MOD/78T, 0.6 MOD/64T, 0.8 MOD/38T, 0.8 MOD/43T, and 0.8 MOD/78T. The gears can be flipped from front to back to facilitate different lens configurations.

A 49 mm rubber friction wheel is also included for the 0.5 MOD/78T gear which is most commonly used with DSLR lenses. For alternate fine-focus configurations, use the included speed crank or 11" whip, both of which attach to the center point of the knob. Four magnetic marking disks are included to attach to the focus wheel.

Weight 6.06 lbs / 2.75 kg

Dimensions 12 x 9.75 x10 in / 30.48 x 24.77 x 25.40 cm

In the Box

1x GH6 Camera Cage

1x Top Handle with Cold Shoe attachment

1x HDMI Protector

1x Single Filter Tray 4 x 5.6 Matte Box

1x Single Rod Follow Focus

1x Pair of 15mm 18in Rods

1x 15mm LW Rod Baseplate System
