Shape Shoulder Mount for Panasonic AU-EVA1
Sell Your Gear
warranty on this product

Shape Shoulder Mount for Panasonic AU-EVA1

code: SH-EVASM
  • 634,09 €
  • RRP: 696,91 €
Status   |   Usually dispatched within 24 hours
Loading...
Make An Offer
Ask a Question
Price Match
Add to Compare

Features :

Base with 15mm Rod System:

  • Features a pair of 15mm rods that are 18” long through the length of the baseplate
  • Attaches underneath the camera with 3/8-16 and ¼-20 screws
  • 4 points attachment to strongly secure the camera and  for tripod plate attachment (3 x ¼-20 and 1x 3/8-16)
  • Ratchet key knobs to reposition the rod bloc system
  • 15mm LW Rod System designed to respect the AU-EVA1 optical centre
  • 4 rubber pads at the top of the base to protect and securely sit your AU-EVA1 Camera
  • Quickly unscrew the bottom section of the Baseplate with an Allen Key and you will obtain and Adaptor Plate featuring several ¼-20 and 3/8-16 threaded holes, perfect to optimize your AU-EVA1 camera balance on a Tripod, Gimbal or Drone
  • The Allen Key is easily accessible and securely magnet-fixed at the bottom of the Baseplate

Quick Handle with Rod Bloc and Push-Button System:

  • Ergonomic handles with rubber handgrips for stability and precision
  • Single red knob for fast & easy adjustment
  • Support quick release handgrips, 3 points of adjustment
  • Patented Shape Quick Handle spring loaded push-button technology for fast adjustment
  • Individual rotation on a 360° axis
  • CNC machined parts and hard anodized aluminium for resistance
  • Stainless steel locking mechanism for durability

Shape SH-EVASM (SHEVASM, SH/EVASM, SH EVASM, EVASM, sh-evasm) Shoulder Mount for Panasonic AU-EVA1

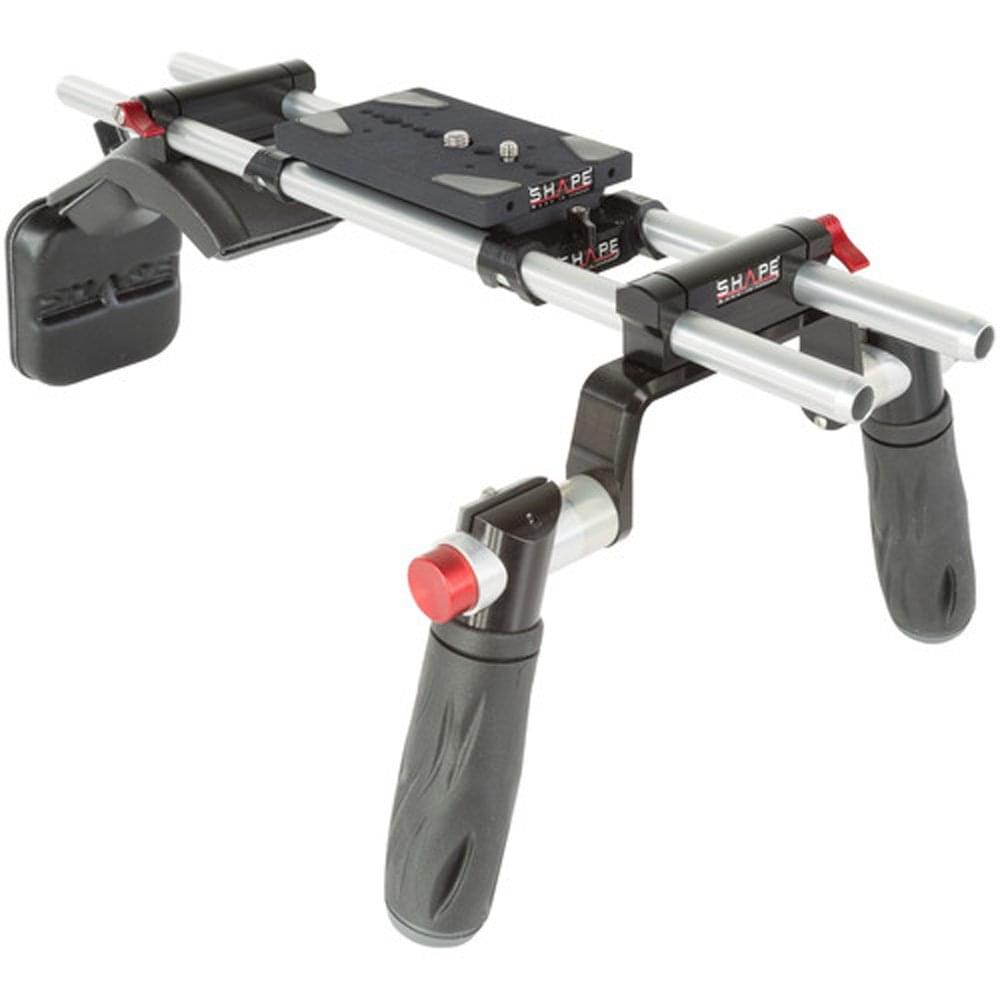

Shape designed this bundle rig specifically for the Panasonic AU-EVA1 camera. It is a robust and complete solution that will increase the level of control on set. It features two handles that can rotate individually on a 360° axis by pushing the Red Push-button System. Once the buttons are released, the handles are secured firmly in place. You can achieve precise positioning by sliding the Rod Bloc System along the 15mm 18” rods and secure the handles by tightening the single red knob on the Rod Bloc.

Shape is well known for its Push-button handle, now used by so many professionals in the industry. Shape developed this patented technology to give users quick and easy adjustment. By simply pressing the button, you are allowed a 360 degree rotation to place the handle in the best position for your use. Made of slip-free material, the shoulder pad produces maximum comfort and stability and will increase your level of control on set.

Baseplate with 15mm Rod System for Panasonic AU-EVA1
  • Material : CNC Machined aluminum
Mounting Holes:
  • 3 x 1/4"-20
  • 1 x 3/8"-16
  • Dimensions (W x H x L) : 4.0 x 4.0 x 1.31" (10.1 x 10.1 x 3.3 cm)
  • Weight : 0.79 lb (0.36 kg)
15mm Rods (18", Pair)
  • Diameter : 15mm
  • Length : 18" (45.7 cm)
  • Weight : 0.4 lb (181.4 g)

In the Box

  • Baseplate with rod bloc system
  • Adapter plate
  • Pair of quick handles with 15mm rod bloc and push-button system
  • 15mm rods 18"
  • Composite mini shoulder pad
  • Back pad
  • Male screw knob 1/4-20
Be the first to review Shoulder Mount for Panasonic AU-EVA1. Write a review ›
