Shape Sony FS7 Bundle Rig

Shape SH-FS7BR (SH-FS7BR, SH-FS7BR, SH-FS7BR, FS7BR, sh-fs7br) Sony FS7 Bundle Rig

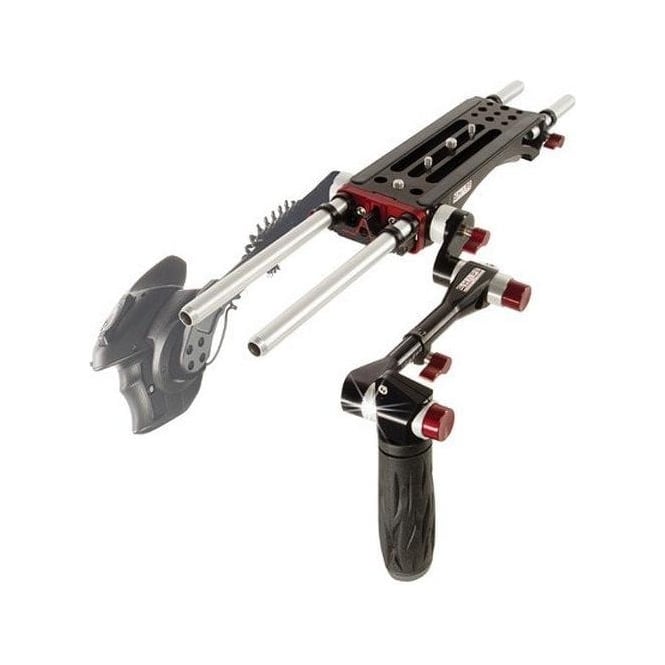

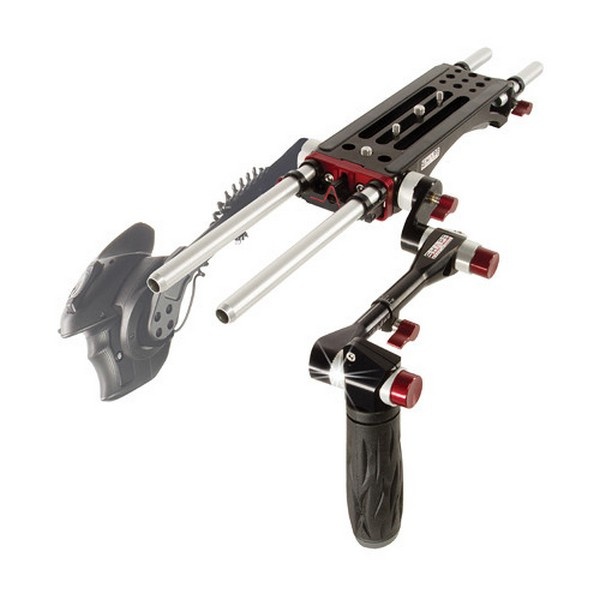

The SHAPE F7S Bundle Rig is a starter rig for the Sony FS7 that directly supports the optional Sony Zoom Control via a rosette adapter. It also features a V-Lock delta adapter allowing compatibility with V-Lock tripod adapters, such as the Sony VCT-14 and Panasonic SHAN-TM700. It's also adjustable for matte boxes and supports offset camera mounting brackets. The bundle includes the SHAPE 8000 V-Lock Quick Release Baseplate, multi-adjustable telescopic handle, and front and rear 15mm rods.

The baseplate features a long format design for larger cameras and can be used shoulder mounted, tripod mounted, or attached to delta tripod adapters. It includes a removable shoulder pad and offers SHAPE/ARRI standard rosette adapters on both sides. 1/4"-20 and 3/8"-16 tripod mount threads are available underneath the shoulder pad. The front rod adapter can be adjusted vertically to support a matte-box and other accessories. The baseplate has three long camera mount slots, and the off-center ones support an optional SHAPE 15mm Studio Adapter for offset mounting. Nine 1/4"-20 and 3/8"-16 mounting threads are located behind the three slots for flexible accessorizing.

The Telescopic Handle can be extended out 1.5" and can also be rotated 360°. The rotating capability allows it to be adjusted for left- and right-handed use. At two points, this handle features SHAPE's push-button technology which allows for instant, precise adjustments.

The included rods are 8" and 4" long.

BP0008 V-Lock Quick Release Baseplate

The SHAPE BP0008 V-Lock Quick Release Baseplate is a long format baseplate for larger cameras like the Alexa, F5, C300, and broadcast cameras. It can be used shoulder mounted, tripod mounted, and attached to V-lock tripod adapters.

The baseplate includes a removable shoulder pad and features rosette adapters for SHAPE and ARRI standard handles. It has 1/4"-20 and 3/8"-16 tripod mount threads and a V-lock delta adapter for attaching to the Sony VCT-14 or Panasonic SHAN-TM700 tripod adapter. The shoulder pad secures on by touch fasteners. The tripod mount threads are located underneath the shoulder pad. 8" and 4" 15mm rods are included for the front and back.

This baseplate is the same as the SHAPE BP0007 except it is lighter and has a modified rod adapter in front. The reduced weight is the result of a thinner design, and the rod adapter features one ratchet knob instead of two, allowing quicker rod adjustments. For attaching a matte-box and other accessories, the rod adapter can be adjusted vertically if you remove the screw holding it in position. This baseplate also supports optional SHAPE 15mm Studio and 19mm Studio adapters in place of the included one.

The baseplate features three camera mount slots, all supporting 1/4"-20 and 3/8"-16 screws. The off-center slots allow you to mount your camera offset if you use a 15mm Studio Adapter. 1/4"-20 and 3/8"-16 mounting threads are peppered behind the three slots for attaching articulating arms and other accessories. Two 1/4"-20 and two 3/8"-16 camera mount screws are included. This baseplate is best used with cameras that use external viewfinders.

Telescopic Handle for ARRI Rosette

The Telescopic Handle for ARRI Rosette from SHAPE is a versatile and adjustable handgrip that attaches to an ARRI standard rosette on the left or right side of your camera rig. It offers 1.5" of extension and uses push-button mechanisms on the extension arm and handle for adjusting the height and rotation of the handles to meet your needs and preference. The push-button on the handle is a huge benefit when you want to adjust the angle on-the-fly, without having to remove your hand or set down the rig.

In the Box

• Bundle Items
• BP0008 V-Lock Quick Release Baseplate
• 15mm LWS Rod Adapter
• 15mm Aluminum Rods (Pair, 8")
• 15mm Aluminum Rods (Pair, 4")
• 2 x 1/4"-20 Camera Mount Screws
• 2 x 3/8"-16 Camera Mount Screws
• Allen Key
• Telescopic Handle for ARRI Rosette
