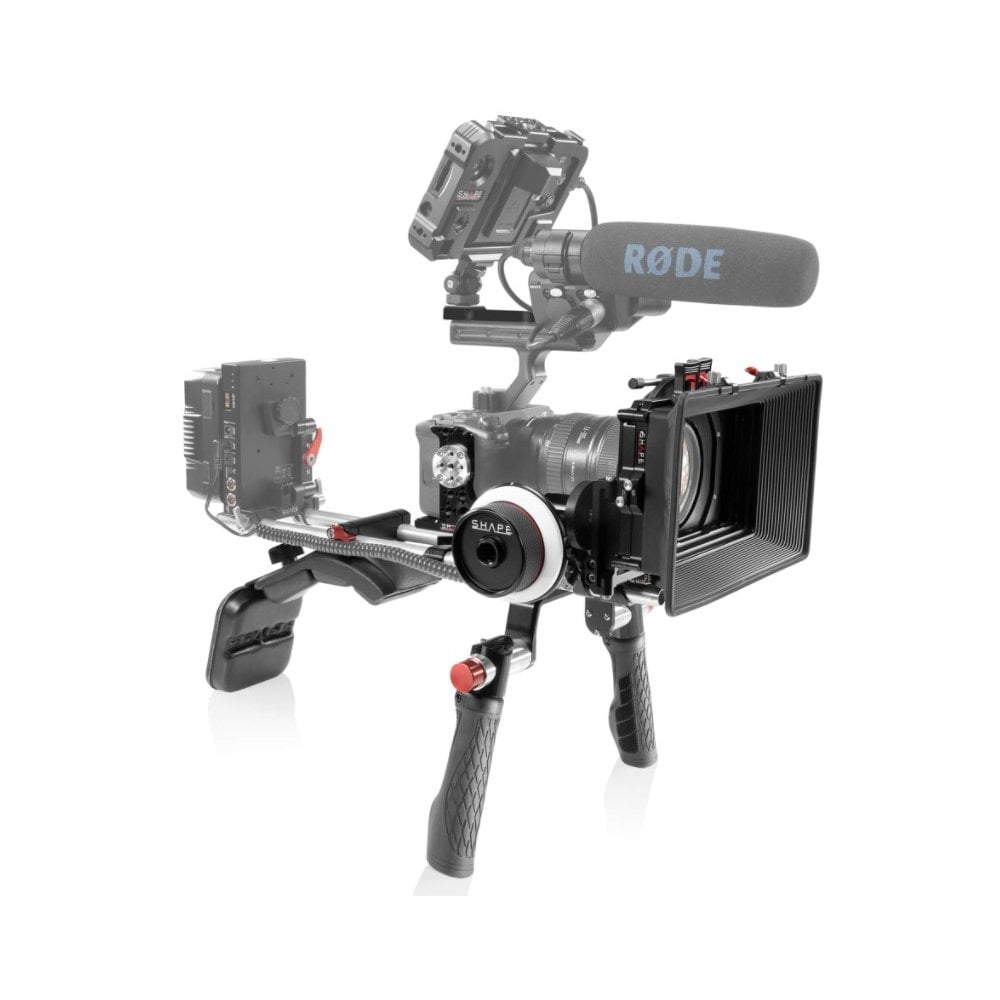

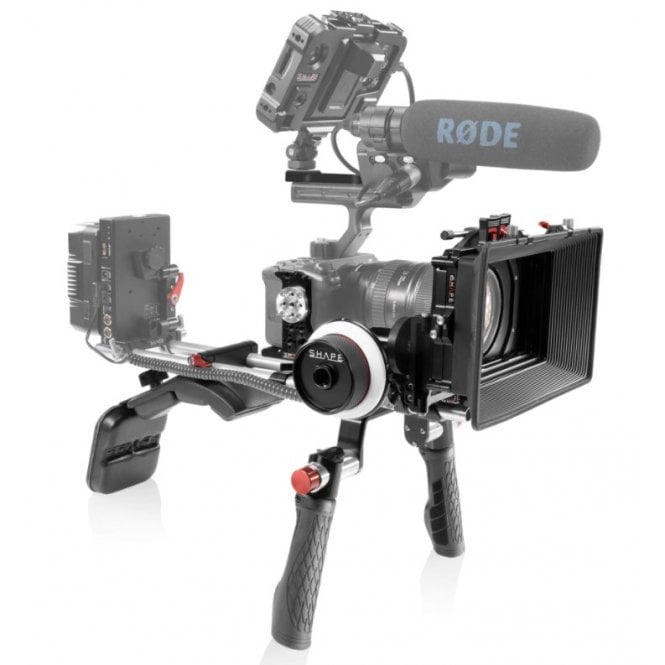

Shape Sony FX3 Shoulder Mount Kit with Matte Box and Follow Focus

SH-FX3SMKIT SHFX3SMKIT SH FX3SMKIT SH/FX3SMKIT Shape Sony FX3 Shoulder Mount Kit with Matte Box and Follow Focus

Sony FX3 Cage (FX3)

CNC-milled aluminum cage specifically designed to protect and support the Sony FX3. Includes a cold shoe, ARRI rosette, seven 3/8-16 threaded mount points, and multiple ¼-20 threaded mount points. The cage design allows access to all camera controls and side outputs, as well as memory cards, battery compartment, lens release, doors, locks, and hot shoe. In addition, A detachable lock protection system to secure and hold in place your 4K FULL HDMI cable is included with the cage. Also included is a top plate with a left-hand threaded ARRI hole patterns that fits on top of Sony’s factory handle. The cage can be fitted with a quick release tripod plate or DELTA adapter.

Quick handle rod bloc (HAND5)

The SHAPE Quick handle rod bloc is a professional video stabilization accessory with 2 camera handle grips, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple Push-Button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum rod bloc, the quick handle offers composite camera support for all 15 mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Bloc. The rod bloc is designed with 2 screw-threaded holes allowing the mounting of the Quick Handle. SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developped to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock.

Composite mini shoulder pad (SHPAD3)

The SHAPE mini composite shoulder pad is padded for superior comfort and is made of slip-free material. It is designed with a 15 mm rod block on top allowing to hold 15 mm rods for camera and accessories to be attached. The screw knob allows to attach SHAPE counter-weight (PAD1, PADCW1). By adding extra male-female rods at the back, you can also attach a counter-weight behind the same rods. This way, your body can easily supports the weight of the camera and its accessories. The shoulder pad is also the perfect solution for switching rapidly from shoulder to tripod without having to remove the shoulder pad. It can remain on the camera rig permanently.

Back pad (PAD1)

The back pad (PAD1) features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. It is compatible with the SHAPE Mini Composite Shoulder Pad (SHPAD3, SHPAD2, SHPAD1) and can be attach or remove easily from your rig via a 1/4-20 camera screw knob. Additionally, the back pad’s position can be adjusted to the user’s preference – up to 2″ vertically and 360° horizontally. The bottom of the back pad is designed with (2) 1/4-20 threaded holes, allowing to attach other accessories or counterweights.

15 mm 18 in rods (15TUBE18)

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter
• 18-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminium coated with a clear finish

SHAPE MATTE BOX SWING-AWAY (AKSWA)

A silicone matte box mounted on a CNC aluminum main frame with an outer diameter of up to 124 mm. It provides a wide field of view for a variety of wide-angle lenses. Two 4x5.6 filter trays (one rotary) with easy access handles that allow one-handed filter changes. 4x4 filters can also be installed in the trays. The frame includes two stops at the bottom of the filter trays section to prevent the filters from falling through. The removable swing-away module makes lens changes a snap. A spring pin helps to lock the mechanism closed without manually setting the pin. 2 magnets hold it in place when closed. Removable height adjustable rod block with one tightening knob allows micro-adjustment of height, ensuring compatibility with a wide range of lenses. The rod block can be re-installed directly on the main frame for a straight configuration. The complete kit allows three different configurations, (swing-away, straight and clip-on). Removable light carbon fiber french flag can be attached to the top to prevent flares. A series of adapter rings are included in the kit:

• Clamp-on adapter ring: 124-87 mm
• Threaded aluminium adapter rings: 87-82 mm 87-77 mm 87-72 mm 87-67 mm
• Fabric knicker: 124mm

SHAPE kit focus single rod follow focus 15 mm LWs (FA123)

Use the compact SHAPE Follow Focus Kit with Single 15 mm Rod Clamp with your camera setup to make focus pulling easy. The modular design allows you to add and remove any of the components without screws or tools, and its small profile allows the addition of a matte box or accessories around your lens.  At the core of the kit is a rubber, anti-slip follow focus wheels attached to a single aluminum 15 mm rod clamp. The clamp rotates to adjust to most lens sizes, and it's tightened by a locking lever. The clamp's rotation also allows the focus wheel to easily swing out of the way when changing lenses. Five drive gears are included to fit a variety of lens sizes: 0.5 MOD/78T, 0.6 MOD/64T, 0.8 MOD/38T, 0.8 MOD/43T, and 0.8 MOD/78T. The gears can be flipped from front to back to facilitate different lens configurations. A 49 mm rubber friction wheel is also included for the 0.5 MOD/78T gear which is most commonly used with DSLR lenses. For alternate fine-focus configurations, use the included speed crank or 11" whip, both of which attach to the center point of the knob. Four magnetic marking disks are included to attach to the focus wheel.

• At the center of the knob, an ARRI-standard accessory port for attaching separately available accessories such as a whip or a speed crank;
• All gears can be flipped to the front or back position which is helpful for compact lens configurations;
• Two rotation points (one on the rod and one on the body) allowing you to get the follow focus perfectly aligned vertically on the side of the camera body;
• Swing Arm Design allows you to simply pull the follow focus away from the lens for a quick lens change then you can push it back into place when you're ready;
• A compact design takes little space, so you can still attach a matte box to the front;
• Use the swing arm to properly align the follow focus and then you can tighten the thumbscrew on the bottom to keep it in place.

Specifications

• Weight: 10.25 lbs / 4,65 kg
• Dimensions: 14.00 x 11.75 x 18.00 in / 35,56 x 29,85 x 45,72 cm

In The Box

• 1x Sony FX3 Cage (FX3)
• 1x Quick handle rod bloc (HAND5)
• 1x Composite mini shoulder pad (SHPAD3)
• 1x Back Pad (PAD1)
• 1x 15 mm 18 in rods (15TUBE18)
• 1x SHAPE MATTE BOX SWING-AWAY (AKSWA)
• 1x SHAPE kit focus single rod follow focus 15 mm LWs (FA123)
