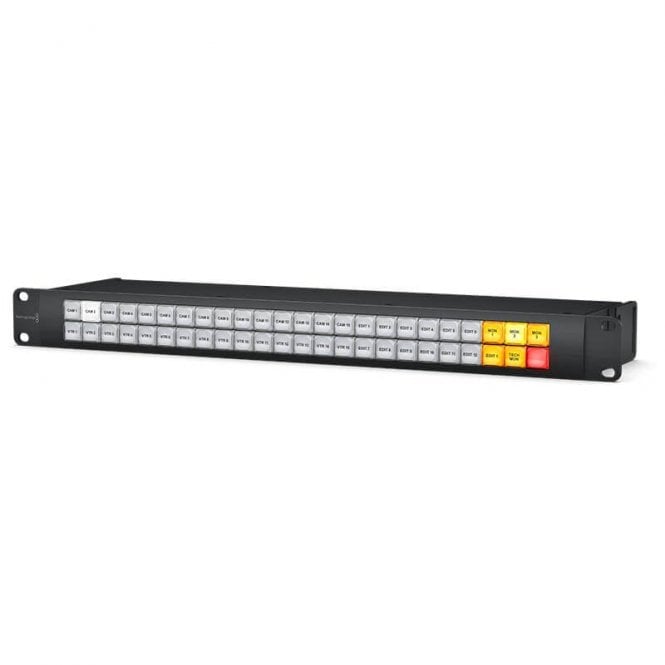

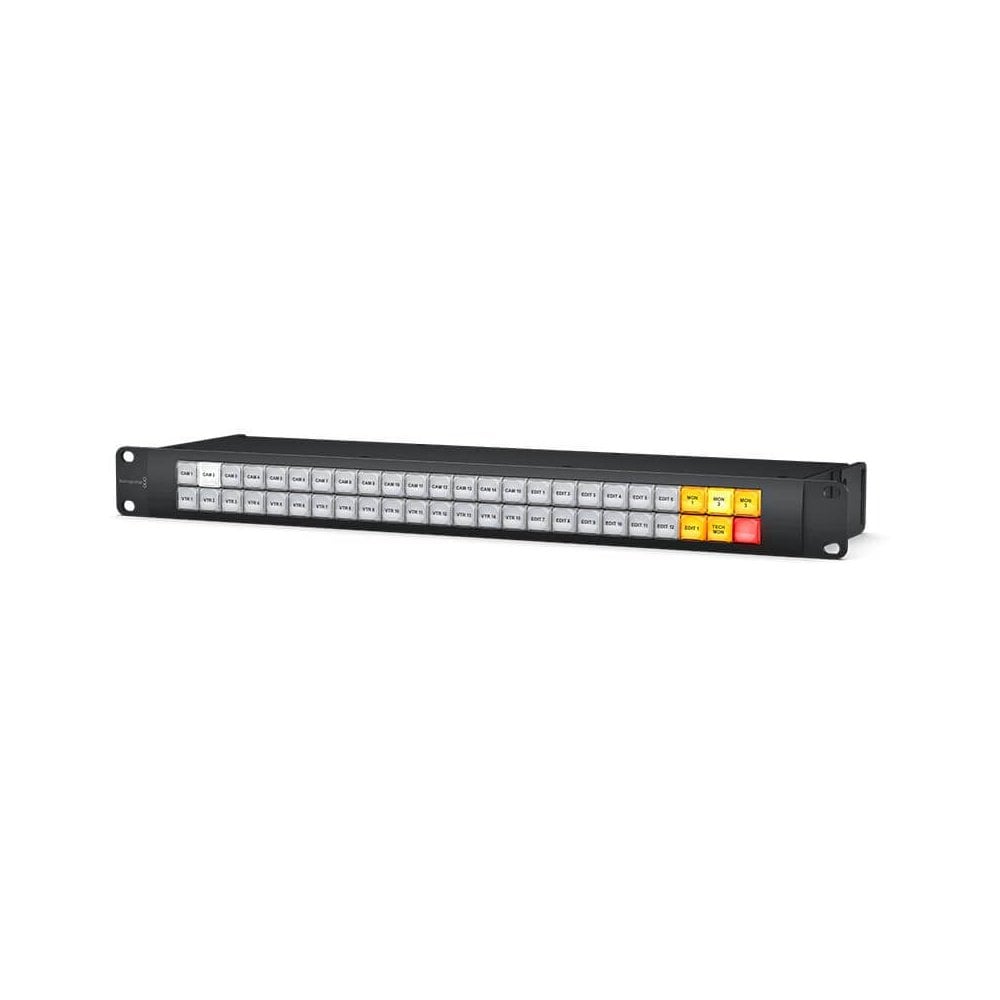

Blackmagic videohub smart control pro

Blackmagic videohub smart control pro(BMD-VHUB/WSC/PRO)

When you want the fastest routing you can get, then Videohub Smart Control Pro lets you route with a single button press. Program each button for a single router cross point and when pressed the route is made. You can program to have multiple destinations and even a take button. Powers via DC or the Ethernet connection.

HARDWARE CONTROL PANELS

ADD INCREDIBLE RACK MOUNT HARDWARE CONTROL PANELS

 For dedicated remote router panels, you can choose between Videohub Smart Control Pro and Videohub Master Control Pro. Both optional panels connect to your network via Ethernet and can control any Videohub model. Videohub Smart Control Pro is ideal for direct cut bus style routing to monitors or decks, while Videohub Master Control Pro gives you full spin knob control and direct label entry with an LCD display to see your router crosspoint labels. You get perfect integration and 24/7 broadcast reliability with Blackmagic Videohub remote panels.

Input 48 x Programmable Buttons

10 x Macro Buttons

1 x RJ45 Ethernet with PoE

1 x RS-422

1 x USB Type-C

Output 1 x RJ45 Ethernet

1 x RS-422

Configuration USB 2.0 Type-C

Compatible Operating Systems macOS 10.13, 10.14 or Later

Windows 10

Display None

Power Supply PoE

C13

AC Voltage 100 to 240 VAC

Operating Temperature 32 to 104°F / 0 to 40°C

Storage Temperature -4 to 113°F / -20 to 45°C

Relative Humidity 0 to 90% Non-Condensing

Rack Space 1 RU

Dimensions 19 x 1.7 x 4.4" / 48.3 x 4.3 x 11.2 cm

Weight 2.2 lb / 1 kg

Packaging Info

Package Weight 3.1 lb

Box Dimensions (LxWxH) 20 x 5.5 x 3.5"

In the Box

Videohub Smart Control Pro
