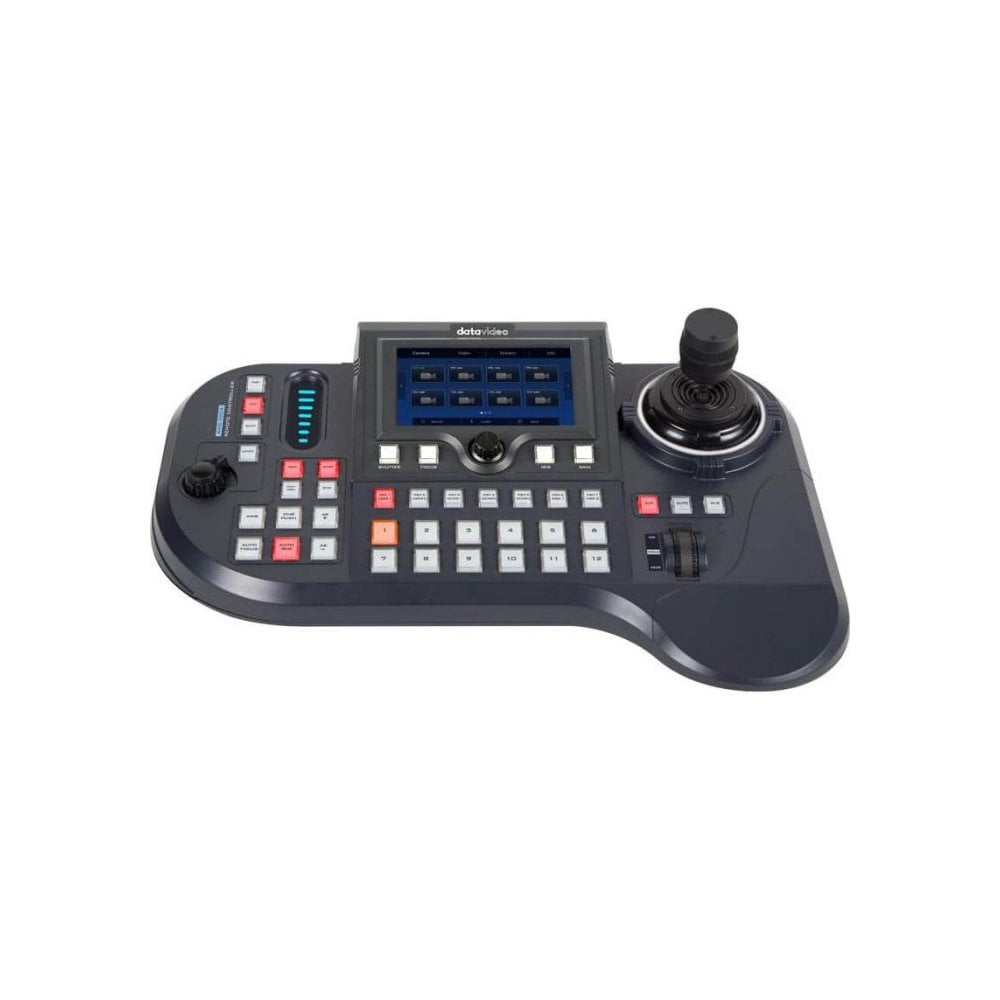

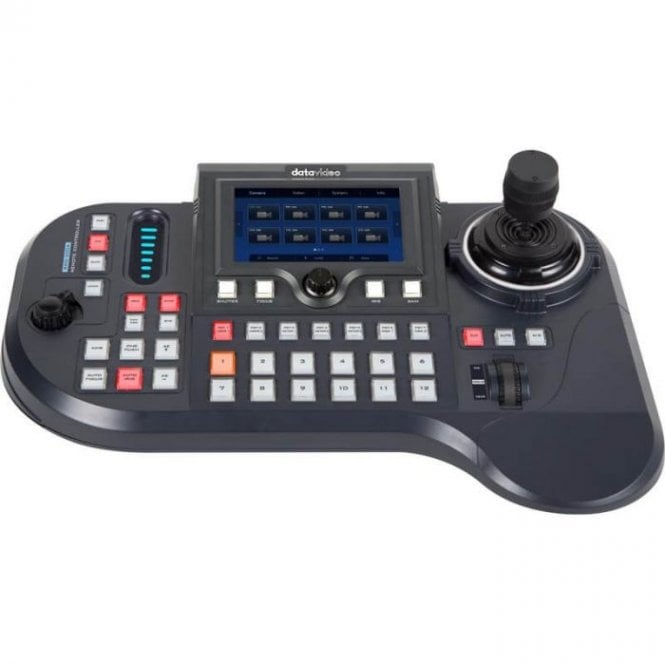

Datavideo RMC-300A multi camera IP controller

Datavideo RMC-300A multi camera IP controller(DATA-RMC300A)

Datavideo RMC-300A is a multi-functional Multi-camera Controller. It can control up to 24 PTZ and block cameras by DVIP or up to 8 cameras by serial RS- 422 transmission. The RMC-300A With the combination of user friendly interface on 5" touch panel and hardware buttons, RMC-300A enables users to manage heavy EFP workflow without haste.

Maximum Camera Control: 24

Present (Position): 7 for each camera

Control Protocol: DVIP, DHCP client

Connection to Cameras: RS-422, Ethernet

Input/Output: USB 2.0 x2, 10/100Mbps Ethernet (RJ-45 connector) x1, RS-422 (RJ-45 connector) x1

Build-in Control Panel: Size: 5"

Resolution: 1280 x 720

Firmware Upgrade: USB 2.0

Dimension: 420 x 294 x 134 mm

Weight: 1.5 kg

Operating Temp. Range: 0°C ~ 40°C (32°F~104°F)

Storage Temperature: - 10°C ~ 60°C (14°F~140°F)

Operating Humidity: 10 % to 80 % (non-condensing)

Power Supply: DC 12V, 19W

In the Box

1x RMC-300A Main Unit

1x DC 12V power adaptor
