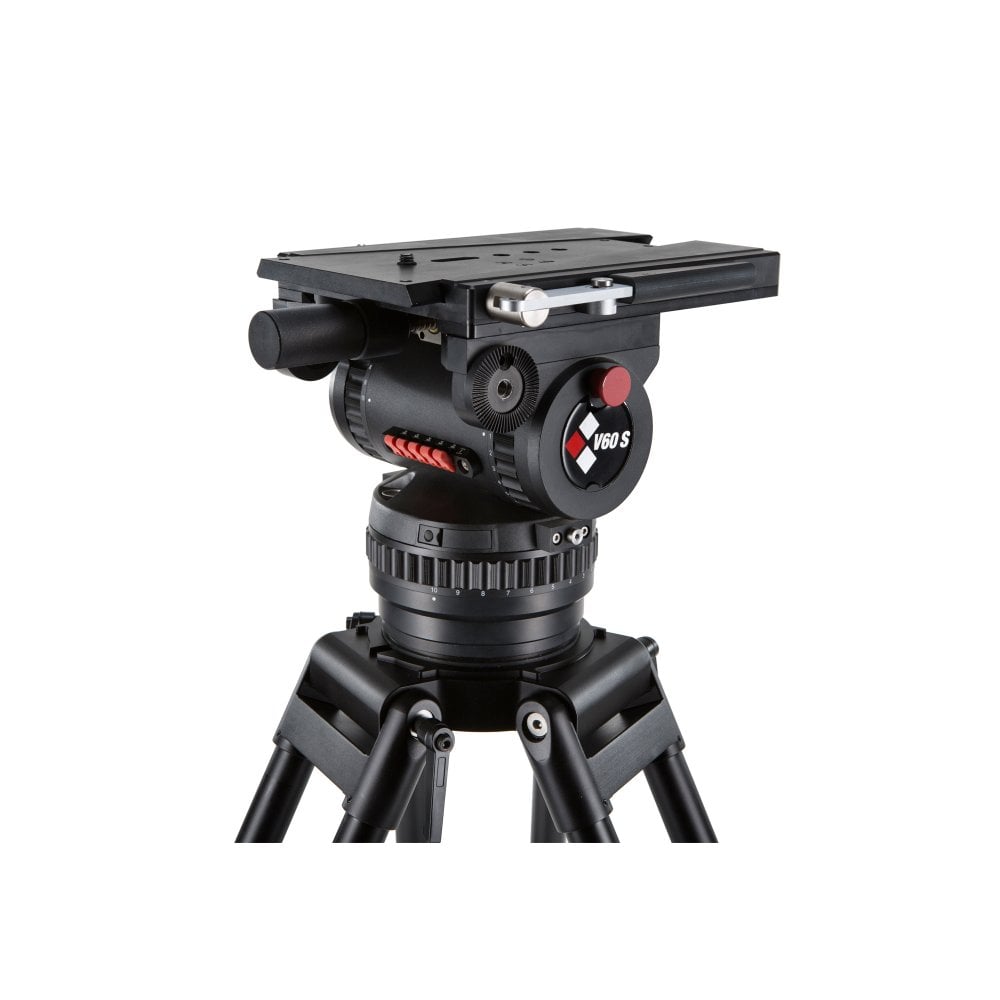

Camgear V60 Studio/OB Fluid Head (4-Bolt Flat Base)

2760.0059 27600059 2760 0059 2760/0059

Selectable 10 positions pan & tilt drag including zero position, offer operators silky smooth movement, precise motion tracking and shake-free shot.

Selectable 10 position counterbalance dial wheel plus center-added 5 more position, thanks to 10+5 counterbalance position system, it can do much finer adjustment for the camera to reach the perfect counterbalance.

Perfect solution for various OB and studio applications.

Its balance plate has a sliding range of up to 180 mm/7.1 in, allowing you to safely balance the camera at any tilt angle.

It has easy-identified, direct-response and vibrationfree pan and tilt brakes.

Equipped with assembly lock mechanism, which ensures safe set-up of equipment.

Specifications

• Model Number: V60 Studio/OB
• Maximum Payload: 60 kg/132 lbs
• Camera Platform Type: V-Plate
• Sliding Range: 180 mm/7.1 in
• Camera Plate: Double 3/8” screw
• Counterbalance System: 15 steps (1-10 & 5 Adjusting levers)
• Pan & Tilt Drag: 10 steps (1-10)
• Pan & Tilt Range: Pan: 360° / Tilt: +90/-75°
• Temperature Range: -40°C to +60°C / -40 to +140°F
• Levelling Bubble: Illuminated Levelling Bubble
• Weight: 15.52 kg/34.2 lbs
• Tripod Fitting: 4-Bolt Flat Base

In The Box

• 1x Camgear V60 Studio/OB Fluid Head (4-Bolt Flat Base)
