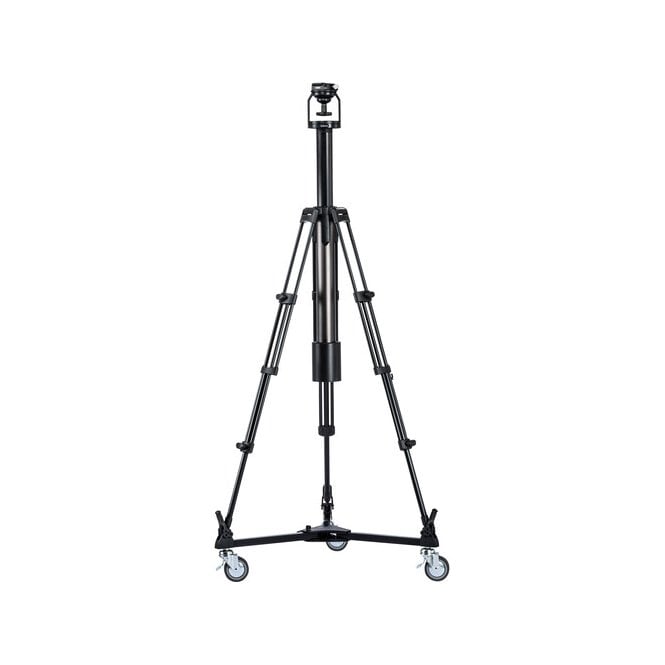

Libec Electric pedestal with Dolly for PTZ cameras

Libec Electric pedestal with Dolly for PTZ cameras(LX-ePed2Studio)

Raise and lower your mounted camera of choice with this LX-ePed 2 Studio Electric Pedestal Column with Standard Dolly from Libec thanks to its handheld controller and working height range of 37.5 to 97.2". Mount a camcorder, PTZ, or other recording device on the tripod using the 1/4"-20 and 3/8"-16 screws on its 100mm ball head and 22 lb load capacity.

LAN ports on both the pedestal column and controller unit allow the devices to communicate using the included LAN cable. The cable features a length of 98.4', allowing you to operate at a distance. The elevation rocker on the controller allows for the intuitive raising and lowering of the tripod's center column up to 15.7". Continuous operation can be performed for three minutes at a time. An optional MPC-1 multi-protocol converter makes the system compatible with PTZ controllers and PC applications for precise adjustment. The included standard dolly provides smooth movement around your studio space, and an AC/DC power adapter provides power.

Load Capacity

22 lb / 10 kg

Adjustable Height Range

43.1 to 103.9" / 1095 to 2640 mm (Manual)

15.7" / 400 mm (Electronic Pedestal)

Folded Length

9.4 x 40.7" / 241 x 1035 mm

Speed

14 to 40 seconds

Inputs/Outputs

Video I/O

1x RJ45 Input/Output ( LAN )

Power

Power Source

AC Adapter with Power Brick

AC Input Power

100 to 240 VAC, 50 / 60 Hz

DC Input Power

12 VDC at 2 A

Power Consumption

24 W

Physical

Mounting

1x 1/4"-20 Screw

1x 3/8"-16 Screw

2x 1/4"-20 Thread

2x 3/8"-16 Thread

1x 100mm Bowl

Color

Black

Operating Conditions

14 to 104°F / -10 to 40°C at 10 to 90% Humidity

Cable Length

98.4' / 30 m (LAN)

9.8' / 3 m (AC/DC Adapter)

Weight

32.8 lb / 14.9 kg

In the Box

Libec Electric pedestal with Dolly for PTZ cameras
