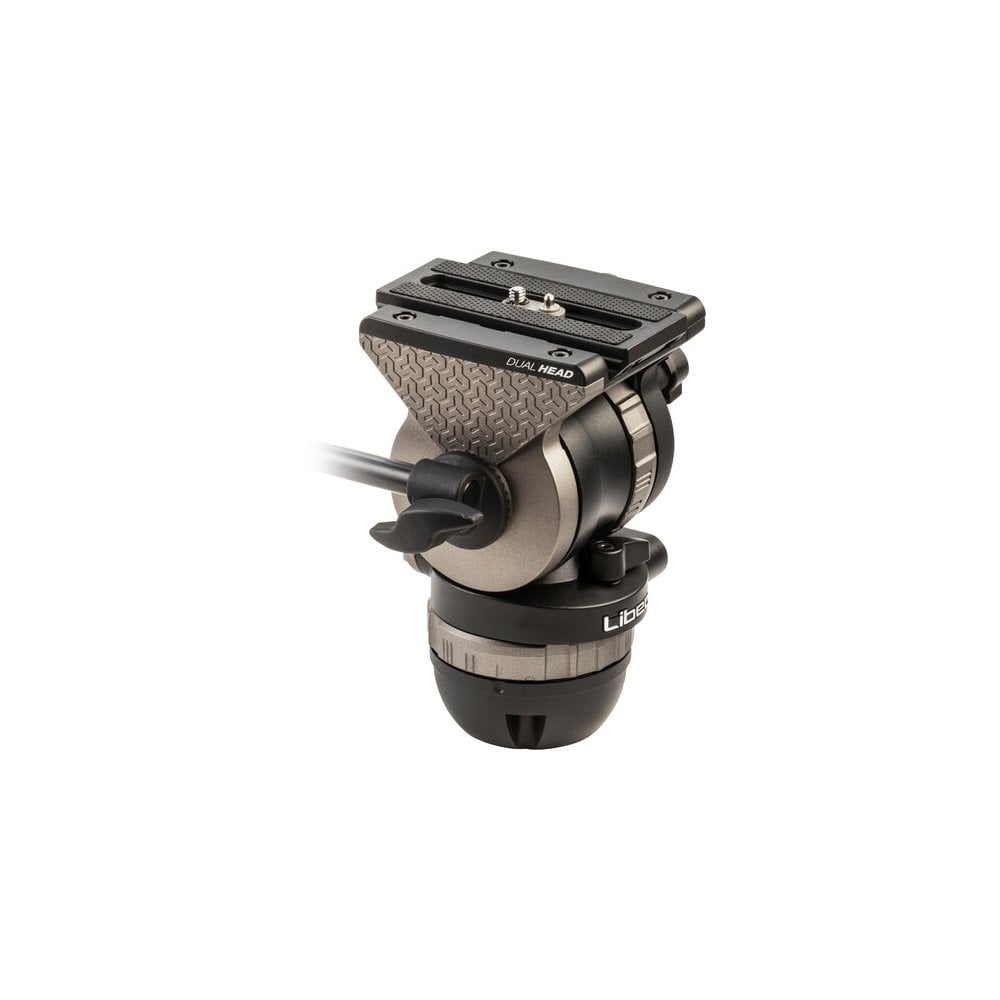

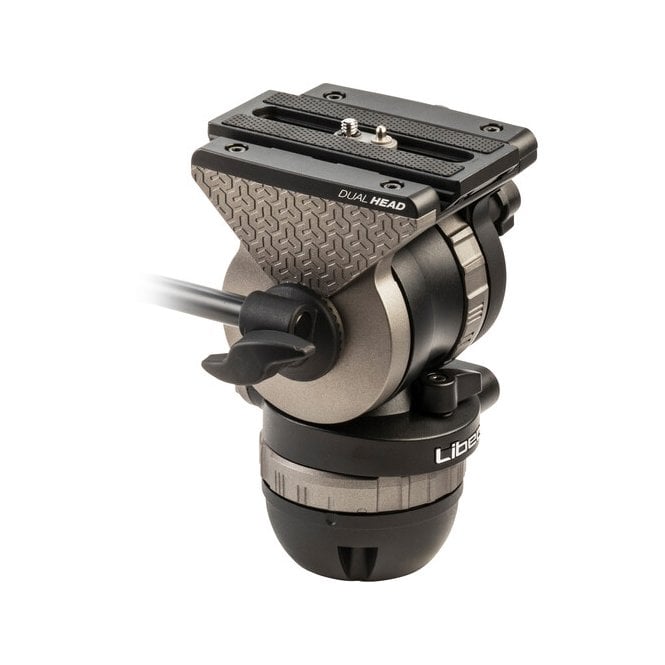

Libec NH30 75mm Ball and Flat Base Video Head

Libec NH30 (NH-30, NH/30, NH_30, NH 30, nh30) 75mm Ball and Flat Base Video Head

User Friendly Accessory Attachments

On the side of the fluid head, there are 1/4 and 3/8 inch screw holes to attach an accessory arm with a monitor or a light. Since the holes are located on the base, the payload capacity, center of gravity and front-rear balance are not affected.

Double-sided Serrations

Serrations are equipped on both sides of the head to accommodate an additional pan handle or other accessories.

Dual Head

Dual-head specification is available for both 75mm bowl and flat base tripods. The Dual-head is also compatible with sliders, skater dollies, and photo tripods.

Snap ON/OFF Sliding Plate

The sliding plate can be attached and released with just one-touch. Easy and smooth settings in the field are easily achieved.

Highly Compatible Sliding Plate

Compatible with the hands-free monopod "TH-M", the electric gimbal "TH-G3", and other brand camera accessories. The sliding plate allows users to quickly swap between a wide range of camera supports.

• Counterbalance Range: 0 to 10kg / 0 to 22lb(C.G.55mm)
• Payload: 10kg / 22lb
• Counterbalance: Multistep Counterbalance
• Counterbalance mode: Free plus 5STEP
• Pan drag mode: Free plus 3STEP
• Tilt drag mode: Free plus 3STEP
• Drag system: Multilayered Metal Structure
• Tilt angle: +90° / -70°
• Temperature range: -40°C to +60°C / -40°F to +140°F
• Bubble level: Illuminated

Camera plate:

• Sliding plate
• Compatible with Manfrotto and Sachtler heads

• Sliding range: +/-30mm / 1.2"
• Head attachment: 75mm ball / Flat base
• Plate attachment: 1/4" screw with video pin
• Accessory attachment: 1/4" and 3/8" screws holes
• Spare screw: 1/4" and 3/8" screws
• Weight: 1.8kg / 4.0lb

In the Box

• Libec NH30 75mm Ball/Flat Base Video Head
• Pan Handle
• Quick Release Plate
• 1/4"-20 Screw
• 3/8"-16 Screw
