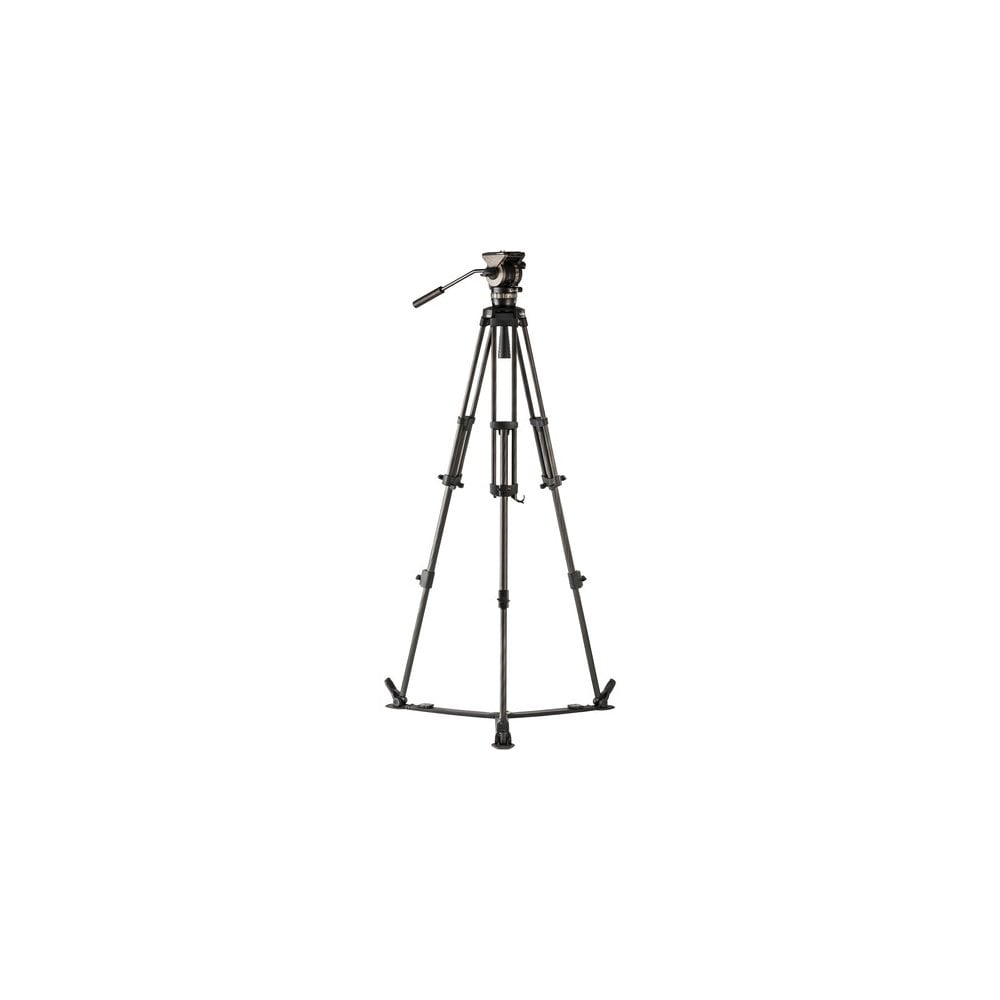

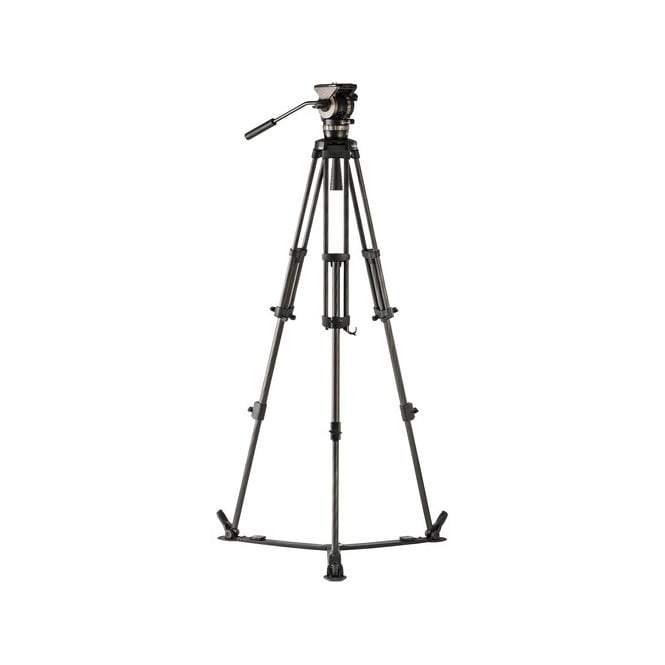

Libec NX-300C Carbon Fiber Tripod System with Floor Spreader

Libec NX-300C (NX/300C, NX_300C, NX300C, NX 300C, nx-300c) Carbon Fiber Tripod System with Floor Spreader

The NX-300C/MC models have an outstanding counterbalance range. These models cover a wide of camera configurations with payloads between 2.5kg and 10kg. The NX-300 Series is a must have tripod system that supports a wide range of rigged small cameras, mid-sized handheld cameras and rigged out professional cinema cameras.

Operability with Precision

Thanks to specially skilled craftsmen in Libec Japan, we adapted an innovative design to maximize NX's performance. As result, a significant reduction in wobbling and backlash in pan and tilt movements is achieved and offers the best precision operability in its range by far.

Newly Designed Multistep Counterbalance Mechanism

The NX series can support a wide range of camera configurations with a newly designed multistep counterbalance system that fits variety of production styles. Users can select from 5 steps of counterbalance including a zero "free" mode option for speedy set-up.

Advanced Drag Unit

The layered metal unit in the drag system ensures operability, durability and reliability. This advanced drag unit offers smoother starts, improved backlash control and more rigidity than a conventional low cost plastic unit commonly adapted by other brands.

Highly Reliable Multistep Drag System

The NX series features the variable 4 step drag pan tilt system that includes a zero "free" mode option with no friction. In addition, the finest silicon grease is applied to ensure ordinary pan and tilt movements at a wide temperature range from -40˚C/-40˚F up to +60˚C/+140˚F.

Newly Designed Carbon Legs, Foot Pads and Spreader

With a new lightweight structure design, the width of the carbon leg's upper pipe leg is widened to enhance torsional rigidity and provide high payload performance. Developed exclusively for the NX series, the FP-1B foot pads and SP-1B floor spreader are available. The newly designed foot pads and floor spreader are even lighter than the existing model FP-2B and SP-2B.

User Friendly Accessory Attachments

On the side of the fluid head, there are 1/4 and 3/8 inch screw holes to attach an accessory arm with a monitor or a light. Since the holes are located on the base, the payload capacity, center of gravity and front-rear balance are not affected.

Double-sided Serrations

Serrations are equipped on both sides of the head to accommodate an additional pan handle or other accessories.

Dual Head

Dual-head specification is available for both 75mm bowl and flat base tripods. The Dual-head is also compatible with sliders, skater dollies, and photo tripods.

Snap ON/OFF Sliding Plate

The sliding plate can be attached and released with just one-touch. Easy and smooth settings in the field are easily achieved.

Highly Compatible Sliding Plate

Compatible with the hands-free monopod "TH-M", the electric gimbal "TH-G3", and other brand camera accessories. The sliding plate allows users to quickly swap between a wide range of camera supports.

LED Bubble Level

The bubble level is equipped with an LED light to level a tripod in the dark.

Safety Design

With safety in mind, the tripod legs are carefully designed to prevent the tripod from collapsing on a user's fingers, even if the tripod is collapsed unintentionally.

Multi-functional Carrying Case

This special carrying case includes a shoulder strap, handles and a zipped pocket.

• Counterbalance Range: 0 to 10kg / 0 to 22lb(C.G.55mm)
• Payload: 10kg / 22lb
• Counterbalance: Multistep Counterbalance
• Counterbalance mode: Free plus 5STEP
• Pan drag mode: Free plus 3STEP
• Tilt drag mode: Free plus 3STEP
• Drag system: Multilayered Metal Structure
• Tilt angle: +90° / -70°
• Temperature range: -40°C to +60°C / -40°F to +140°F
• Bubble level: Illuminated
• Camera plate:
• Sliding plate
• Compatible with Manfrotto and Sachtler heads
• Sliding range: +/-30mm / 1.2"
• Head base: 75mm ball / Flat base
• Plate attachment: 1/4" screw with video pin
• Accessory attachment: 1/4" and 3/8" screws holes
• Spare screw: 1/4" and 3/8" screws
• Weight: 4.1kg / 9.0lb
• Height: 53 to 168cm / 20.8 to 66.1"
• Head attachment: 75mm bowl
• Pipe material: Carbon
• Section: 2STAGE

In the Box

• 1 x NH30 Head
• 1 x RT20C Tripod
• 1 x SP-1B Floor-level Spreader
• 1 x RC-20 Case
