Libec QD-10M Tripod System with Mid-Level Spreader

Libec QD-10M (QD_10M, QD/10M, QD 10M) Tripod System with Mid-Level Spreader

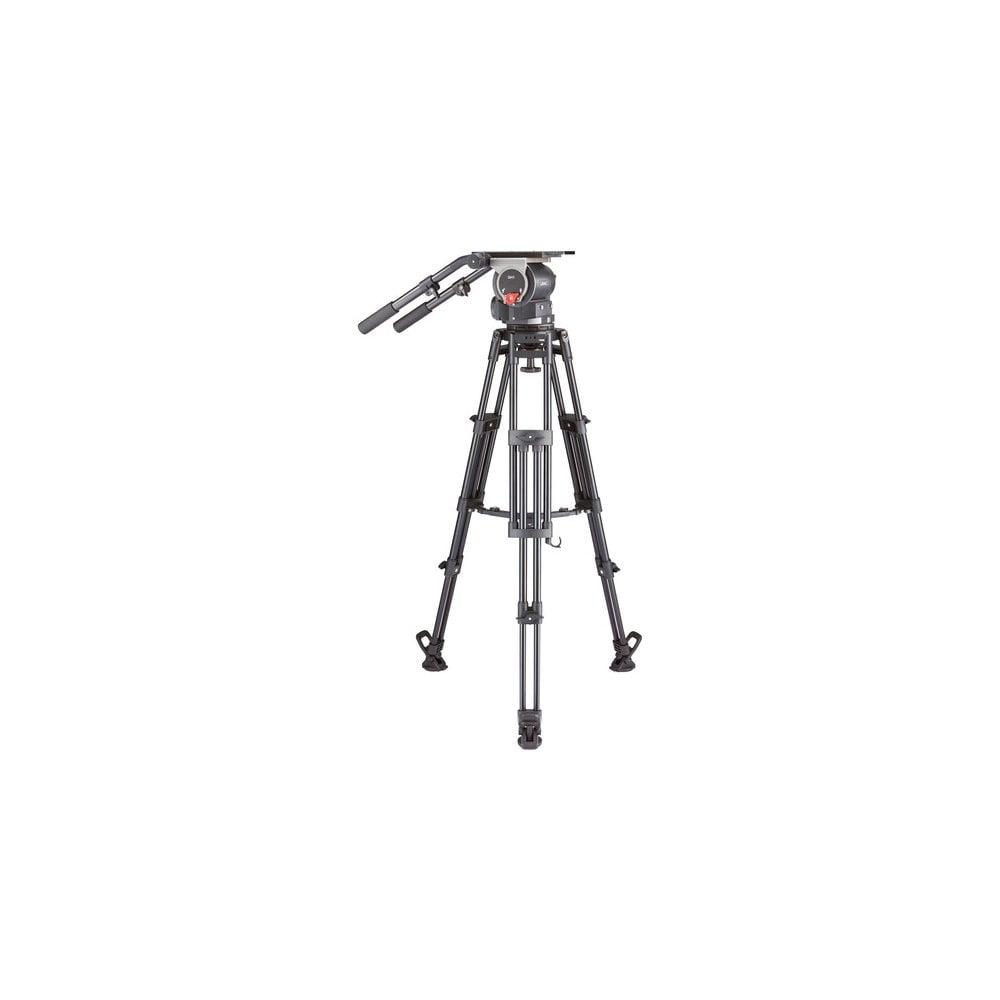

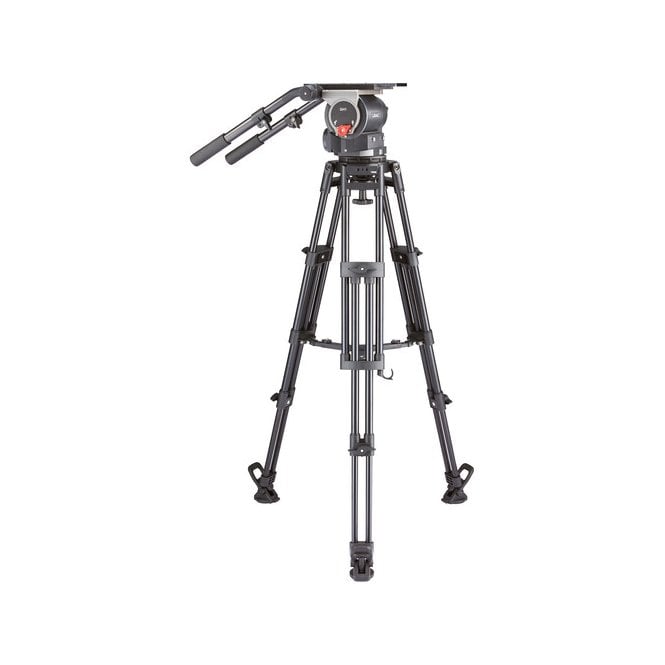

The Libec QD-10M Tripod System features the pedestal-capable QH1 4-bolt flat base fluid head and the T150B 2-stage aluminum tripod. The system is complete with a telescoping mid-level spreader and large rubber foot pads. The QH1 head attaches to the tripod via an included 150mm half-ball adapter and supports up to 88 lb. It has a side-mount camera plate system and comes with two telescoping pan bars. For attaching accessories, the T150B tripod offers a total of six 1/4"-20 and 3/8"-16 mounting threads around the bowl base.

Libec QH1 Fluid Head

The Libec QH1 Fluid Head is a pedestal-capable heavy-duty head supporting up to 88 lb. It features a 4-bolt flat base and comes with a 150mm half ball adapter that secures via four included screws. The QH1 has a side-mount camera plate system and includes a sliding plate with dual 3/8"-16 threaded mounting screws. The head also comes with two 2-piece telescoping pan bars that allow for easier integration of optional zoom controllers. Other features include continuous counterbalance, 7-step drag, independent pan and tilt locks, and an illuminated bubble level.

Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl

The Libec T150B is a heavy-duty set of aluminum tripod legs with a 150mm bowl. It supports up to 220.5 lb and offers a height range of 23 to 64" in two legs stages. Each leg has a twist leg lock knob at each stage. The legs feature spiked feet and come with a plastic cover over them. If you incorporate an optional ground spreader, the legs can be installed into the spreader with these plastic covers on. Compatible spreaders include the SP-15B ground spreader and BR-6B mid-level spreader. Optional rubber food pads are also supported, such as the FP-6B pads.

Multiple 3/8"-16 and 1/4"-20 accessory mount threads are provided on two sides of the tripod, on top near the bowl base. A weight hook is also provided on one of the legs. The T150B is made in Japan. Compatible tripod heads include the Libec QH1 and QH3.

Libec BR-6B Mid-Level Spreader

Quickly set up your tripod as well as add stability with the BR-6B Mid-Level Spreader from Libec. Compatible with the RT40RB, RT50B, RT50C, T102B, and T103B tripods, this telescopic model can extend from 7" to 10.3" to accommodate a wide range of leg angles.

Libec QH1 Fluid Head
Camera Plate

• Camera Plate Features: Sliding Balance Plate
• Camera Mounting Screw: 2 x 3/8"-16 Male
• Balance Plate Sliding Range: 2.95" / 75 mm

Tripod Platform

• Base Mount: 4-Bolt Flat Base

Pan & Tilt

• Drag Control: 7-Step
• Vertical Tilt: +90° to -70°
• Independent Pan Lock: Yes
• Independent Tilt Lock: Yes

Physical

• Material: Aluminum
• Load Capacity: 88 lb / 39.92 kg
• Counter Balance: Continuous (33 to 77 lb / 14.97 to 34.93 kg)
• Center of Gravity: 4.92" / 125 mm
• Bubble Level: 1 x Illuminated
• Operating Temperature: -4 to 140°F / -20 to 60°C
• Weight: 27.9 lb / 12.66 kg

Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs With 150mm Bowl
General

• Head Mount Type: 150 mm Bowl
• Load Capacity: 220.5 lb / 100.02 kg
• Maximum Working Height: 64" / 162.56 cm
• Minimum Working Height: 23" / 58.42 cm
• Materials: Aluminum
• Accessory Mounting: 4 x 3/8"-16 Female Thread, 2 x 1/4"-20 Female Thread
• Weight: 14.5 lb / 6.58 kg

Legs

• Leg Lock Type: Twist Lock
• Leg Sections: 3
• Feet Features: Spiked
• Spreader: (Not Included)

Libec BR-6B Mid-Level Spreader

• Sliding Range: 7.0-10.3" / 17.8-26.2 cm
• Folded Length: 7" / 17.8 cm
• Weight: 0.6 lb / 0.3 kg

Packaging Info

• Package Weight: 0.95 lb
• Box Dimensions (LxWxH): 13.3 x 5.4 x 5.1"

In the Box

• Libec QH1 Fluid Head
• Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl
• Libec BR-6B Mid-Level Spreader
• Libec Large Rubber Foot Pads For T102B And T103B
• Libec Large Rubber Foot Pads For T102B And T103B
