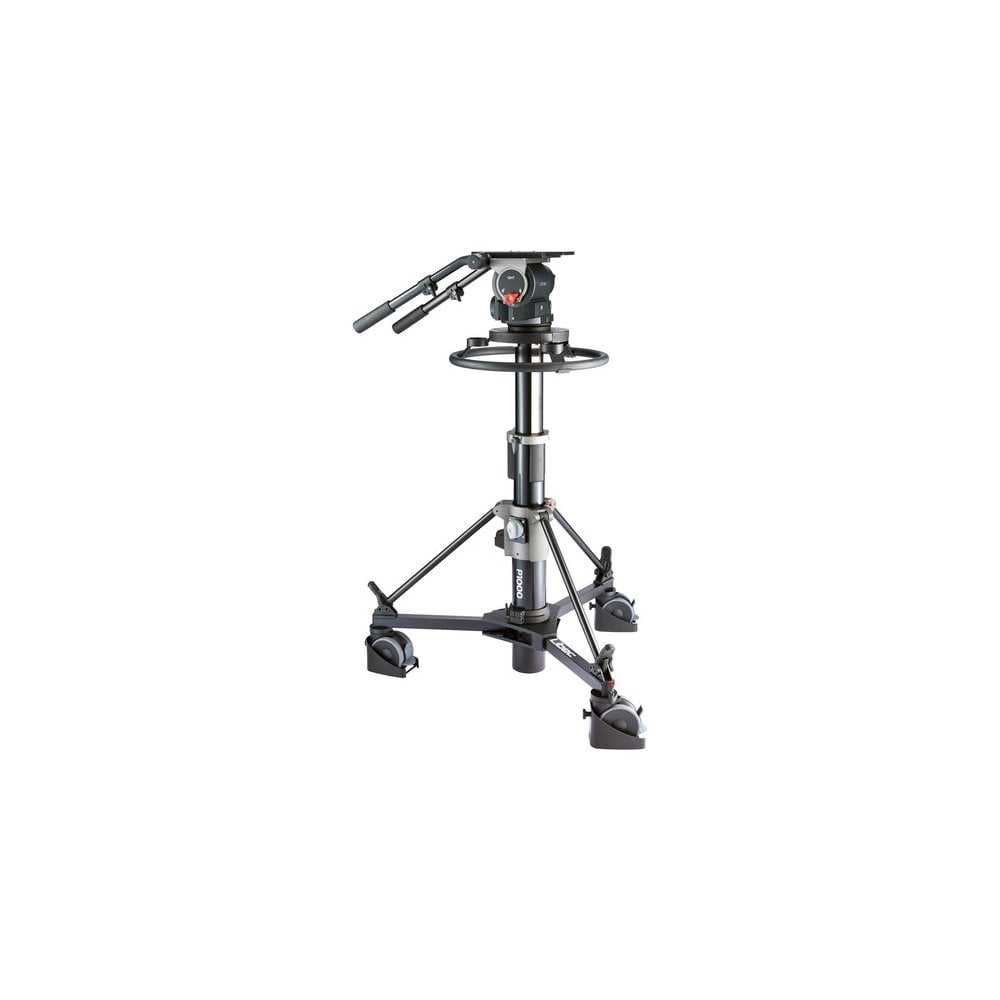

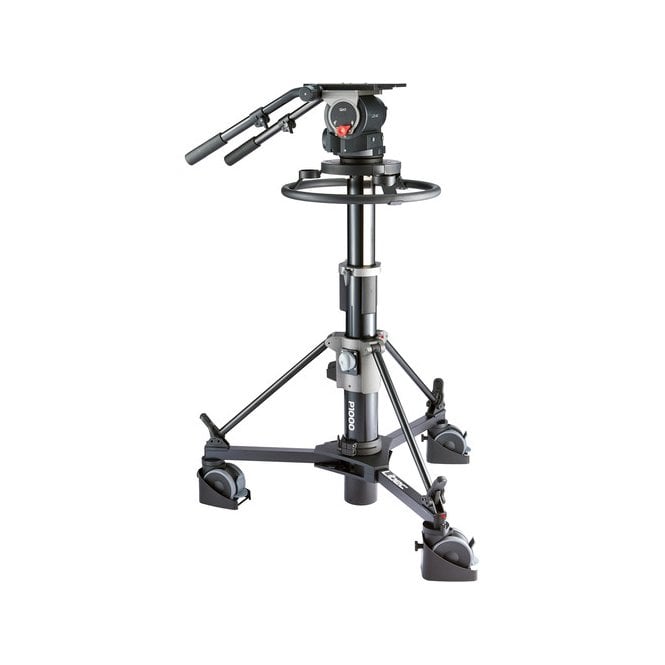

Libec QD-10PD Pedestal System with QH1 Head and P1000 Pedestal

Libec QD-10PD (QD_10PD, QD/10PD, QD 10PD) Pedestal System with QH1 Head and P1000 Pedestal

P1000 Pedestal

• The P1000 is equipped with the tracking locking mechanism and cable guards which come standard with the large-sized double-wheel 125mm casters. The tracking locking mechanism ensures straight-line movement by locking the caster direction, while the cable guards prevent the wheels from running over the cable during studio production.

Flat Base with High Compatibility

• Not only compatible with Libec heads but other brand heads as well. With optional accessories, ball based heads can also be attached on this pedestal.

Easy-read Air Pressure Gauge

• Air pressure can be easily checked with the air pressure meter.

Drag Knob for Upper Column Adjustment

• Upper column friction can be adjusted to preferred settings with the drag knob.

Mid Column with Gas Spring Assist

• The gas spring inside the P1000 pedestal supports the mid column's elevation, allowing safe and easy height adjustments and setups with heavy equipment.

High Performance Casters with Track Lock Mechanism

• Large High performance 125mm casters are equipped along with removable cable guards. The casters has a track lock mechanism which allows users to set and move the dolly in three different modes: Free Mode, Tracking Mode and Steer Mode. The caster's locking sound is minimal.

Easy to Transport Design

• The P1000 can be easily disassembled into the P1000 Column, the steering handle and the dolly. This makes the P1000 easy to transport within studios and outside broadcast sites.

QH-1 Head

Smooth Counterbalance System

• The Smooth Counterbalance System is a unique Libec technology that allows the counterbalance knob to be adjusted with constant motion to smoothly reach the minimum and maximum power range. The foldaway knob is designed for easy speedy adjustments.

Counterbalance Meter

• The counterbalance power level can be easily viewed by looking at the Counterbalance Meter, allowing users to keep an eye on their preferred counterbalance settings.

Center Tilt Lock with High Safety

• For the camera system's safety, the head can be physically locked into a center tilt position. Even at a distance, the arrow shaped knob and Lock / Unlock symbols are visible.

Flat Base and 150mm Ball Base Adapter

• The BL-150 ball base adapter, which converts the flat base head into a 150mm ball head, is included with the kit.

1/4" and 3/8" Screw Holes for Accessory Attachments

• Each side of the tripod has three screw holes for accessory attachments.

New Leg Lock Knob

• Design The newly designed leg lock knob are easy to turn, allowing users to adjust tripod legs quickly and firmly.

QD 10PD System

• Payload: 40kg (88.18 lbs)
• Height: 91.5 to 173cm (36.02 to 68.11")

QH1 Head

• Counterbalance range: 15kg to 35kg (33.07 lbs to 77.16 lbs) (C.G.125mm)
• Payload: 40kg (88.18 lbs)Counterbalance: Continuous
• Drag mode: 7STEP
• Tilt angle: +90 deg. / -70 deg. (MAX +/-40 deg. )
• Temperature range: 20 to 60 deg. C (-4 to 140 deg. F)
• Bubble level: Illuminated
• Camera plate: Sliding plate
• Sliding range: +/-75mm / 2.9"
• Head Attachment: 150mm ball / Flat base with 4 bolts
• Plate attachment: 3/8" screw x2Spare screw3/8" screw x2

P1000 Pedestal

• Payload: 60kg (132.28 lbs) (Including head)
• Column Elevation Mechanism: Upper: Perfect Balance Supported, Low: Gas Spring Assist
• Column: 2STAGE
• Upper Stroke: 41.5cm (16.34")
• Lower Stroke: 39.5cm (15.55")
• Stroke Range: 81cm (31.89")
• Head Attachment: Flat Base with 4 bolts
• Steering Handle: Detachable steering handle
• Pressure Adjustment: Air Pressure (Standard Air Pump Equipped)
• Kick Ring: Available (Optional)Height68 to 149cm (26.77 to 58.66")

General

• Weight: P1000 Pedestal: 26.3kg (57.98 lbs), QH1 Head: 12.7kg (28.00 lbs), Q10PD System: 39.0kg (85.98 lbs)

In the Box

• Libec P1000 Pedestal
• QH1 Head
